Wolfcraft Clamping And Machine Table Master 750 Ergo

Online Only - Free Delivery

Whether it is used as a clamping table or as a machine table, wolfcraft's MASTER 750 ERGO provides an ergonomic design, safety and versatility at work. It can be height-adjusted to find the right height to work comfortably.

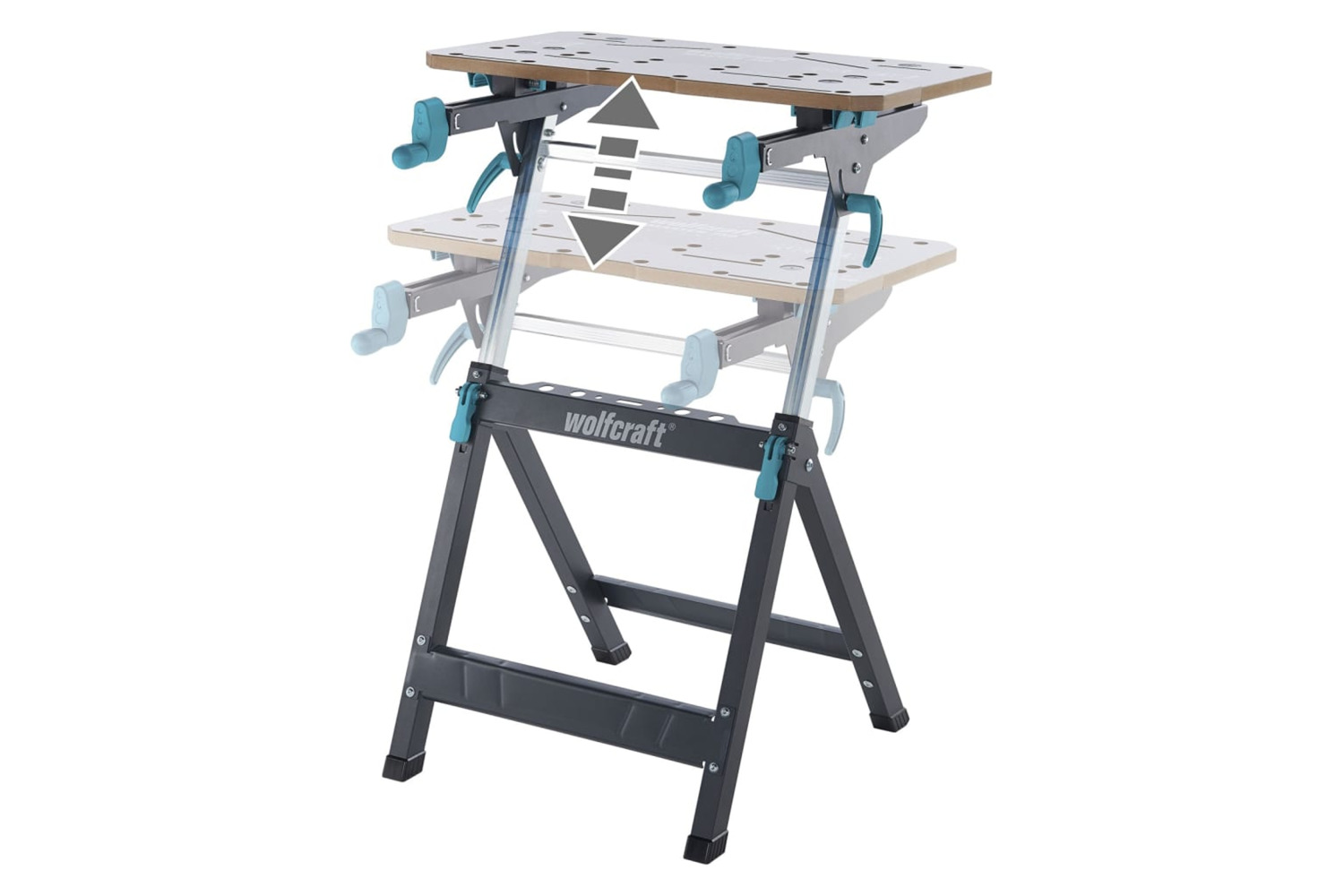

• Height adjustable in 6 steps: The table can be height-adjusted between six different levels in the range of 725-950 mm to find your individual height for working comfortably without strain on your back.
• Quick adjuster. You can unlock the quick adjuster by pulling the levers at the left and right underneath the tabletop and move the front tabletop closer to the workpiece quickly and conveniently. Now just turn the cranks 2-3 times to safely and securely clamp the workpiece.

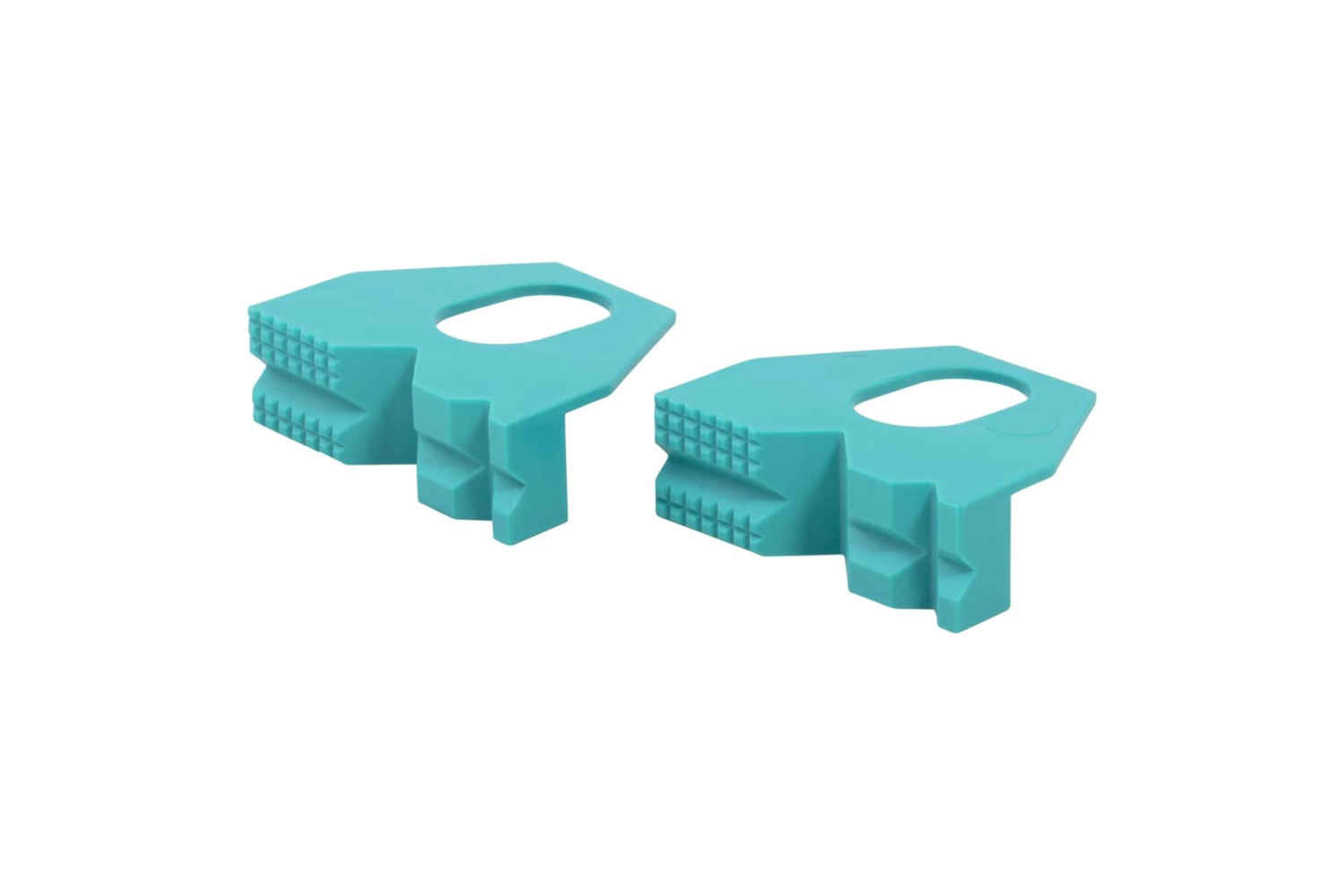

• Supplied large plastic clamping jaws: The clamping jaws are equipped with a reversible painting tip that makes it easy to paint workpieces and saves you time. If you want to raise the workpiece, use the side that is equipped with the support pin with anti-slip support.
• Stable design: The sturdy base frame made of excellent tubular steel has a quick-folding system for flexible transport and space-saving storage. Thanks to the anti-slip rubber pads under the feet, you can safely lean the table against the wall in its folded state.
• Easy to assemble: The basic elements of the MASTER 750 ERGO are pre-assembled in order to make getting it ready for use shortly after delivery an easy and fast process.

• Colour: Grey, green and black
• Material: Metal and plastic
• Dimensions: 68 x 70 x 95 cm (W x D x H)
• Dimensions (folded): 97 x 68 x 19 cm (L x W x H)
• Worktop size: 68 x 39/52 cm (L x W)
• Adjustable working height: Between 72.5 and 95 cm
• Height adjustment in 6 steps
• Vertical clamping of work-pieces: Up to a width of 110 mm
• Horizontal clamping width: Max.130 mm
• Horizontal clamping width (with clamping jaws): Max. 425 mm

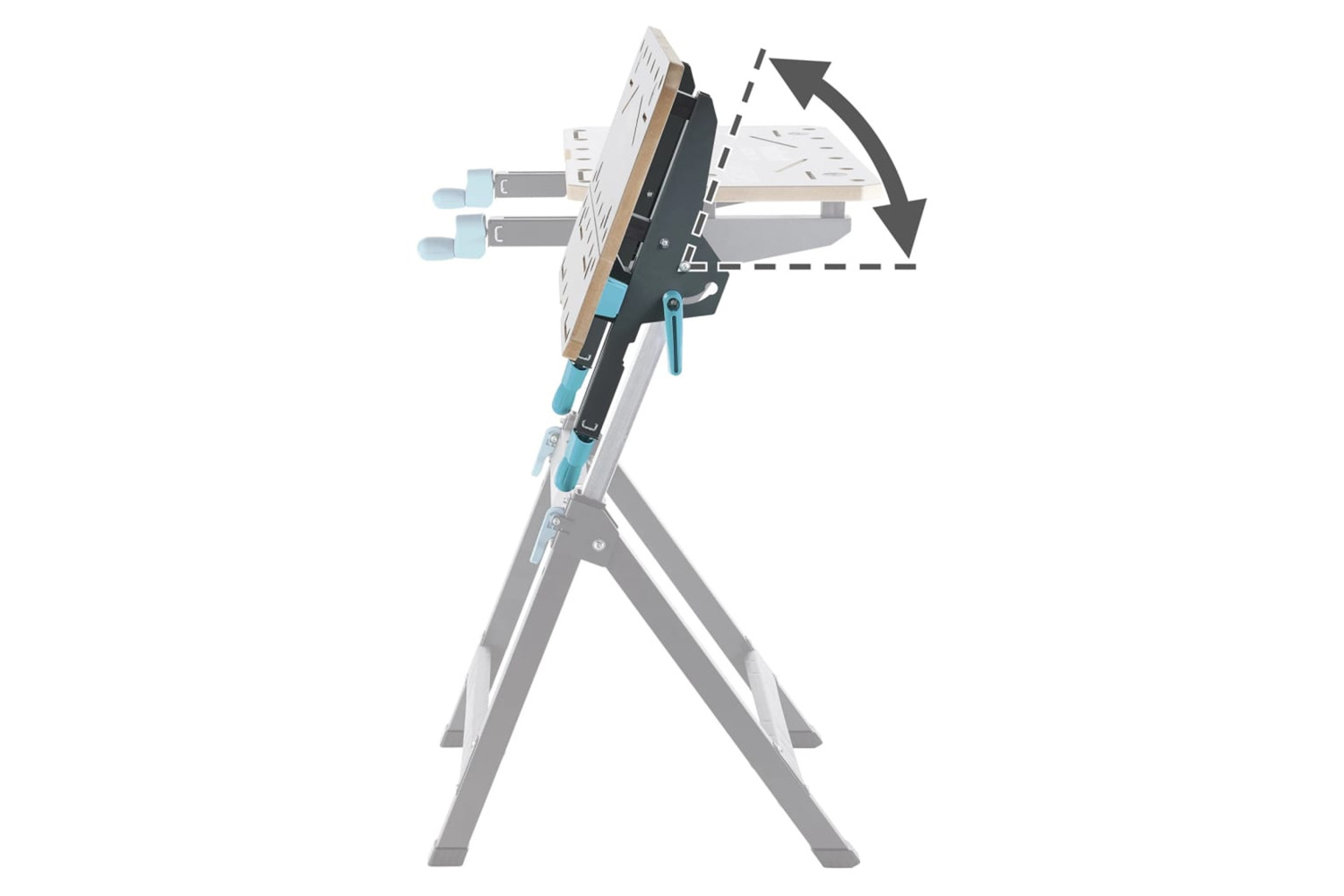

• Tiltable worktop angle: Max. 60°
• MDF table plate material with chamfered edges
• Made of sturdy tubular steel
• Max. load capacity: 125 kg
• Snap-in points and lockable extension for added safety
• Quick adjuster of the front tabletop

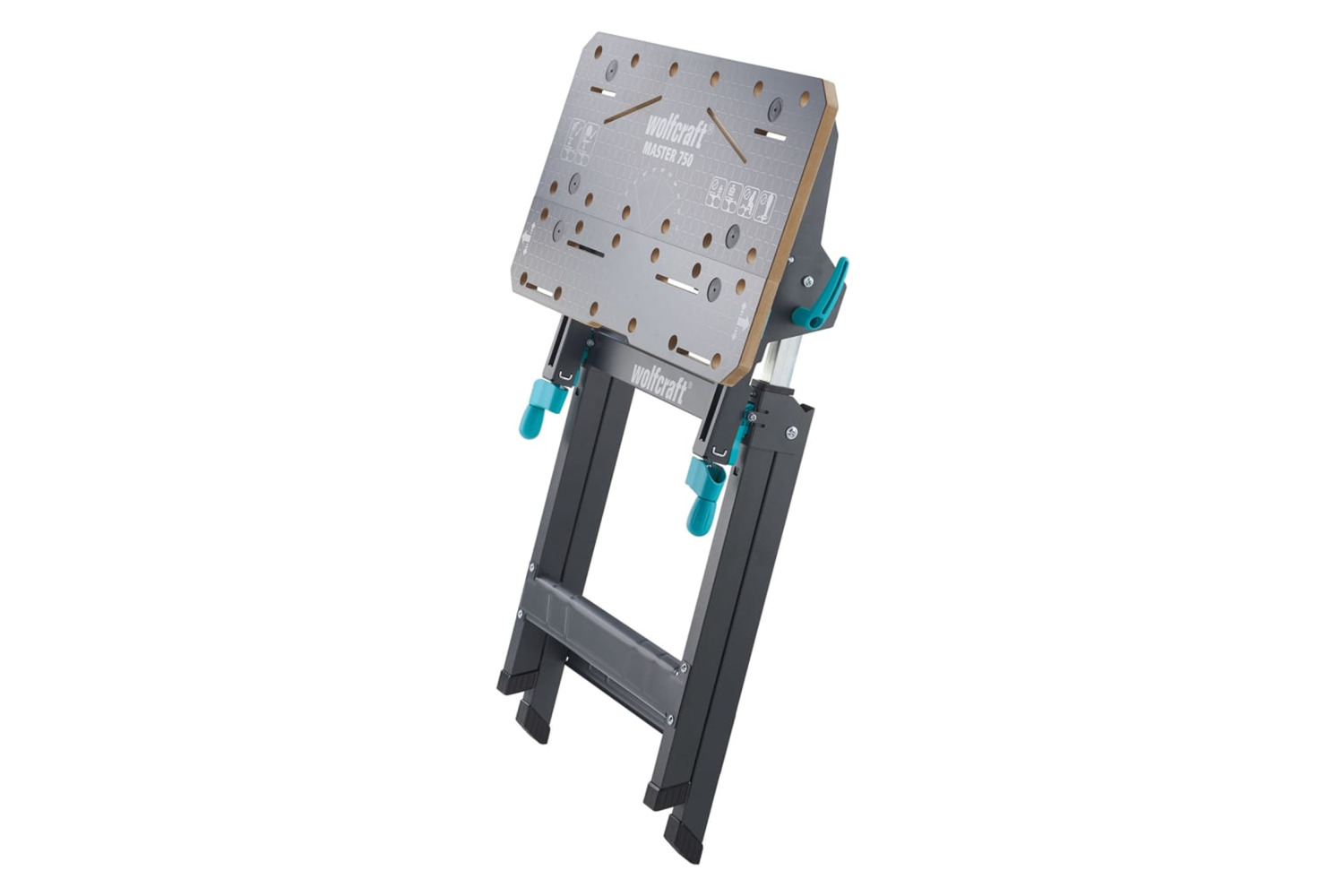

• Quick-folding function for space-saving storage and transport
• Chamfered carrying recess
• Oval, smooth aluminium bar (for convenient transport)
• Tool ledge with holders (for storing the plastic clamping jaws or other tools)
• Feet with non-slip rubber pads
• Pre-assembled base elements
• Easy to assemble
• Weight: 13.2 kg
• Delivery contains:
• 4 x Plastic jaw with non-slip supports (for clamping work-pieces horizontally)
• 2 x Pipe clamp (or holding round material)

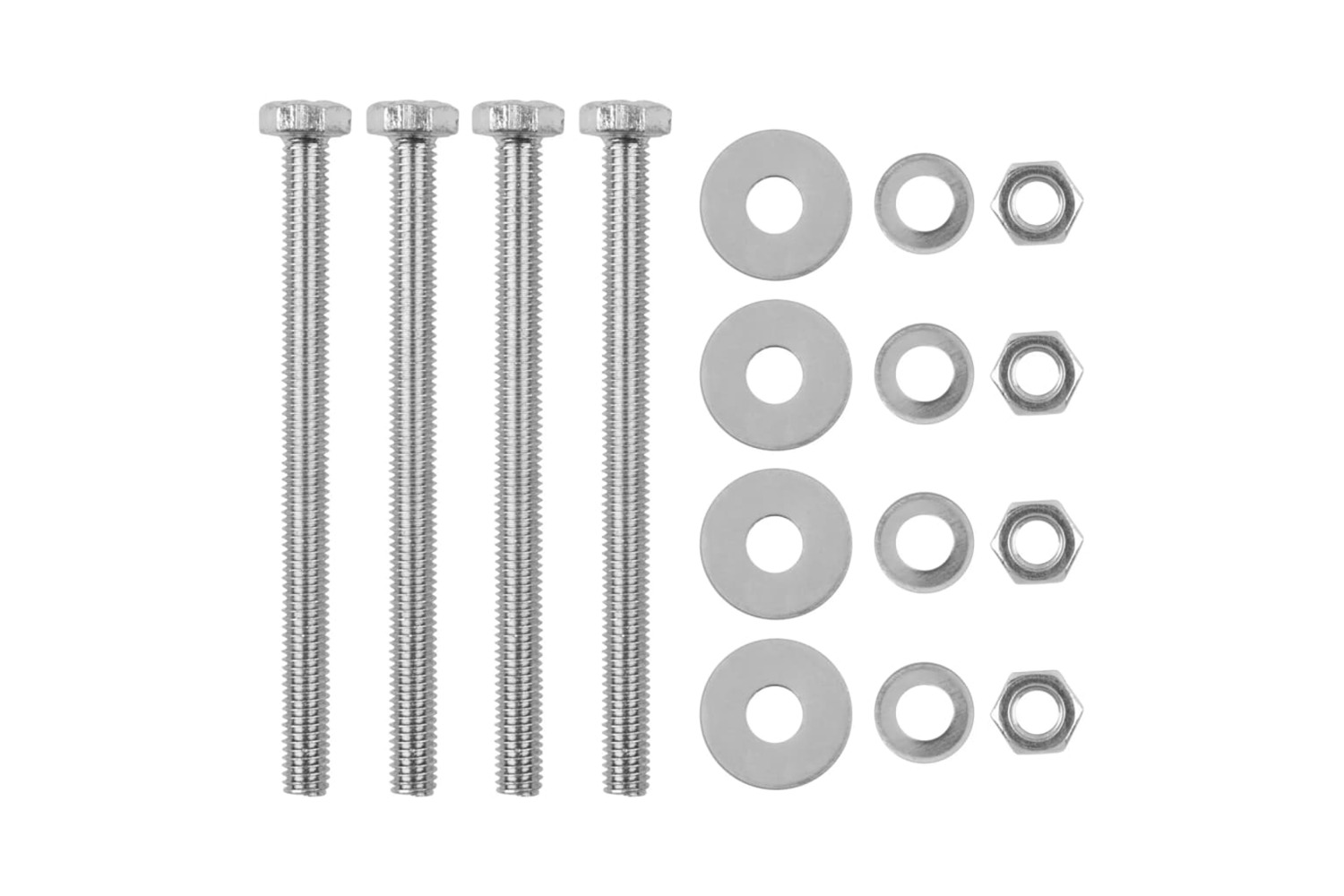

• Fastening material (for mounting stationary devices)
• 1 x MASTER 750 ERGO clamping and machine table

SAFETY GENERAL SAFETY INFORMATION WARNING Disregarding the safety information and instructions leads to risk of injury! Failure to comply with safety information and instructions can lead to electric shock, fire and/or serious injury. a) By following the safety information and instructions provided in these operating instructions, personal injury and property damage can be prevented when working at or with the product. b) Before starting any work, read the operating instructions, in particular the Safety chapter and the respective safety instructions. It is important to understand the information that has been read. Always obey the following safety instructions: – Assemble the working table correctly and check that all the handle screws and screw joints are tight before beginning work. Correct assembly ensures that the table does not fold up and the table top does not tilt unintentionally. – Never use your working table improperly or for an unintended purpose! Any use other than the intended use can lead to hazardous situations. – Keep your work area clean and remove all unnecessary items from the working table. Clutter on the work area can cause accidents. – Make sure that your hands do not get caught in the folding, sliding or tilting parts of the working table. Risk of injury. – Never work with a defective working table! – Clamp the workpiece to be processed firmly! It is safer to hold a workpiece in place with clamping jaws or other clamping devices than with your hand. – Make sure that all screws and handle screws are tight during transport. – Place the working table on a firm, level and horizontal surface. If the working table can slip or wobble, the workpiece or power tool cannot be controlled evenly and safely. – Make sure that both eccentric levers are always tightened so that the height of the table cannot change. – Set up the working table correctly before mounting the power tool. – Fasten the power tool securely on the working table before using it. If the power tool slips on the working table, this can lead to loss of control. – Make sure that the power tool is mounted centrally on the working table. If the power tool is not centred on the working table, this can mean the centre of gravity of the power tool does not align with the centre of gravity of the working table, so that the table can tip over. – Make sure that long workpieces do bring the working table out of balance. Long workpieces must be supported at the free end. – Wear suitable personal protective equipment: ear protection, safety goggles, dust mask if the work generates dust, protective gloves when working with rough materials and when changing tools. – Do not store the working table outdoors or in a damp environment. There is a risk of corrosion and the worktop may warp. – Make sure to follow the instructions and safety information supplied in the original operating manual for the power tool used. The machines used must comply with DIN EN 62841-1 or DIN EN 60745-1. Devices manufactured after 1995 must bear a CE mark.
