Description
See Better Cook Better
Your kitchen deserves the best in lighting design. Our hoods with LED Lighting not only look good, they help you focus, whatever you’re cooking.
Canopy Hood: Designed to Fit Neatly Under an Overhead Unit or
Cabinet. They're Discreet and Effectively Use Valuable Space
- Intensive speed setting: increases the extraction rate when the steam gets intense
- LED Lighting – Clear illumination while you cook.
- High extraction rate - for continuously clean air in the kitchen.
Technical Specification:
- Type of appliance width: 70 cm
- Color body: Stainless steel
- Installation typology: Built-in
- Operating Mode: Convertible
- Total power of the motors: 275 W
- Type of control setting devices: LED, Low-lift pushbuttons
- Maximum output air extraction: 630 m³/h
- Boost position air extraction: 730 m³/h
- Sound power at max. speed (2010/30/EC): 66 dB
- Sound power boost (2010/30/EC): 69 dB
- Maximum output recirculating air: 571 m³/h
- Boost position output recirculating: 664 m³/h
- Sound power at max. speed (recirculation): 72 dB
- Sound power boost (recirculation): 75 dB
- Grease filter material: Washable aluminium
- Energy efficiency rating: C
- Total annual energy consumption: 104.2 kWh/annum
- Boost position: Yes
- Type of lamps used: LED
- Number of lights: 2
- Total power of the lamps: 2 W
- Total luminance: 244 lux
- Color temperature: Cold white (4.000 K)
- Average illumination of the lighting system on the cooking surface E_middle(2009/125/EC): 244 lux
- Connection Rating: 277 W
- Fuse protection : 3 A
- Voltage: 220-240 V
- Frequency: 50 Hz
- Plug type: GB plug

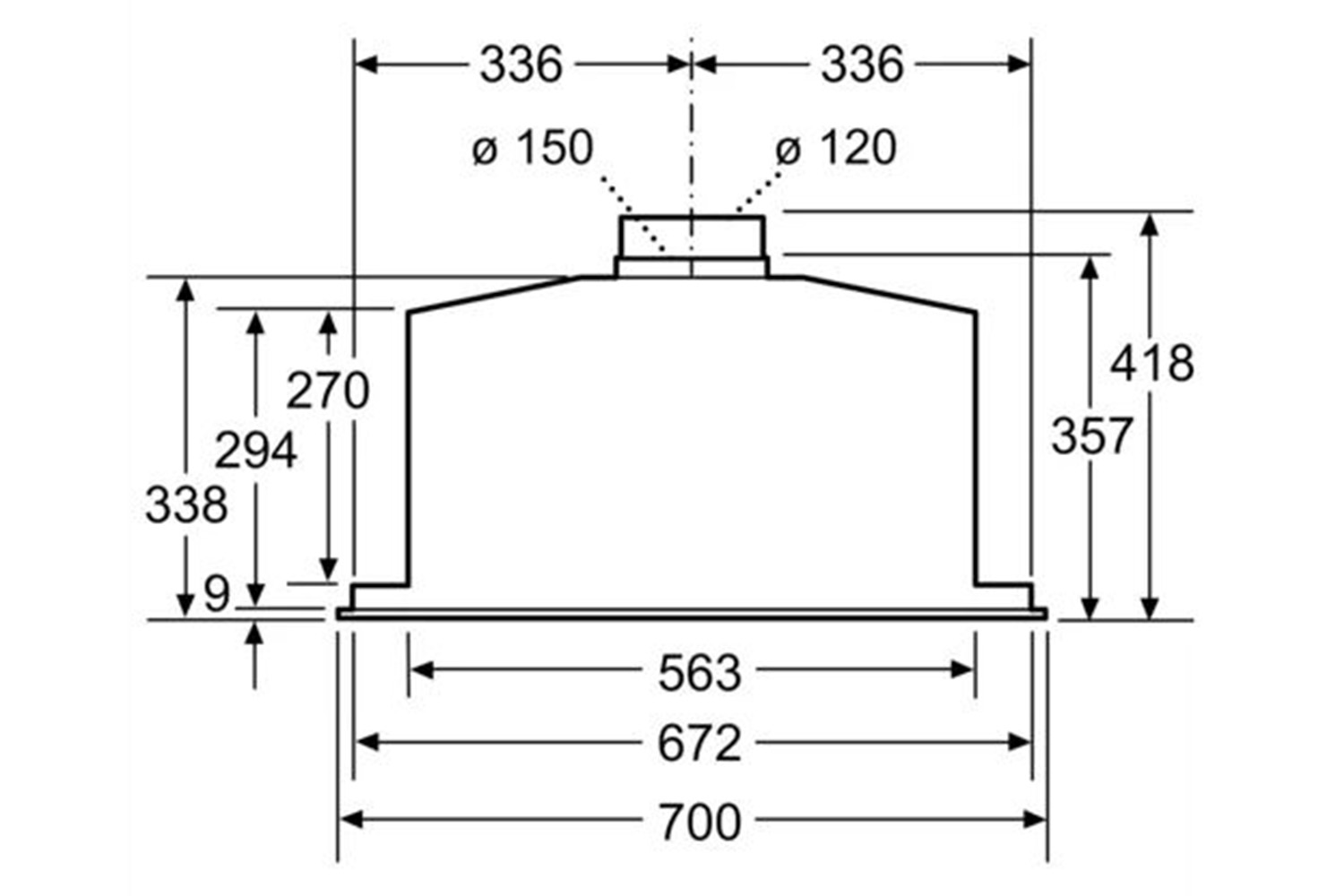

Dimensions:
- Height without worktop / build under: 418-418/418-418 mm
- Appliance Width: 700 mm
- Depth: 300 mm
- Minimum distance above an electric hob: 500 mm
- Minimum distance above a gas hob: 650 mm
- Diameter of air outlet: 120 / 150 mm
- No-return airflow flap: Yes
- Length electrical supply cord: 150 cm
- Net weight: 9.1 kg
- Appliance height exhaust air max: 418 mm
- Appliance height exhaust air min: 418 mm
- Appliance height recirculating max: 418 mm
- Appliance height recirculating min: 418 mm
- Minimum width for installation: 676 mm
- Maximum width for installation: 676 mm
- Depth for installation: 264 mm
Design:
- Stainless steel
- Canopy hood
- Standard design
- Soft touch control
- Electronic controls
Performance/Technical Information:
- Suitable for ducted extraction and recirculation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Twin channel high performance fan motor
- In recirculation operation chimless use possible
- Extraction rate according to EN 61591 ø 15 cm:max. Normal use 630 m³/hIntensive 730 m³/h
- Power rating: 277 W
- Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 66 dB (A) re 1pW
- Noise max. Normal Level: 66 dB*
- With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:Extraction rate in recirculation mode:Max. normal use: 571 m³/hIntensive: 664 m³/hNoise level in recirculation mode:Max. normal use: 72 dB(A) re 1 pWIntensive: 75 dB(A) re 1 pW
- Light Intensity: 244 lux
- Colour Temperature: 4000 K
- Electrical cable length 1.5 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 418-418 x 700 x 300 mm
- Dimensions recirculating (HxWxD): 418-418 x 700 x 300 mm
- Energy Efficiency Class: C (at a range of energy efficiency classes from A+++ to D)
- Blower Efficiency Class: C*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: D*
- Average Energy Consumption: 104.2 kWh/year*
* In accordance with the EU-Regulation No 65/2014
Optional Accessories:
- Recirculating kit Z5135X1
- Max. extraction rate: 730 m3/h
- Dimensions (HxWxD): 418 x 700 x 300 mm
Product Features:
- LED display
- 2 x 1W LED lights
- 2 metal grease filter cassettes
- Stainless steel filter cover, metal grease filter
- 3 speeds plus intensive
- Automatic intensive revert (6mins)
- Rim ventilation
