Description
Superior Energy Efficiency

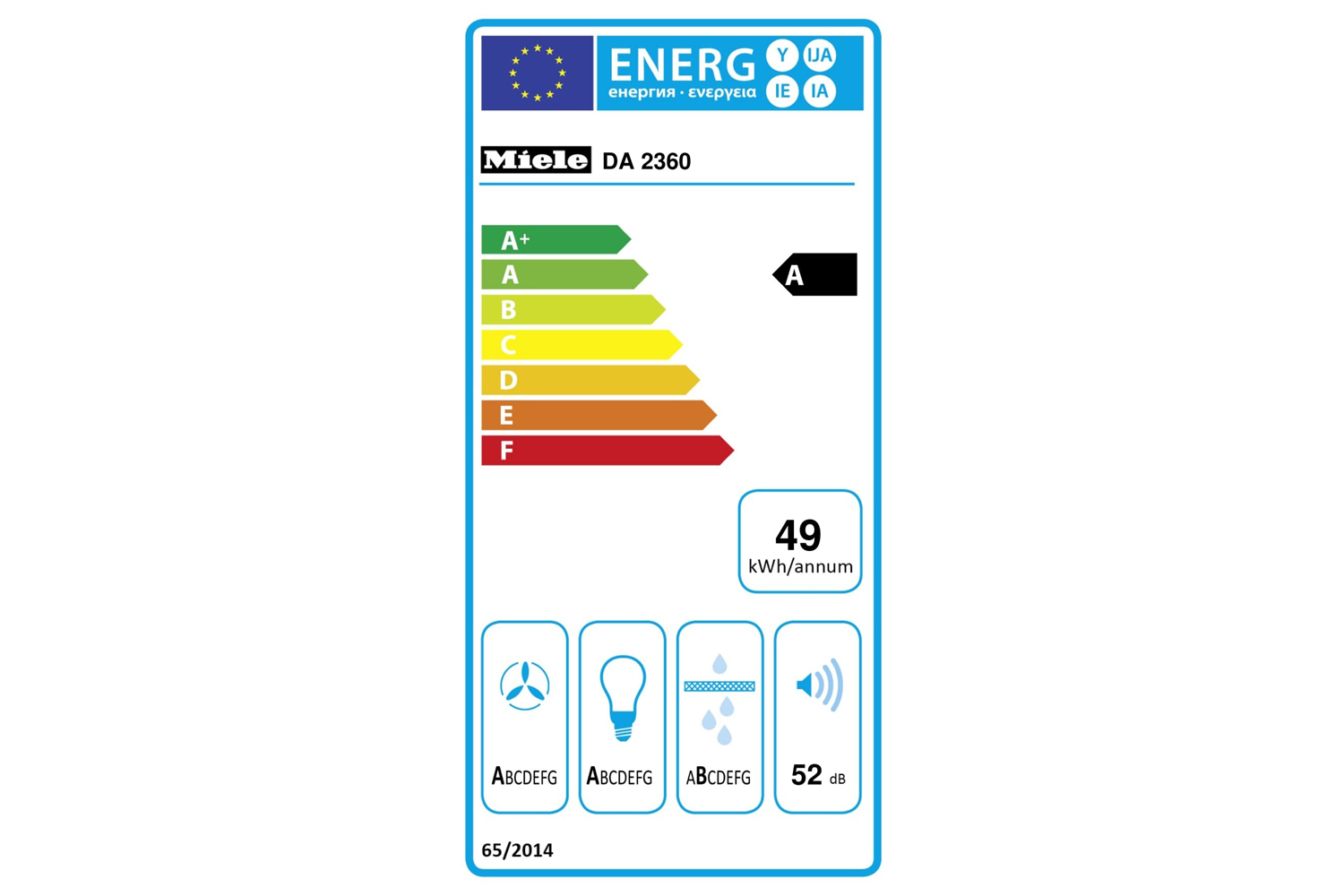

Everything at a glance: The energy label informs you about efficiency and capacity.
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Stainless Steel Grease Filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Active Airclean Filter
Efficient odour absorption: the disposable filter with active charcoal must be replaced regularly.
Handcrafted in Germany
Know-how and craftsmanship: All our knowledge is poured into every cooker hood, from development to production.
Safety Switch-Off
Sensible, even in case of operating errors: the cooker hood will switch itself off automatically after 10 operating hours.

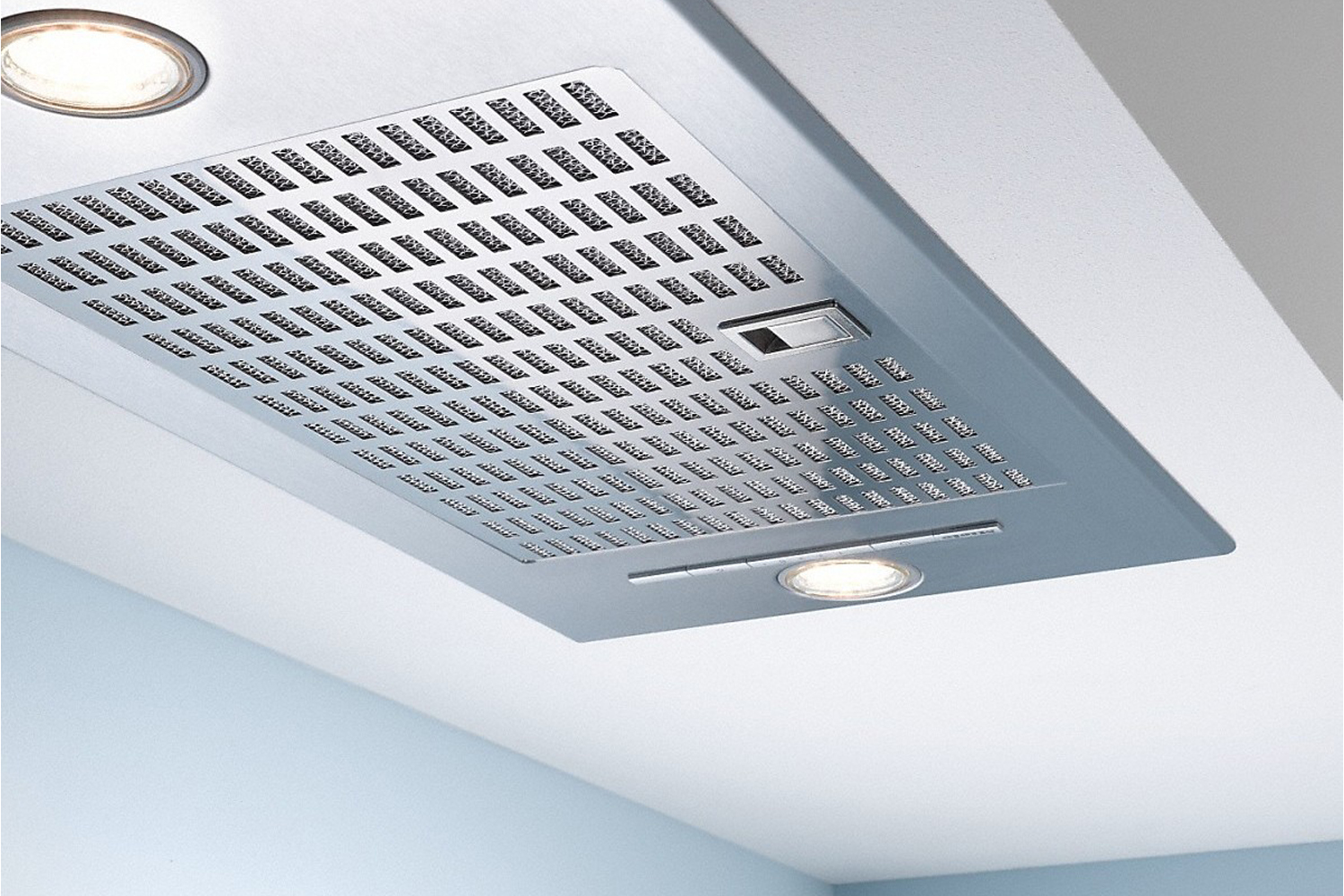

Customised Kitchen Design
fully integrated in 584mm width.
Space Saving
suitable for narrow wall units over 30 cm deep.
Powerful
600m3/h on the booster setting.
Stainless Steel Grease Filters (10-Layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Miele Cleancover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Air Throughput with Max. Duct Diameter in Extraction Mode (Not for External Version)
- Air throughput in Level 1 (m³/h): 250
- Air throughput in Level 2 (m³/h): 300
- Air throughput in Level 3 (m³/h): 360
- Air throughput in Booster level (m³/h): 600
- Sound power in Level 1 (dB(A) re 1 pW): 47
- Sound power in Level 2 (dB(A) re 1 pW): 48
- Sound power in Level 3 (dB(A) re 1 pW): 52
- Sound power in Booster level (dB(A) re 1 pW): 64
- Sound pressure in Level 1 (dB(A) re 20 µPa): 31
- Sound pressure in Level 2 (dB(A) re 20 µPa): 34
- Sound pressure in Level 3 (dB(A) re 20 µPa): 38
- Sound pressure in Booster level (dB(A) re 20 µPa): 50
Air Throughput in Recirculation Mode
- Air throughput in Level 1 (m³/h): 190
- Air throughput in Level 2 (m³/h):250
- Air throughput in Level 3 (m³/h): 320
- Air throughput in Booster level (m³/h): 500
- Sound power in Level 1 (dB(A) re 1 pW): 54
- Sound power in Level 2 (dB(A) re 1 pW): 60
- Sound power in Level 3 (dB(A) re 1 pW): 64
- Sound power in Booster level (dB(A) re 1 pW): 72
- Sound pressure in Level 1 (dB(A) re 20 µPa): 39
- Sound pressure in Level 2 (dB(A) re 20 µPa): 45
- Sound pressure in Level 3 (dB(A) re 20 µPa): 49
- Sound power in Booster level (dB(A) re 1 pW): 57
Product Features:
- Integrated extractor
- Type of air guide: Convertible

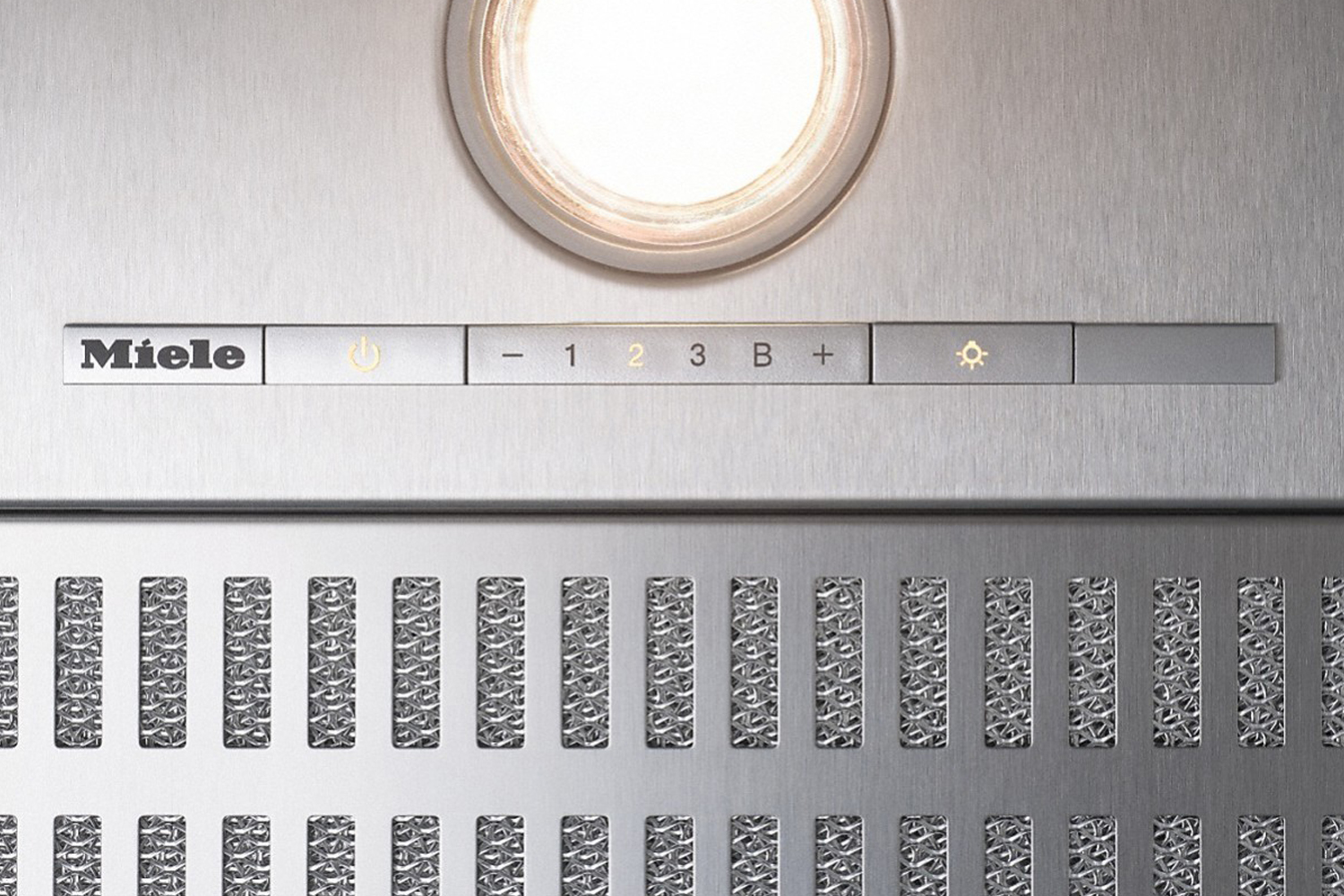

- Electronic controls
- Light-touch controls
- Power levels (number without Booster level)
- Booster level
- Easy-to-clean canopy interior clean cover
- Annual energy consumption in kWh/year: 49.1
- Number x W: 2 x 3 W
- Light intensity in Lx: 350
- Colour temperature in K: 3.000
- Total rated load in kW: 0.23
- Voltage in V: 230
- Fuse rating in A: 10
- Frequency in Hz: 50
