Description
Enjoy Wi-Fi on 4G LTE
300 Mbps Wireless N 4G LTE Router
No Configuration Needed Simply Plug and Play!

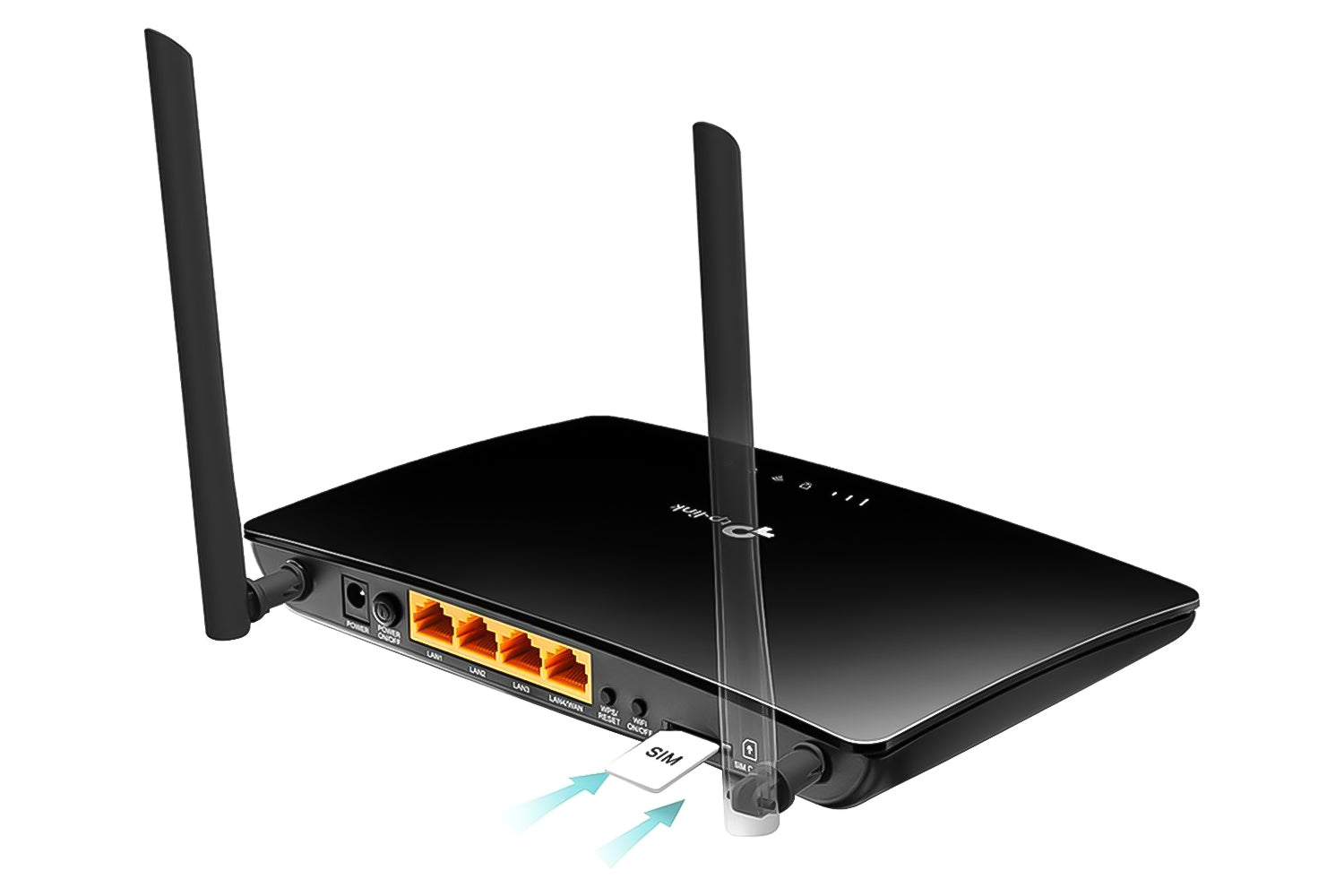

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a SIM card and turn on the TL-MR6400. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Share Your 4G LTE Network
Take full of advantage of your cutting-edge 4G LTE network, which can achieve download speeds of up to 150 Mbps. The TL-MR6400 shares your 4G LTE network with multiple Wi-Fi devices, so you can enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.
Wi-Fi Where You Need It
The TL-MR6400 offers unmatched convenience and versatility. Whether you’re at home or working in a remote location, theTL-MR6400 is the perfect solution. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments.From the exhibition centre to the RV, the TL-MR6400 always has you covered.
Internet Access For Up to 32 Devices Simultaneously
The TL-MR6400 can easily share a 3G/4G connection with up to 32 wireless devices, such as tablets, laptops and mobile phones at the same time. The LAN ports are also ready to provide internet for wired devices like desktop computers.
Easy Management
Set up the TL-MR6400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
Hardware Features:

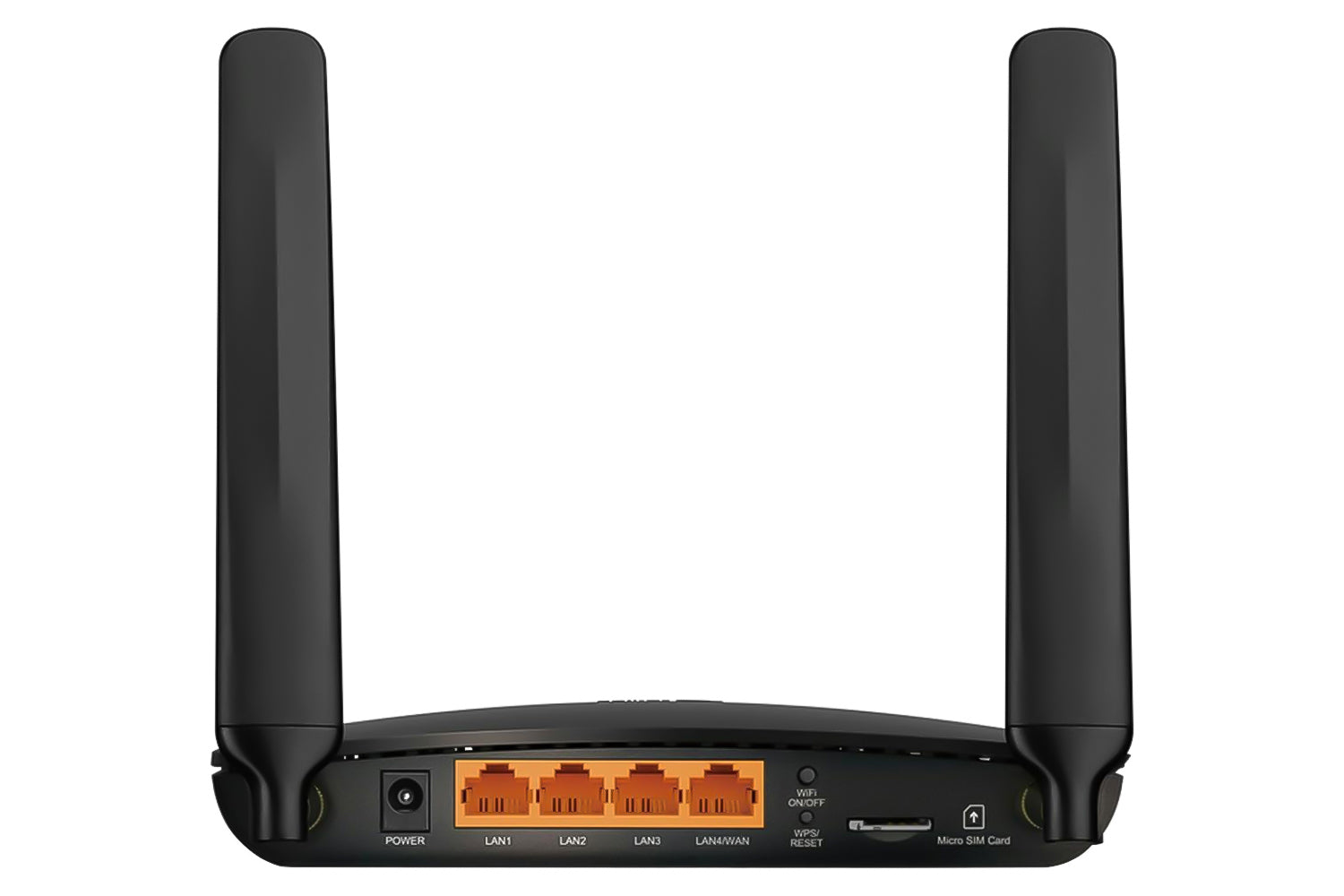

- Interface: 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot
- Button: WPS/Reset Button, Wireless On/Off Button, Power On/Off Button
- External Power Supply(EU): 9V/0.85A
- External Power Supply(APAC): 12V/1A
- Antenna Type: V3/APAC: 2 Internal 4G LTE Antennas, V2/V1: 2 Detachable 4G LTE Antennas
- Compatibility: NBN - Fibre to the Premises (FTTP) - Wireless Router Mode., NBN - Fibre to the Home (FTTH) - Wireless Router Mode.
- For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html
Wireless Features:
- Wireless Standards: IEEE 802.11b/g/n 2.4GHz
- Frequency: 2.4GHz
- Signal Rate: 300Mbps at 2.4GHz
- Reception Sensitivity: 11g 54M: -74dBm, 11n HT20: -71dBm, 11n HT40: -67dBm
- Transmit Power: CE: <20dBm(2.4GHz)
- Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
- WAN Failover
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
- Network Type (V3): 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
- Network Type(APAC V3): 4G: FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz) TDD-LTE B38/B39/B40/B41 (2600/2300/2500MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900MHz)
Software Features:
- Operating Modes: 3G/4G Router, Wireless Router "
- Management: Access Control, Local Management, Remote Management reboot schedule "
- WAN Connection Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
- DHCP: Server, Client, DHCP Client List, Address Reservation
- Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDns, NO-IP
- VPN: PPTP VPN, IPSec VPN , OpenVPN
- Access Control: Parental Control, Local Management Control
- Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
- Protocols: Supports IPv4 and IPv6
- Guest Network: 2.4GHz guest network x 1
Software:
- Protocols: IPv4, IPv6
- Parental Controls: URL Filtering, Time Controls
- WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- Quality of Service: QoS by Device
- NAT Forwarding: VIrtual Server, Port Forwarding, Port Triggering, DMZ, UPnP
- IPTV: IGMP Proxy, IGMP Snooping
- DHCP: Address Reservation, DHCP Client List, Server
- DDNS: NO-IP, Comex, DynDNS
- Management: Tether App, Webpage
System Requirements:
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers SIM Card
Product Features:
- Wireless N speeds of up to 300 Mbps
- Integrated antennas provide stable wireless connections
- Requires no configuration - just insert a SIM card and turn it on to enjoy high-speed internet access
- APAC Version supports band5 & band28 for better SIM card compatibility
- LAN/WAN port provides options and flexibility, allowing you to choose your connection type
- Share your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- Certification: CE, RoHS
Specifications
General
-
Product Colour
- Black
-
Product Type
- Router
-
Product Category
- Computing
-
Bundle Deals
- N
Modems & Router Features
-
DSL Modem Speed
- 300 Mbps
-
Firewall Type
- DoS
- SPI Firewall
- IP Address Filter/Domain Filter
- IP and MAC Address Binding
-
LAN/WAN
- Yes
Networking Features
-
Antenna
- 2x Internal Antennas
-
Antenna Form Factor
- Internal
-
Band Type
- Dual Band
-
Connectivity Technology
- Wireless & Wired
-
Frequency
- 2.4 GHz
-
Interface
- Ethernet
- WAN
- LAN
-
Network Standard
- IEEE 802.11b/g/n 2.4GHz
-
Wireless Speed
- 300 Mbps
Operating & Storage Conditions
-
Humidity
- 10%~90%
-
Temperature - Max
- -40~70 °C
-
Temperature - Min
- 0℃~40 °C
USB Wi-Fi Adapaters Features
-
Encryption
- 64/128-bit WEP
- WPA/WPA2
- WPA-PSK/WPA2-PSK
Extender Features
-
Features
- DHCP Server
- 3G Modem
-
Transmit Power
- CE: <20dBm(2.4GHz)
Dimensions
-
Weight
- 0.7420 kg
-
Width
- 202 mm
-
Height
- 34 mm
-
Depth
- 145 mm
-
Brand
- TP-Link
Power
-
Voltage
- 9 V
-
Power Source
- Main
-
Electrical Connection
- 1 A
Certifications
-
Approved Certificates
- CE
- RoHS
Included Accessories
-
Accessories
- Power Adapter
- RJ45 Ethernet Cable
