Description
Exploring the New Era of Home WiFi

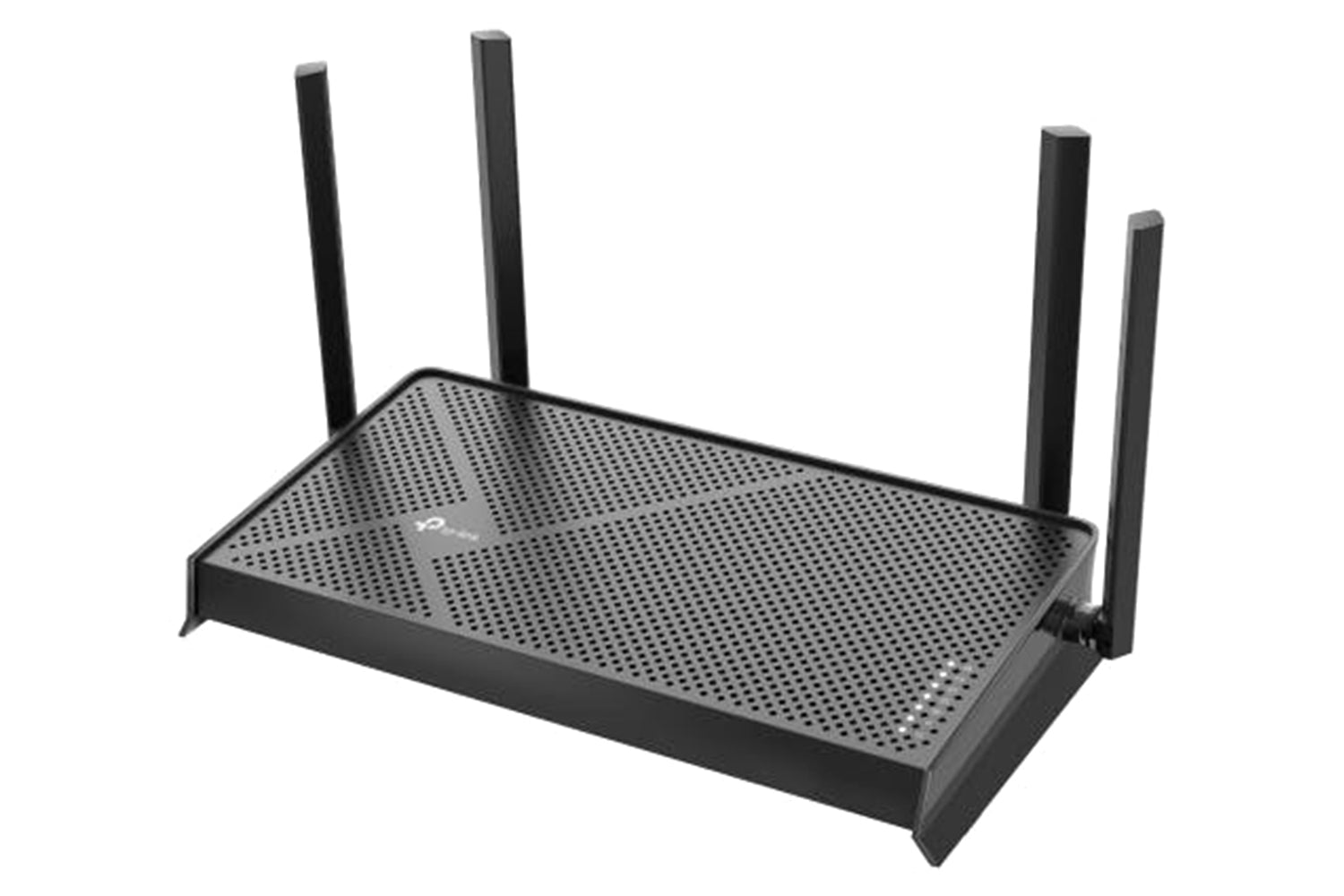

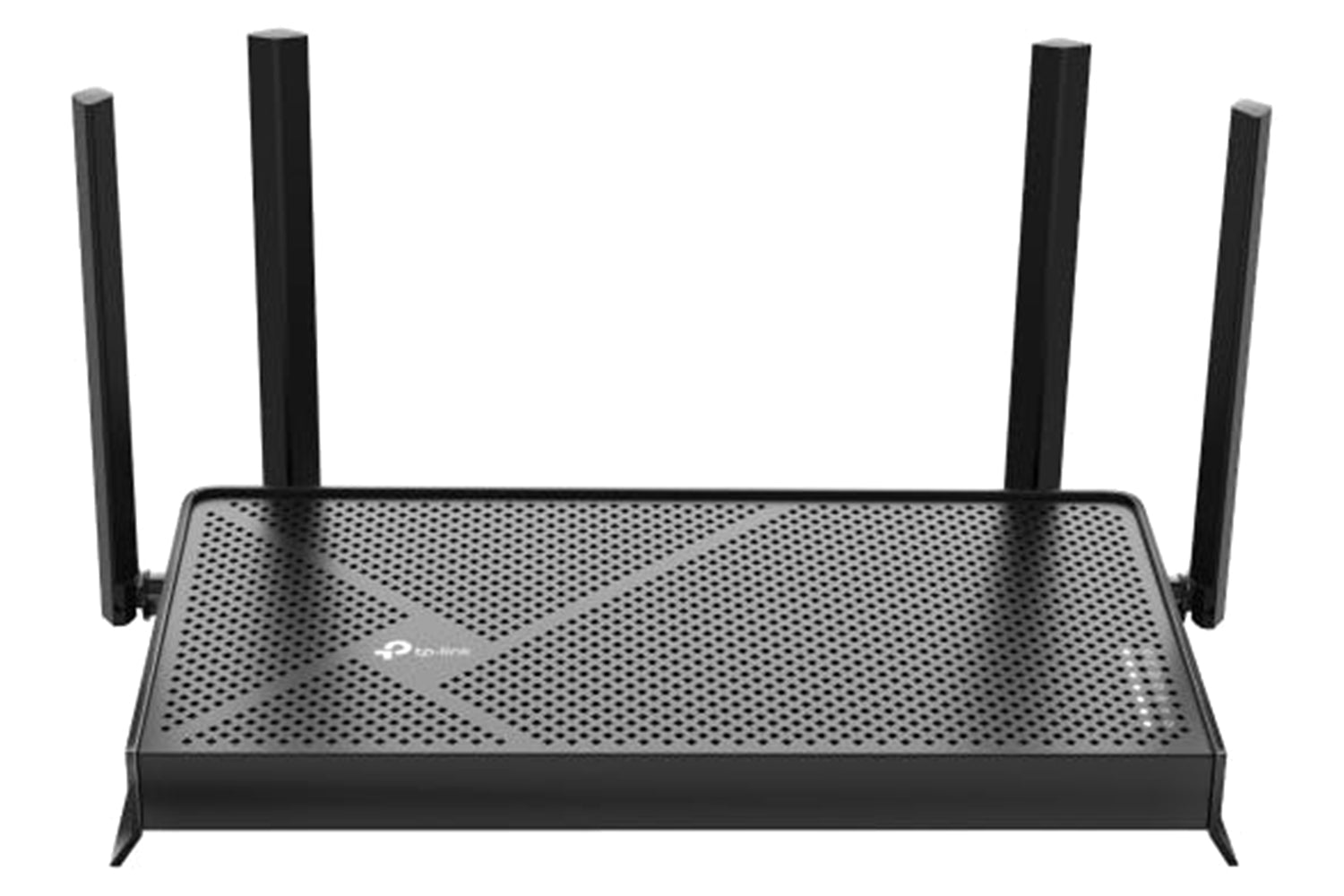

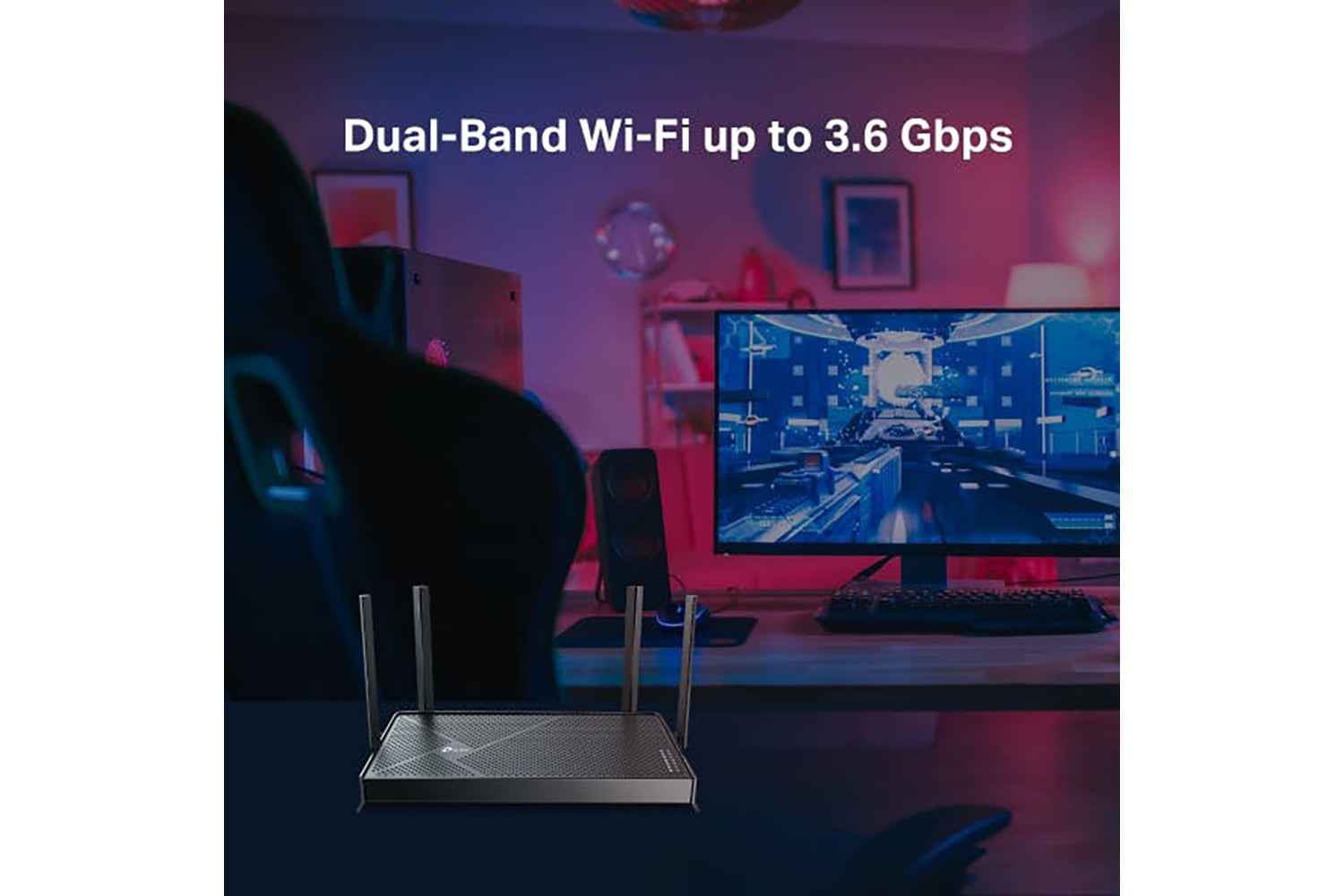

BE3600 Dual-Band Wi-Fi 7 Router
Next-Level Experience Realized with 3.6 Gbps WiFi 7
Powered by Wi-Fi 7 technology, Archer BE230 delivers an incredible wireless rate of up to 3.6 Gbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
- Multi-Link Operation: Higher speed, lower latency, more reliable
- Multi-Rus: Makes full use of resource for higher throughput
- 4K-QAM: Packs 120% data for higher speeds

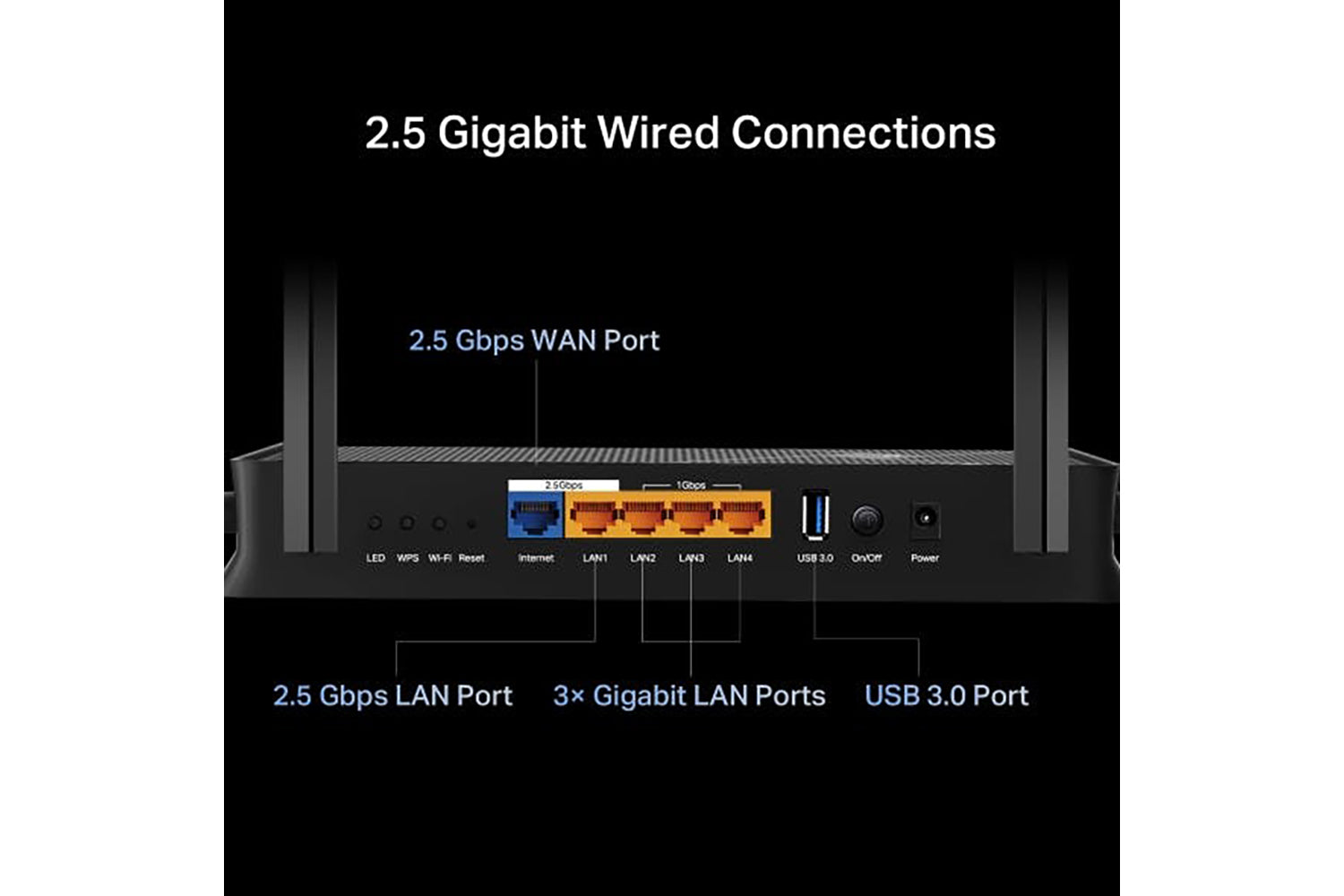

2.5 Gigabit Wired Connections
1 × 2.5 Gbps WAN port and 1 × 2.5 Gbps LAN port make full use of the Gigabit speeds from your local ISP. Breakthrough the 1G bottleneck and drive your devices to peak performance.
USB 3.0 Ports
Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.
Boosted WiFi Coverage Throughout Your Home
4× high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
Flexibly Create Whole Home Mesh WiFi
Archer BE230 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
- WiFi Dead Zone Killer: Eliminate weak signal areas with WiFi coverage for the whole house
- Smart Roaming: Uninterrupted streaming when moving around your home
- One WiFi Name: No more switching WiFi network names
Check out the video:
With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy.*
Check out the video:
- Home Network Scanner: Real-time network scanner to detect potential threats and security issues
- Parental Controls: Manage time online and block inappropriate content to keep your family safe online
- Quality of Service: Assign your favorite devices to have the fastest connections for top performance
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE230 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Setup Got Easier than Ever
Install the Tether app and simply follow the on-screen directions. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
- Connect: To a modem and power on both
- Download: And launch the Tether app
- Configure: By following the in-app instructions
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features
§2.5 Gbps internet speeds require compatible service plans and equipment. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions
*TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates
**HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information
***WiFi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/be. All devices need to support 802.11 WiFi protocols
WiFi Speeds
- 5 GHz: 2882 Mbps (802.11be)
- 2.4 GHz: 688 Mbps (802.11be)
WiFi Range
3 Bedroom Houses
- 4× External Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas
- Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
High
- Dual-Band: Allocate devices to different bands for optimal performance
- 2 × 2 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients
- OFDMA: Simultaneously communicates with multiple clients
- Airtime Fairness: Improves network efficiency by limiting excessive occupation
- DFS: Access an extra band to reduce congestion
- 4 Streams: Connect your devices to more bandwidth
Advanced Functions
- Multi-Link Operation (MLO)
- 4K-QAM
- Multi-RUs
- EasyMesh-Compatible
- Works with Alexa and Google Assistant
- IoT Network
Wireless Mode
- Router Mode
- Access Point Mode
SECURITY
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
- HomeShield Security
Network Security
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
Guest Network
- 1 × 5 GHz Guest Network
- 1 × 2.4 GHz Guest Network
VPN Server
- Open VPN Server
- PPTP VPN Server
- L2TP VPN Server
- WireGuard VPN Server
VPN Client
- Open VPN Client
- PPTP VPN Client
- L2TP VPN Client
- WireGuard VPN Client
WiFi Encryption
- WPA
- WPA2
- WPA3
- WPA/WPA2-Enterprise (802.1x)
HARDWARE

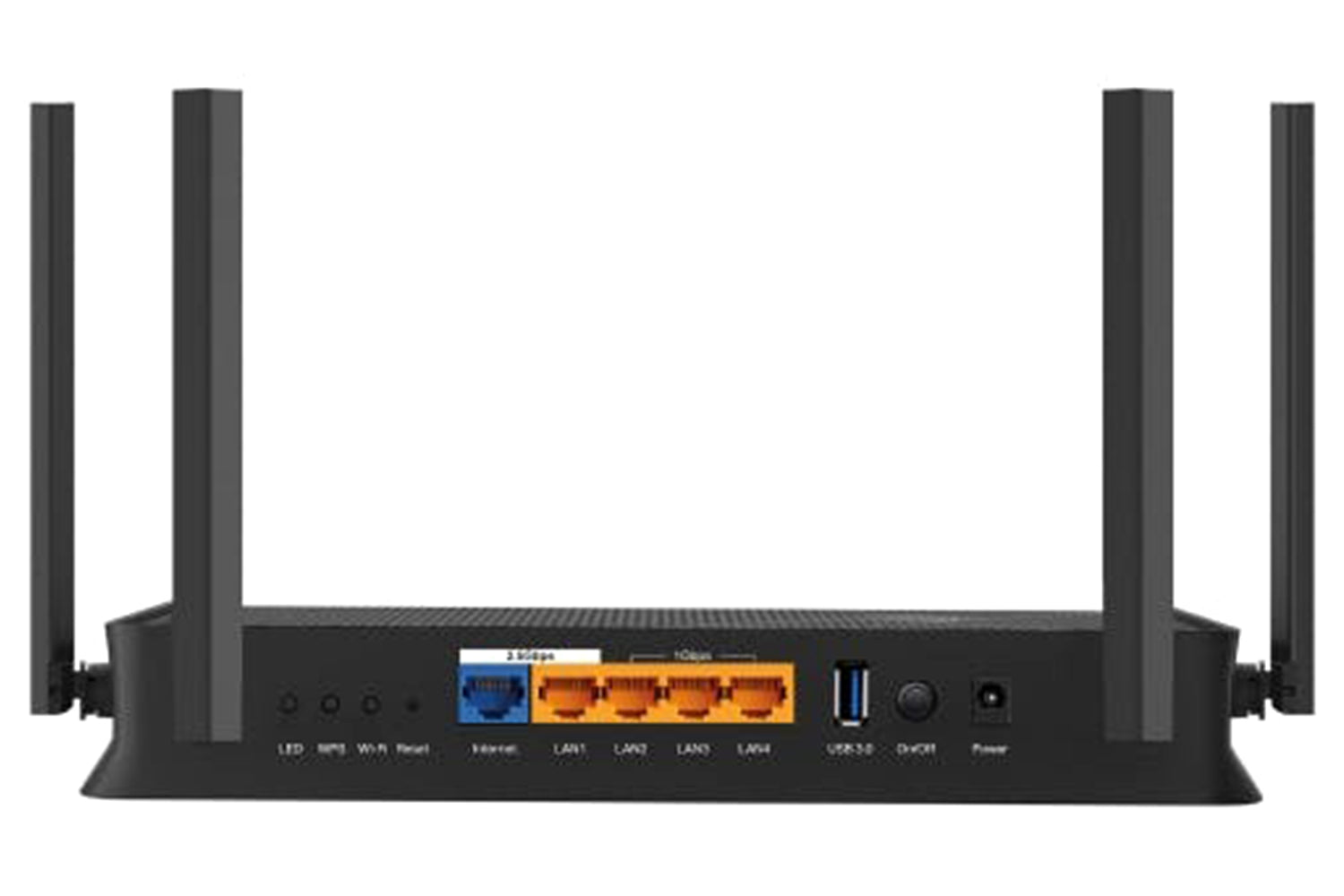

Ethernet Ports
- 1 × 2.5 Gbps WAN
- 1 × 2.5 Gbps LAN
- 3 × 1 Gbps LAN
USB Support
- 1 × USB 3.0
- Supported Partition Formats:
- NTFS, exFAT, HFS+, FAT32
- Supported Functions: FTP Server, Media Server, Samba Server
Buttons
- Power On/Off Button
- Wi-Fi On/Off Button
- LED Button
- WPS Button
- Reset Button
Power
- 12 V ⎓ 2 A
SOFTWARE
Protocol
- IPv4
- IPv6
Service Kit
- HomeShield
EasyMesh
- Compatible with EasyMesh
Parental Controls: HomeShield Parental Controls
- Custom Profiles
- Professional Content Filter Library
- Family Time
- Bedtime
- Off Time
- Time Rewards
- Family Online Time Ranking
- Pause the Internet
- Weekly and Monthly Reports
WAN Type
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
Quality of Service
- QoS by Device
Cloud Service
- Auto Firmware Upgrade
- TP-Link ID
- DDNS
NAT Forwarding
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
IPTV
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
DHCP
- Address Reservation
- DHCP Client List
- Server
DDNS
- TP-Link
- NO-IP
- DynDNS
Management
- Tether App
- Webpage
System Requirements
- Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
Environment
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Operating Humidity: 10%~90% non-condensing
Product Features
- 3.6 Gbps Dual-Band WiFi 7: BE3600 Dual-Band WiFi delivers WiFi speeds up to 3.6 Gbps
- 2 × 2.5G Ports: 1 × 2.5 Gbps WAN port, 1 × 2.5 Gbps LAN port and 3 × 1 Gbps LAN ports offer high-speed data transmissions
- Maximized Coverage: 4 × external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference
- EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.*
- Easy Setup and Use: Network management has never been easier with the Tether app
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.**
- Great Compatibility: Supports all Wi-Fi generations and devices and all internet providers.***
Specifications
-
Brand
- TP-Link
General
-
Product Type
- Wireless Router
-
Product Category
- Computing
Power
-
Voltage
- 12 V
-
Electrical Connection
- 2 A
Certifications
-
Approved Certificates
- CE
- FCC
- RoHS
Modems & Router Features
-
Modem Type
- DSL
-
Firewall Type
- SPI Firewall
- IP & MAC Binding
-
LAN/WAN
- Yes
Networking Features
-
Antenna
- 4× Fixed High-Performance Antennas
-
Antenna Form Factor
- External
-
Band Type
- Dual Band
-
Connectivity Technology
- Wireless & Wired
-
Interface
- Ethernet
- USB
- WAN
- LAN
Operating & Storage Conditions
-
Humidity
- 0%~90% non-condensing
-
Temperature - Max
- 0 °C
-
Temperature - Min
- 40 °C
USB Wi-Fi Adapaters Features
-
Encryption
- WPA
- WPA2
- WPA3
- WPA/WPA2-Enterprise (802.1x)
