The New Era of Home Connectivity

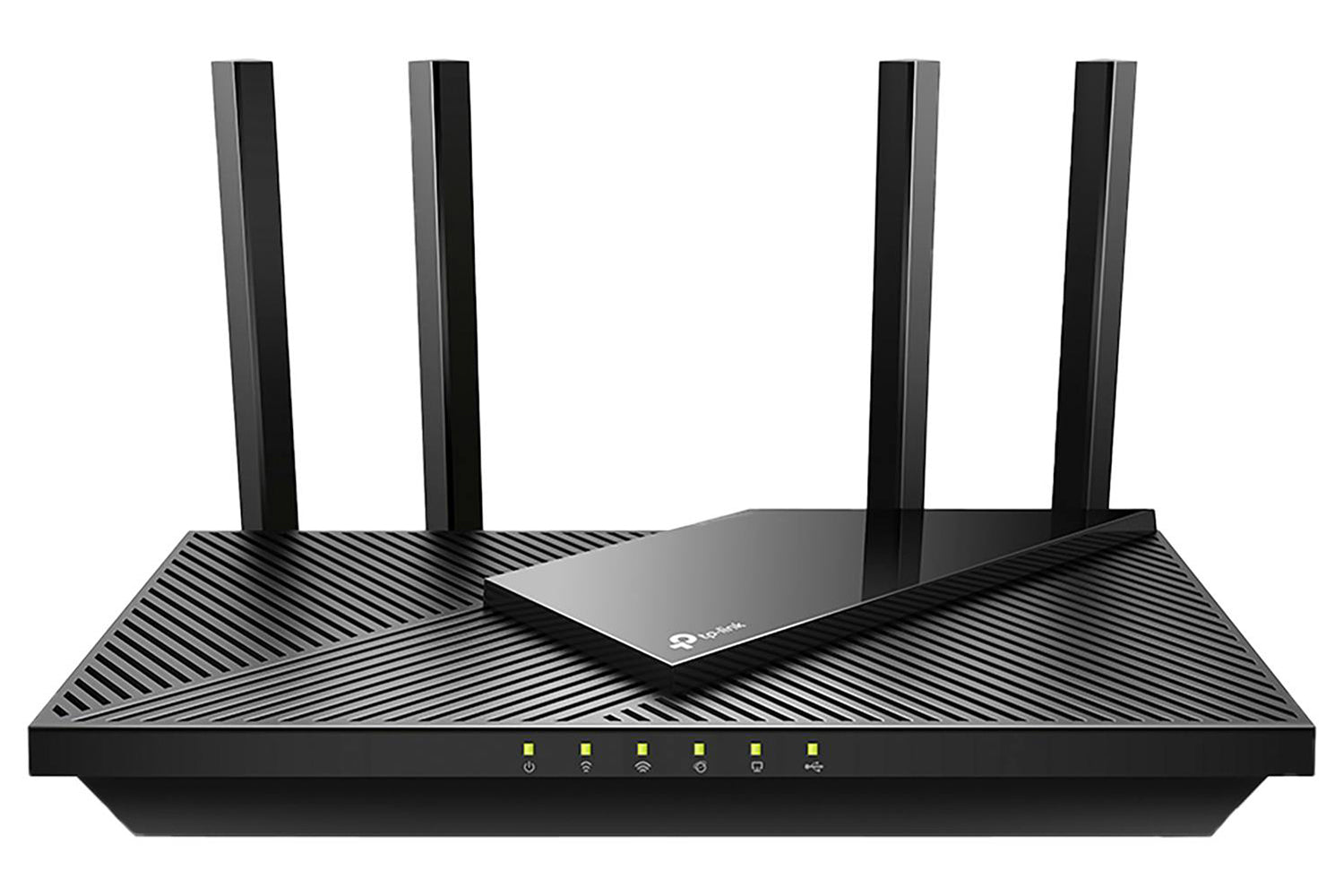

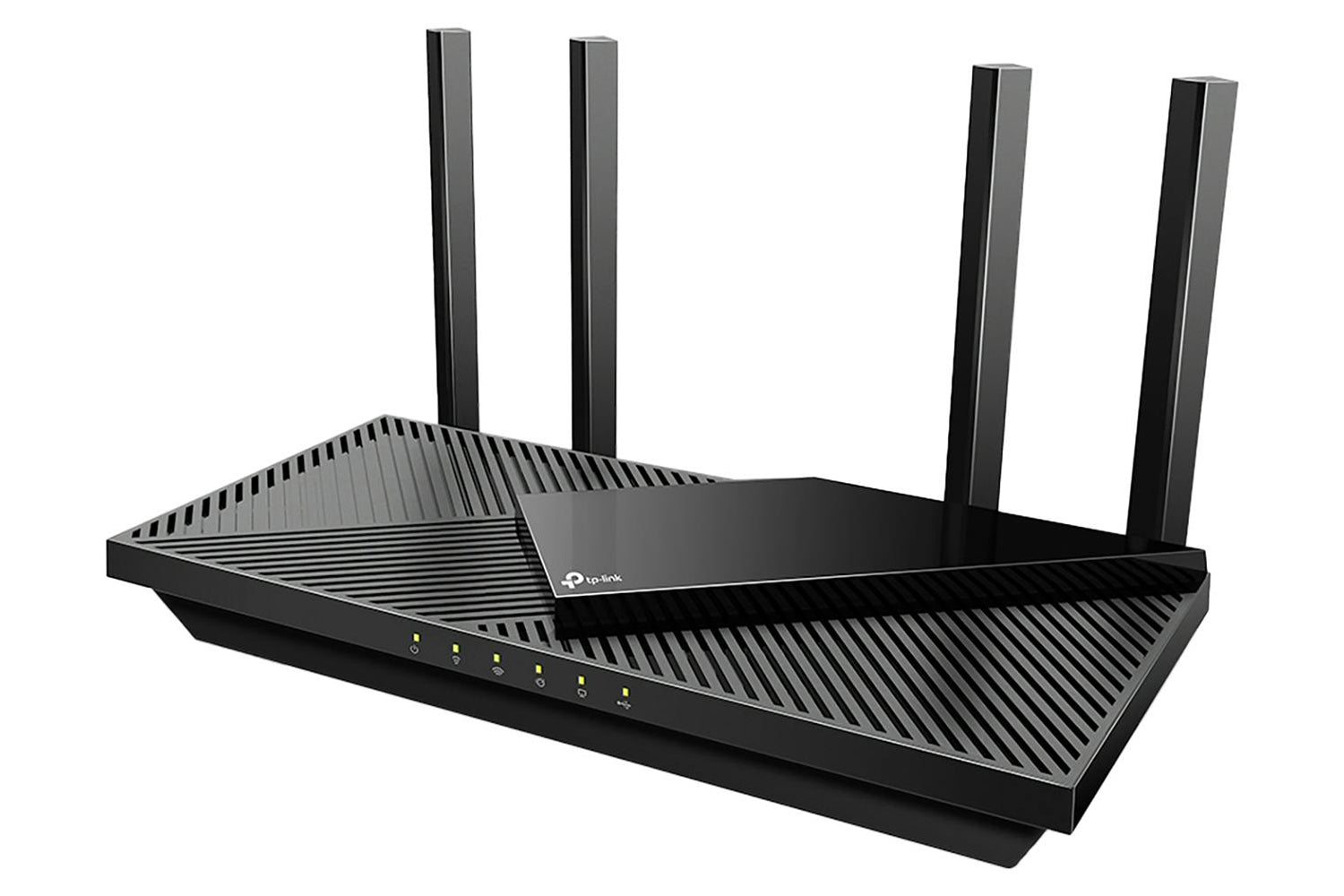

AX3000 Dual-Band Gigabit Wi-Fi 6 Router

Wi-Fi 6 Upgrades Everything

The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.

Incredible Speed

Drastically improved speeds enable streaming, fast downloading, and gaming—all at the same time. 5 GHz with 160 MHz channel support doubles the bandwidth, enabling 8K video without lag. 4 Stream Wi-Fi 5 Route, Archer AX55, 250% Faster.

More Responsive Experiences: Less Loading Wheels

Enjoy smooth gaming, video streaming, and live feed simultaneously. OFDMA makes your WiFi stronger by allowing multiple clients to share one band at the same time, which cuts latency and jittering.

Powerful CPU and High Memory: Connect More Without Dropping Speed

Behind the Wi-Fi 6 technology structure are the advanced Qualcomm chipset and high memory. Enjoy fast connections with minimal latency even under a heavy load of transmission. Every click for website links and online playback on your laptop and phone just responds quicker.

Improved Cooling Design Consistent Full Output

No heat ups, no throttles. A larger heat sink and refined case design cool the WiFi 6 system and enable your network to stay at top speed in more versatile environments.

WiFi Coverage Throughout Your Home

4 high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for previously hard to reach outlets.

USB 3.0 Ports

Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely*.

TP-Link OneMesh Flexibly Create Whole Home WiFi with Archer AX55

Want to build a whole-home Wi-Fi? Archer AX55 supports OneMesh to form seamless whole-home coverage, preventing drops and lag when moving between signals. Learn more: https://www.tp-link.com/uk/onemesh/

Check out the video:

Traditional Router with Extender

Check out the video:

Archer AX55 + OneMesh Range Extender

Unified Management

Strong Mesh With Multi-Band Backhaul

TP-Link homeshield: Advanced Security for Your Everyday Devices

With TP-Link HomeShield, enjoy advanced security features delivering a safe environment that protects your family and network's data and privacy.

Ultra-Fast Smart Roaming

Home Network Scanner

Real-time network scanner to detect potential threats and security issues.

Parental Controls

Manage time online and block inappropritate content keeping your family safe online.

Quality of Service

Assign your favorite devices to have the fastest connections for top performance.

Upgrade to HomeShield Pro

• DDoS attack prevention
• IoT device protection
• Advanced parental controls including time rewards
• 1-Month free trial

WPA3—New Level of Cyber Security

The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.

Easy Setup and Use

Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX55 in minutes. The Tether app allows you to manage network settings from any Android or iOS device. Learn more: https://www.tp-link.com/uk/tether/

Protect Your Children

Block inappropriate content for your children, and customize a time range for better online habits.

New Connection Notification

You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.

Easy Firmware Upgrade

Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.

Note:

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

‡Use of 802.11ax (Wi-Fi 6) and its features including OFDMA, HE160, and TWT requires clients to also support corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions. Actual power reduction by Target Wake Time may vary as a result of network conditions, client limitations, and environmental factors.

§The 802.11ax white paper defines standardized modifications to both the IEEE 802.11 physical layers (PHY) and the IEEE 802.11 Medium Access Control (MAC) layer as enabling at least one mode of operation capable of supporting improvement of at least four times the average throughput per station (measured at the MAC data service access point) in a dense deployment scenario.

△HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit https://www.tp-link.com/homeshield for more information

*Use of WPA3 requires clients to support WPA3.

**This router may not support all the mandatory features as ratified in IEEE 802.11ax specification.

***Further software upgrade for feature availability may be required.

Standards:

• Wi-Fi 6: IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds:

• AX3000: 5 GHz: 2402 Mbps (802.11ax, HE160), 2.4 GHz: 574 Mbps (802.11ax)

WiFi Range:

• 3 bedroom houses: 4× fixed high-performance antennas, Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
• High-power FEM: Improves transmission power to strengthen signal coverage

WiFi Capacity:

• High dual-band: Allocate devices to different bands for optimal performance
• OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients
• Airtime fairness: Improves network efficiency by limiting excessive occupation
• DFS: Access an extra band to reduce congestion
• 4 streams: Connect your devices to more bandwidth

Working Modes:

• Router mode
• Access point mode

Processor:

• Dual-Core CPU

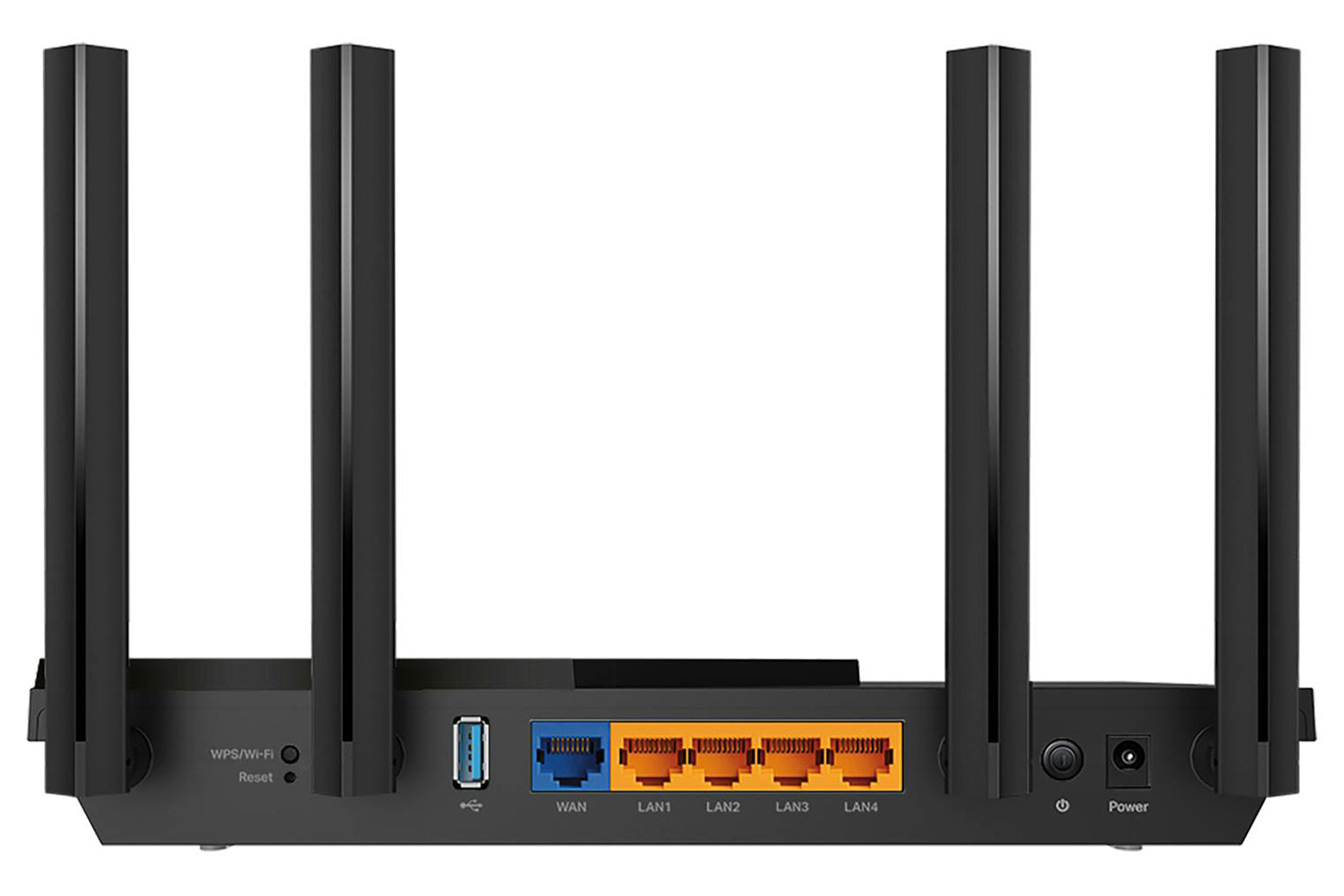

Ethernet Ports:

• 1× gigabit WAN port
• 4× gigabit LAN ports

USB Support:

• 1× USB 3.0 port
• Supported partition formats: NTFS, exFAT, HFS+, FAT32
• Supported functions: Apple time machine, ftp server, media server, samba server

Buttons:

• Wi-Fi/WPS button
• Power On/Off button
• Reset button

WiFi Encryption:

• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)

Network Security:

• SPI firewall
• Access control
• IP & MAC binding
• Application layer gateway

HomeShield Security:

• Real-time IoT protection
• Malicious site blocker
• Intrusion prevention system
• DDoS attack prevention
• Home network scanner

Guest Network:

• 1× 5 GHz guest network
• 1× 2.4 GHz guest network

VPN Server:

• OpenVPN, PPTP

Protocols:

• IPv4, IPv6

Service Kits:

• HomeShield

OneMesh:

• OneMesh supported, without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products

Parental Controls:

• Custom profiles
• Professional content filter library
• Family time
• Bedtime
• Off time
• Time rewards
• Family online time ranking
• Pause the internet
• Weekly and monthly reports

WAN Types:

• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

Quality of Service:

• QoS by device

Cloud Service:

• Auto firmware upgrade
• OTA firmware upgrade
• TP-Link ID
• DDNS

NAT Forwarding:

• Virtual servers
• Port forwarding
• Port triggering
• DMZ
• UPnP

IPTV:

• IGMP proxy
• IGMP snooping
• Bridge
• Tag VLAN

DHCP:

• Address reservation
• DHCP client list
• Server

DDNS:

• TP-Link
• NO-IP
• DynDNS

Management:

• Tether app
• Webpage

System Requirements:

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL modem (if needed)
• Subscription with an internet service provider (for internet access)

WiFi Transmission Power:

• CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.35GHz), <30dBm(5.47GHz~5.725GHz)
• FCC: <30dBm(2.4GHz & 5.15GHz~5.825GHz)

WiFi Reception Sensitivity:

• 5GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm, 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm, 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm, 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm, 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm, 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm, 11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm, 11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm
• 2.4GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-74dB, 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dB, 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm, 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm

Product Features:

• Next-Gen gigabit Wi-Fi 6 Speed: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads
• Connect more devices: OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices
• Ultra-Low Latency: Enables more responsive gaming and video chatting
• Expanded Wi-Fi Coverage: Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home
• TP-Link HomeShield: Enhanced security defends against the latest cyber threats
• Improved Battery Life: Target Wake Time helps your devices to communicate more while consuming less power
• Compatible with Alexa: Control your router via voice commands and make your life smarter and easier with Amazon Alexa
