Description
Check out the video:
Wi-Fi Auto-Sync for Unified Wi-Fi Network
Wi-Fi Auto-Sync creates a simple, intuitive powerline experience. Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi Move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.

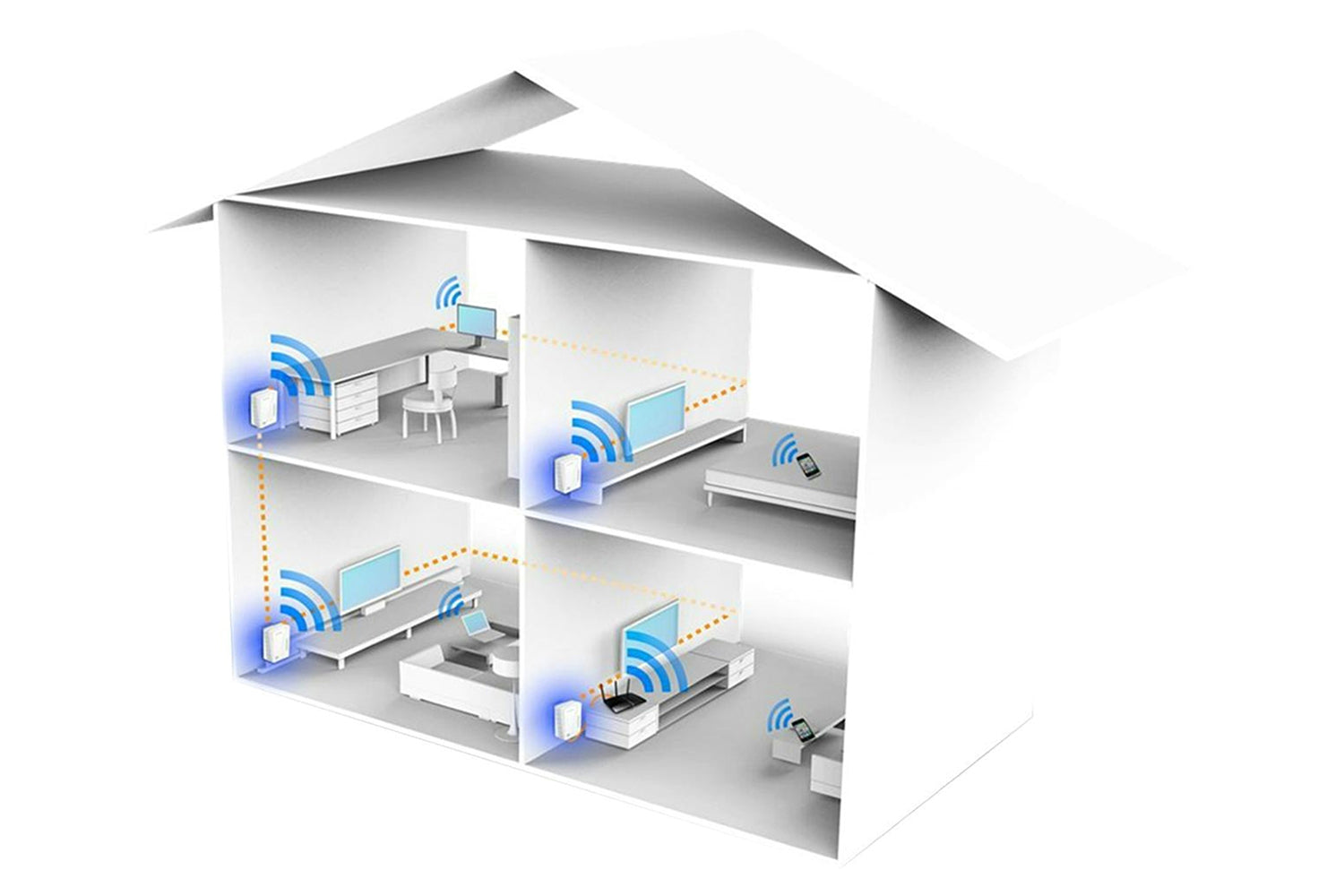

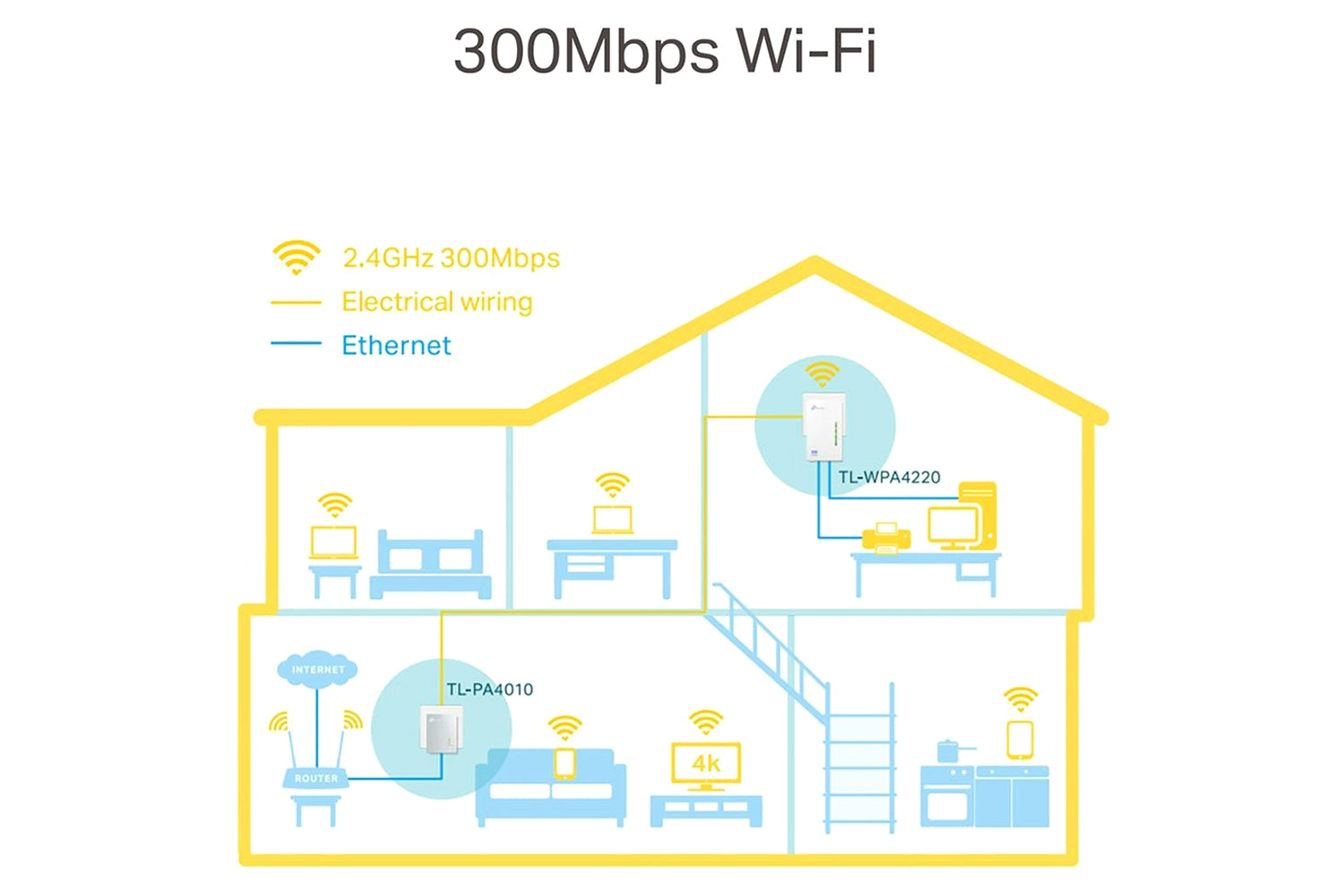

Extend Your Powerline Network to Any Room
Based on the Powerline technology, your network extension is never limited to the primary coverage of your router. With advanced HomePlug AV2，TL-WPA4220 KIT is perfect for delivering ultra-fast data transfer speed and brings network to anywhere there is a power outlet.

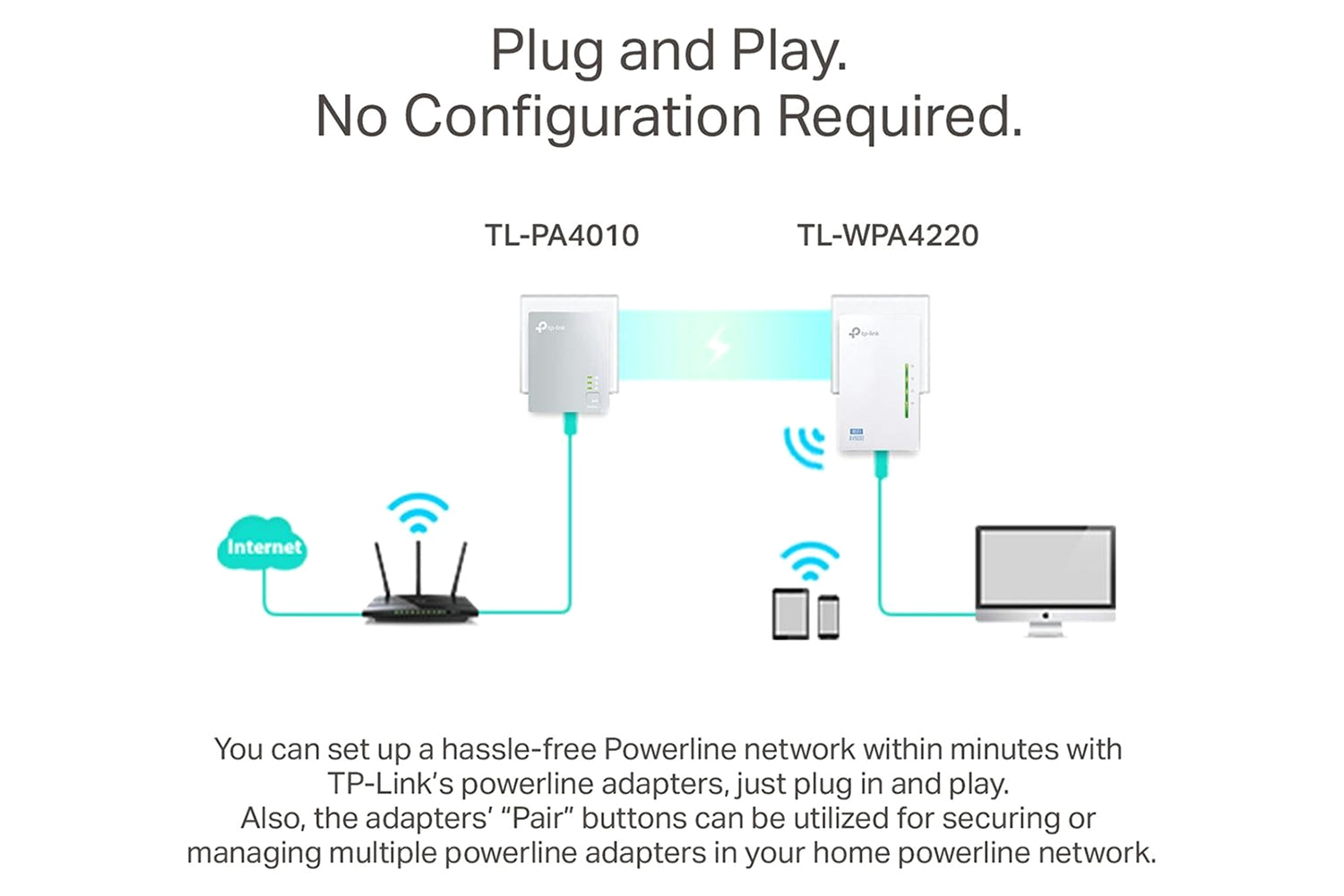

Plug, Pair and Play
Plug the TL-PA4010 in the wall and connect it to the router with an Ethernet cable.Then plug the TL-WPA4220 in any desired power outlet. Press the ‘Pair’ buttons on both adapters to create a secure network.There you go! Just enjoy the seamless, high speed wired and wireless network.
＊ Powerline adapters need to be connected to the same electrical circuit.

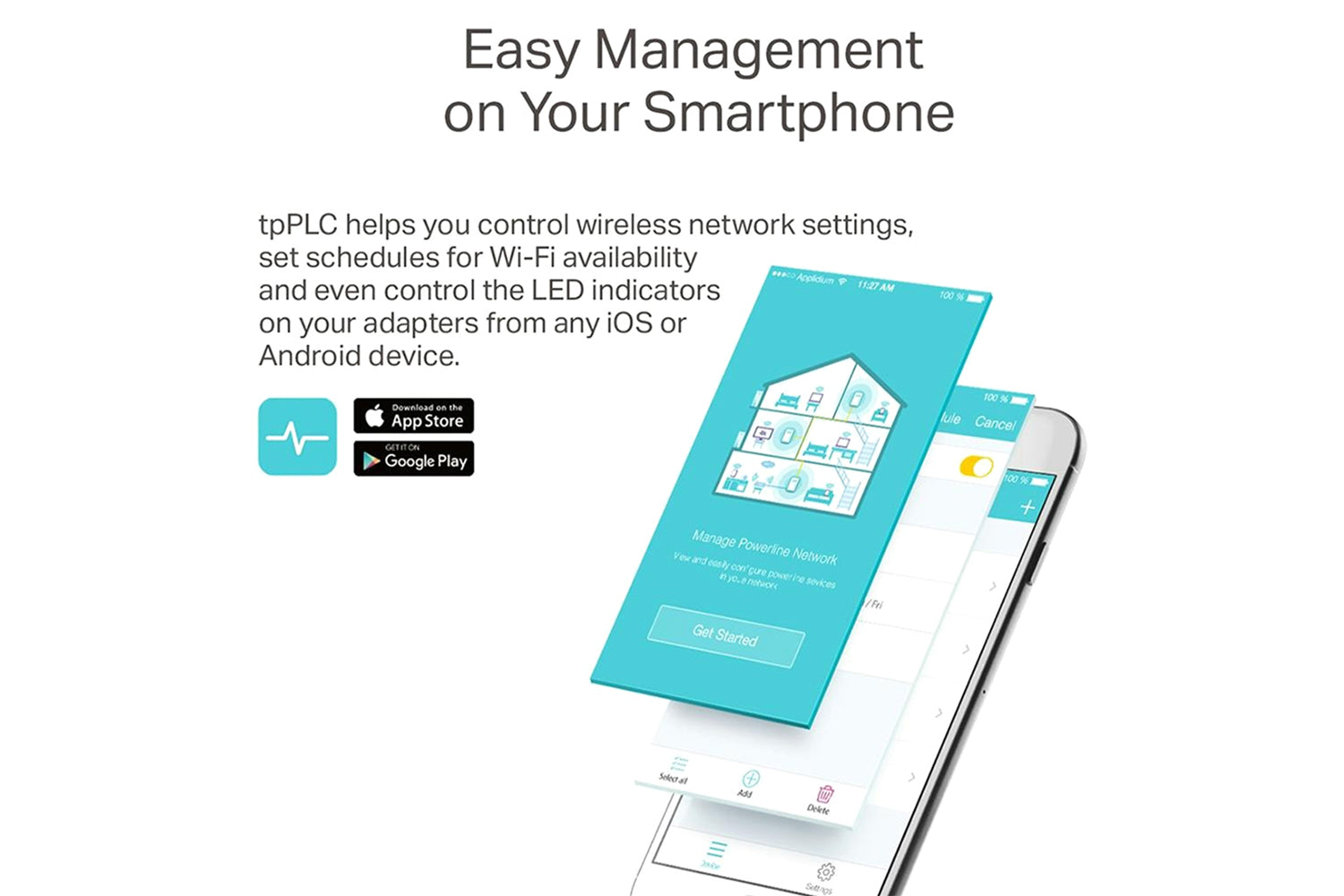

Powerline Management on Your Smartphone
The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices.
The theoretical maximum channel data transfer rate is derived from HomePlug AV specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, building material and construction, quality of electrical installation and other adverse conditions.
Check out the video:
Hardware Features
- Plug Type: AU
- Standards and Protocols: HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n

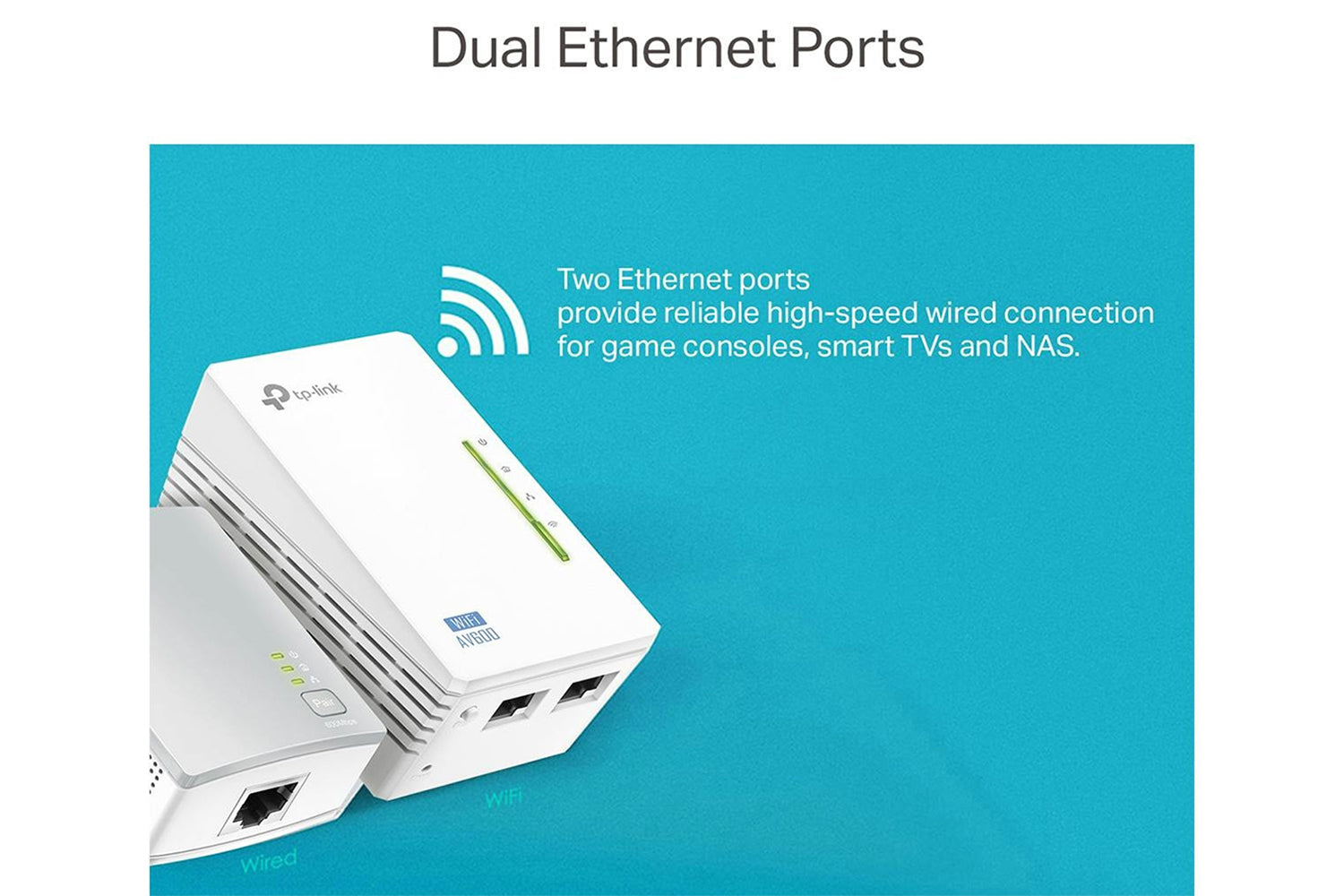

- Interface: 2*10/100Mbps Ethernet Port
- Button: Pair, Reset, Wi-Fi/Wi-Fi Clone
- Range: 300 Meters over electrical circuit
Power Consumption
- Maximum: 7.608W (220V/50Hz)
- Typical: 7.216W (220V/50Hz)
- Standby: 4.610W (220V/50Hz)
Wireless Features
- Frequency: 2.4-2.4835GHz
- Wireless Security: 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
- Advanced Functions: Enable/DisableWireless Radio,WMM, Wireless Statistics
Signal Rate
- 11n: Up to 300Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic)
Reception Sensitivity
- 270M: -68dBm@10% PER
- 130M: -68dBm@10% PER
- 108M: -68dBm@10% PER
- 54M: -68dBm@10% PER
- 11M: -85dBm@8% PER
- 6M: -88dBm@10% PER
- 1M: -90dBm@8% PER
Transmission Power
- CE:<20dBm(2.4GHz)
- FCC:<30dBm
Software Features
- Modulation Technology: OFDM (PLC)
Encryption
- Powerline Security:: 128-bit AES
- Wireless Security:: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
- System Requirements: Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Environment
- Operating Temperature: 0°C~40°C (32°F ~104°F)
- Storage Temperature: -40°C~70°C (-40°F ~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Product Features:
- One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
- HomePlug AV standard providing up to 600Mbps high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
- Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
Specifications
-
Brand
- TP-Link
General
-
Product Type
- Range Extender
-
Product Colour
- White
-
Product Category
- Computing
Certifications
-
Approved Certificates
- CE
- RoHS
Dimensions
-
Width
- 94 mm
-
Depth
- 54 mm
-
Height
- 40 mm
Included Accessories
-
Accessories
- Ethernet Cable × 2
Networking Features
-
Connectivity Technology
- Wireless
-
Frequency
- 2.4-2.4835 GHz
-
Interface
- Ethernet
-
Wireless Speed
- 300 Mbps
-
Functionality
- Enable/DisableWireless Radio
- WMM
- Wireless Statistics
Operating & Storage Conditions
-
Humidity
- 10%~90%
-
Temperature - Max
- 0 - 40 °C
-
Temperature - Min
- 40 - 70 °C
USB Wi-Fi Adapaters Features
-
Encryption
- WEP
- WPA/WPA2
- WPA-PSK/WPA2-PSK Encryption
-
LED Indicator
- PWR
- PLC
- ETH
- Wi-Fi
Extender Features
-
Data Transfer Rate
- 500 Mbps
-
Transmit Power
- 2.4GHz
