Description
Ultra-fast Powerline Speed
HomePlug AV2 standard compliant, the high-speed data transfer rate of up to 1000Mbps, ideal for Ultra HD streaming and online gaming.
Gigabit Ethernet for Reliable Connections
OneGigabit Ethernet port provides reliable high-speed wired connections for game consoles, smart TVs, STB and more.
300-meter Range
Up to 300-meter range over the household power circuit.
Power Saving
Automatically switches to Power-Saving mode when not in use, reducing its energy consumption by up to 85%.
Plug and Play
Allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired and wireless connections right away.
No New Wires
No new wires, use existing electrical wiring to expand your home network.
TP-Link tpPLC
Allows you to easily manage your network using the intuitive tpPLC App or the tpPLC utility.
Pair Button
Press the “Pair” button on each adapter to create a more secure network.
Extend Reliable Gigabit Network through Electrical Wiring

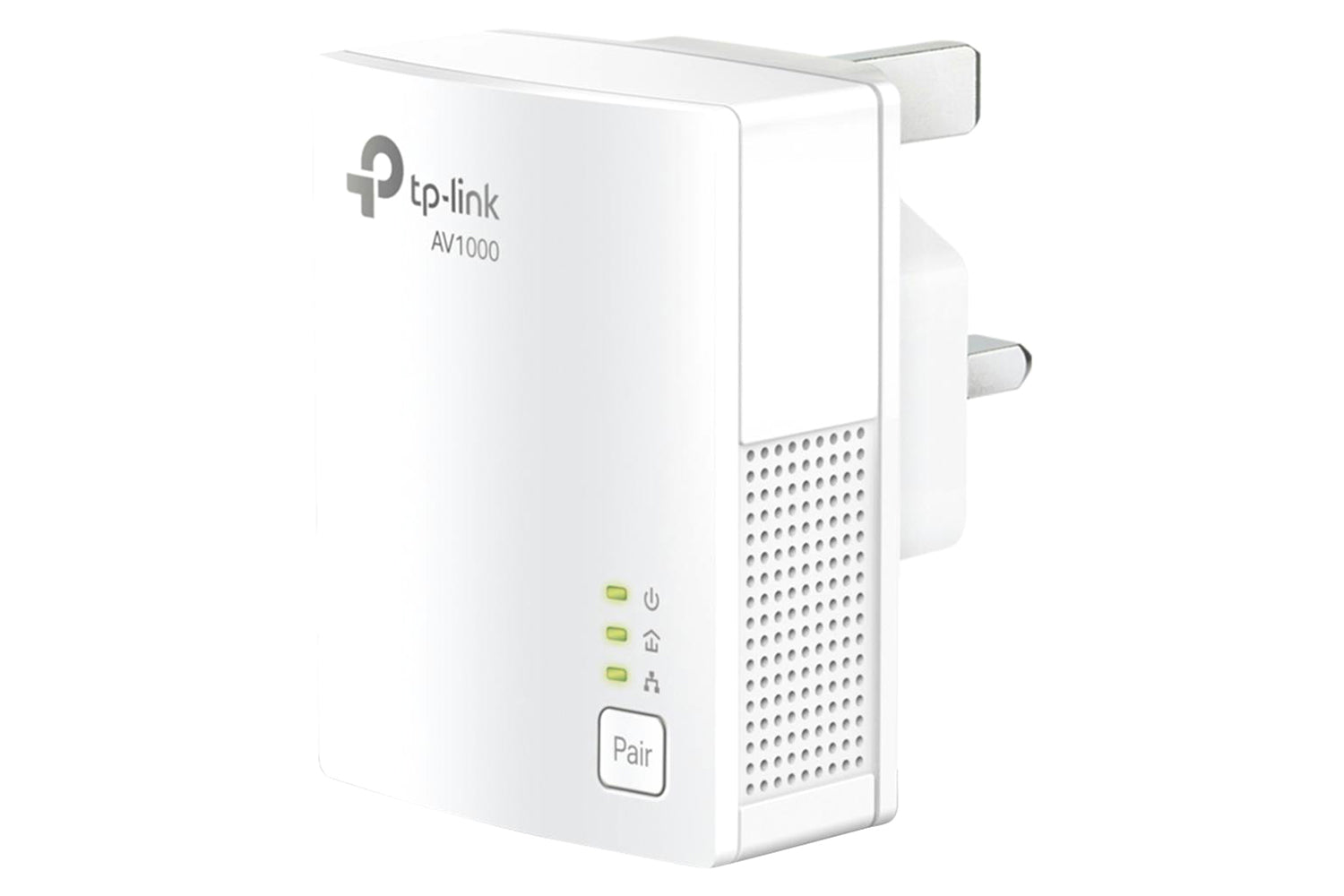

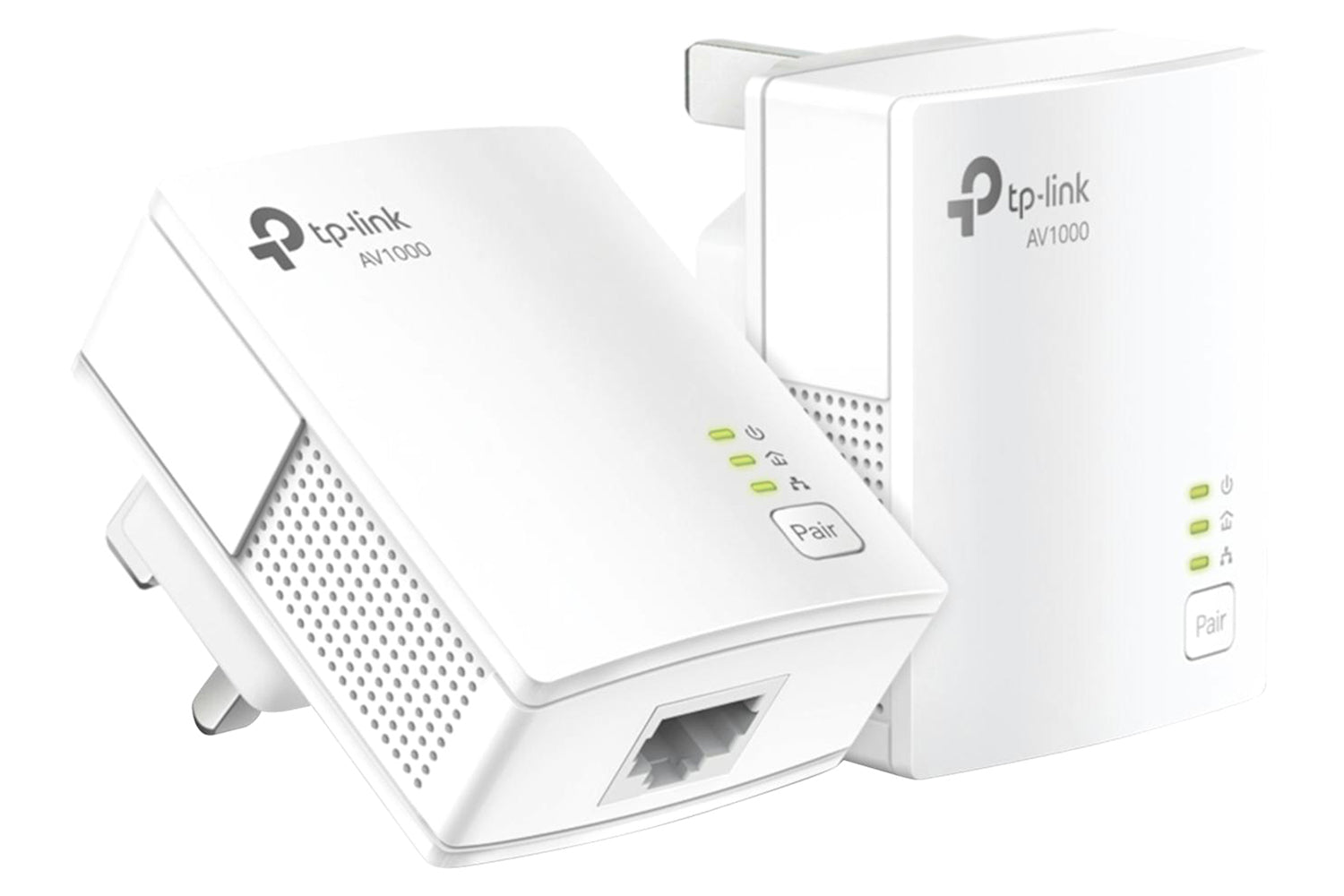

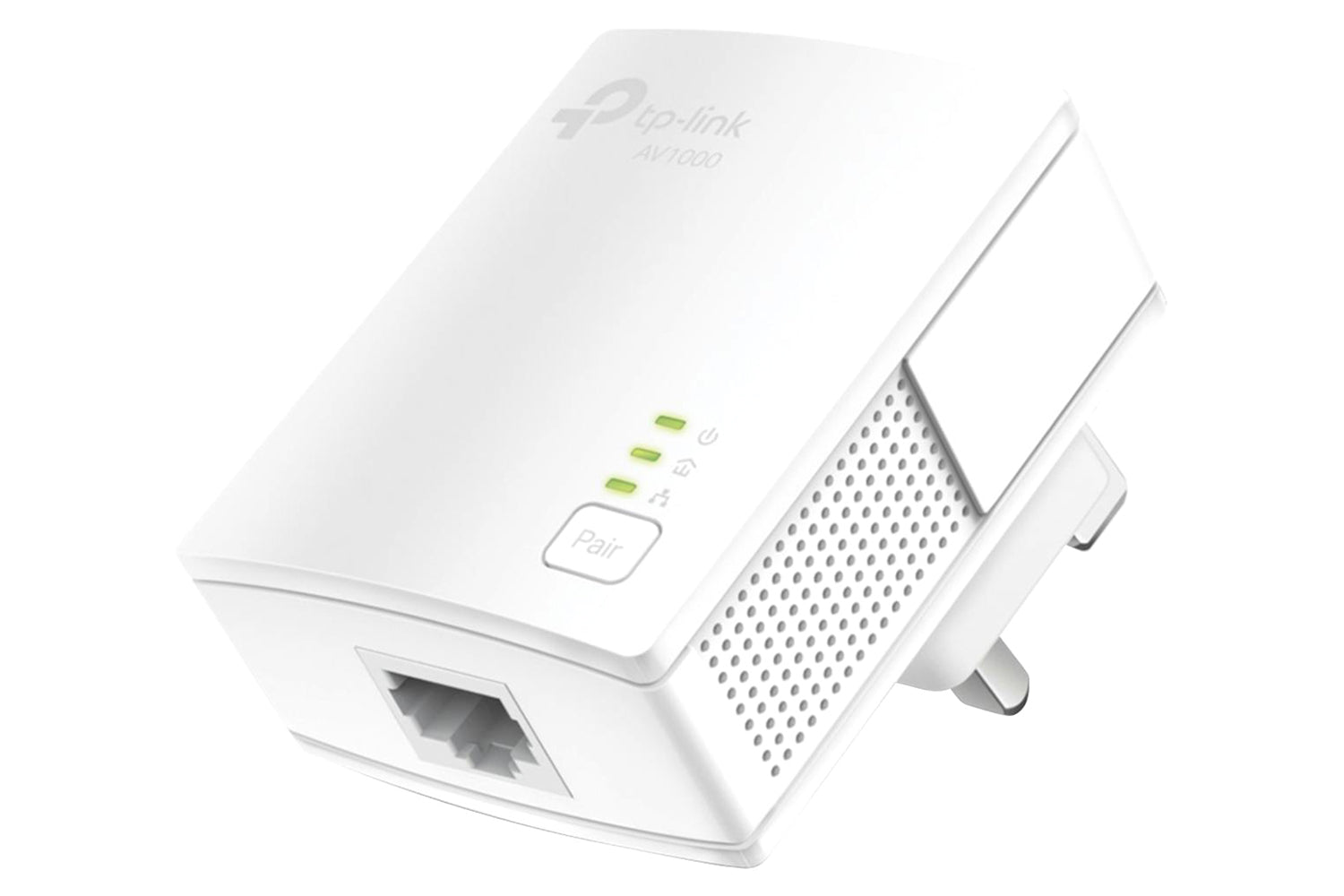

AV1000 Gigabit Powerline Starter Kit

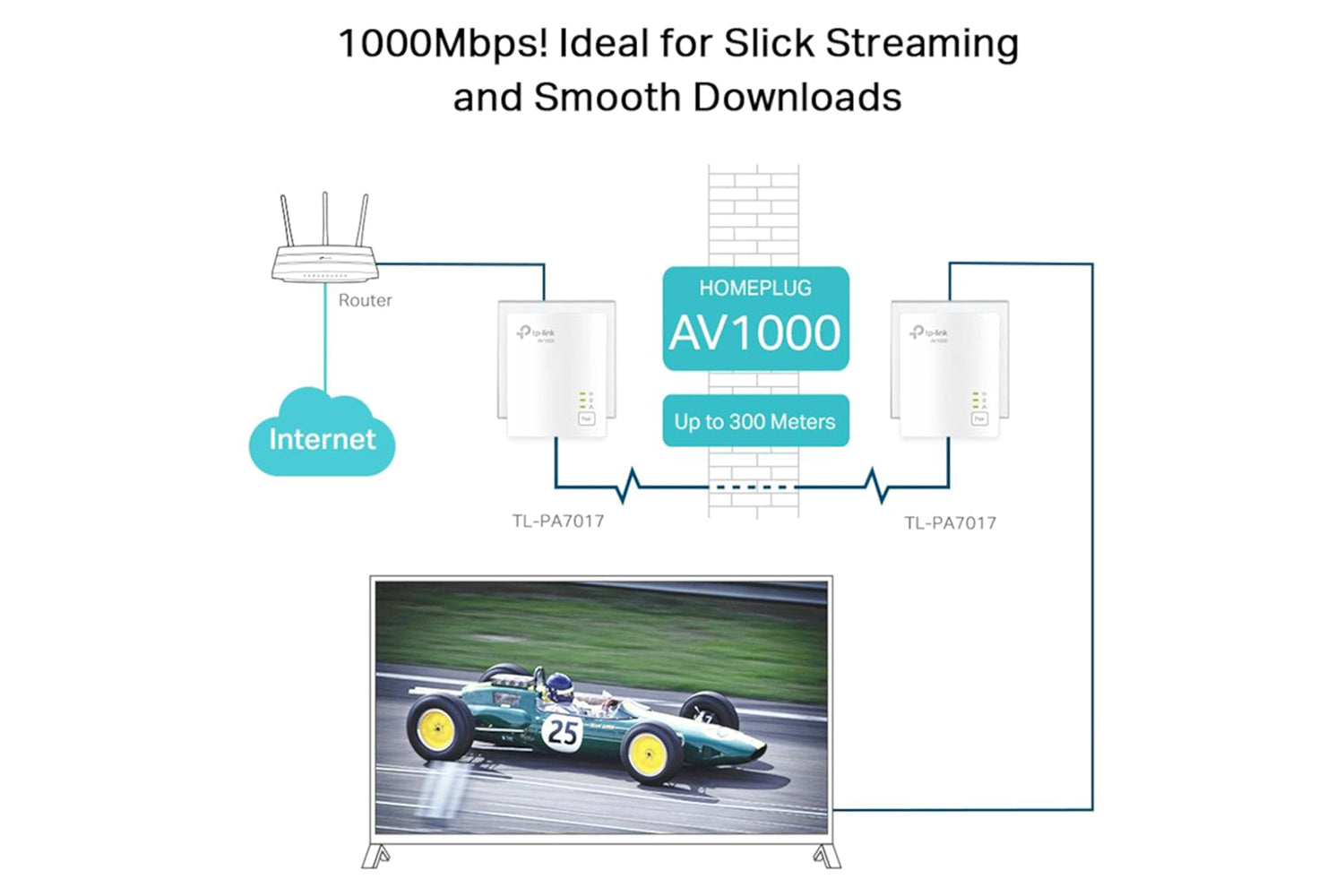

AV1000 Speeds and 300 Meter Range
Using advanced HomePlug AV2 technology, ensures a stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption to reliable powerline links.

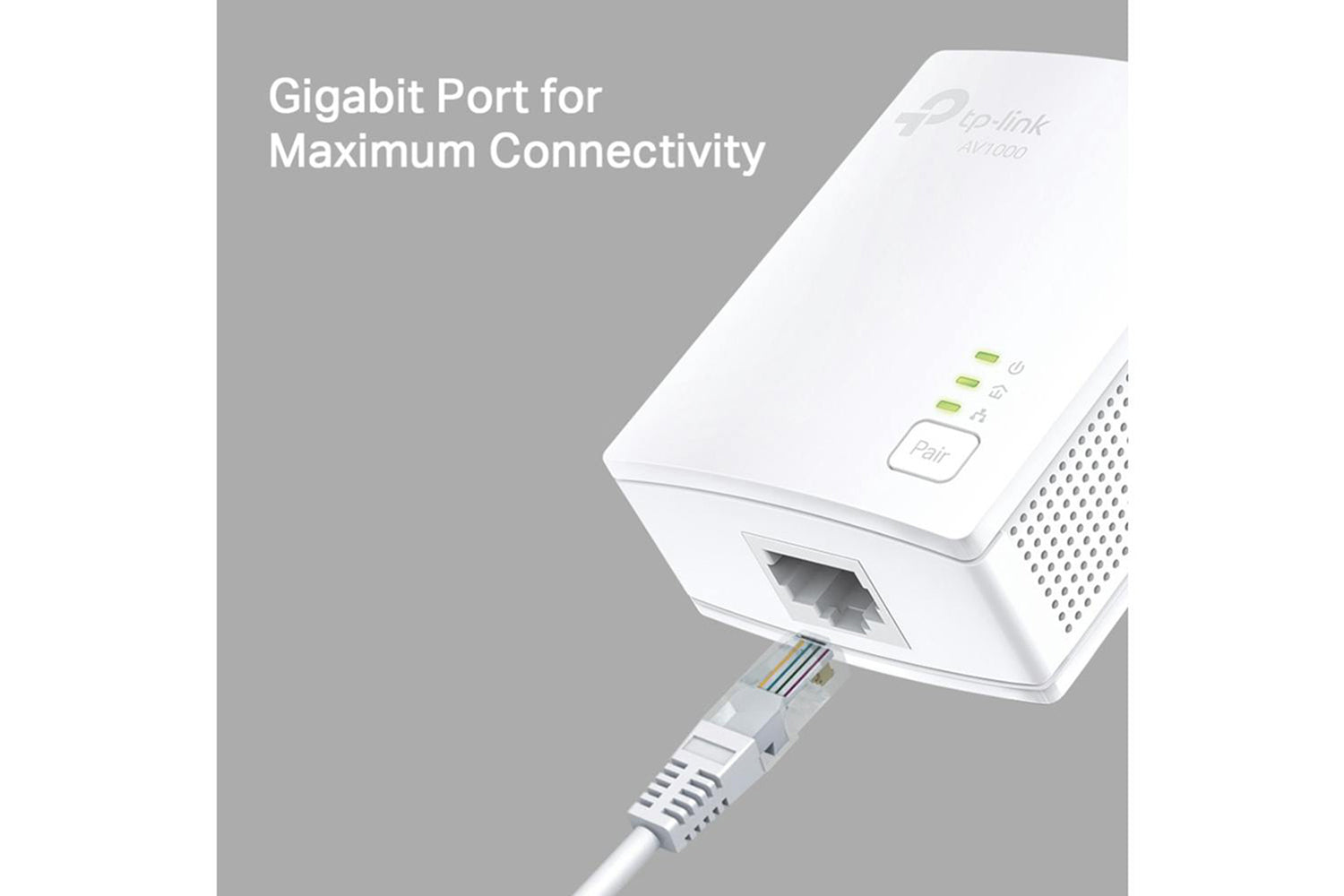

Gigabit Port for Maximum Connectivity
With a Gigabit Ethernet port allows users to connect a bandwidth intensive device to the Internet with high speeds and ensure the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.

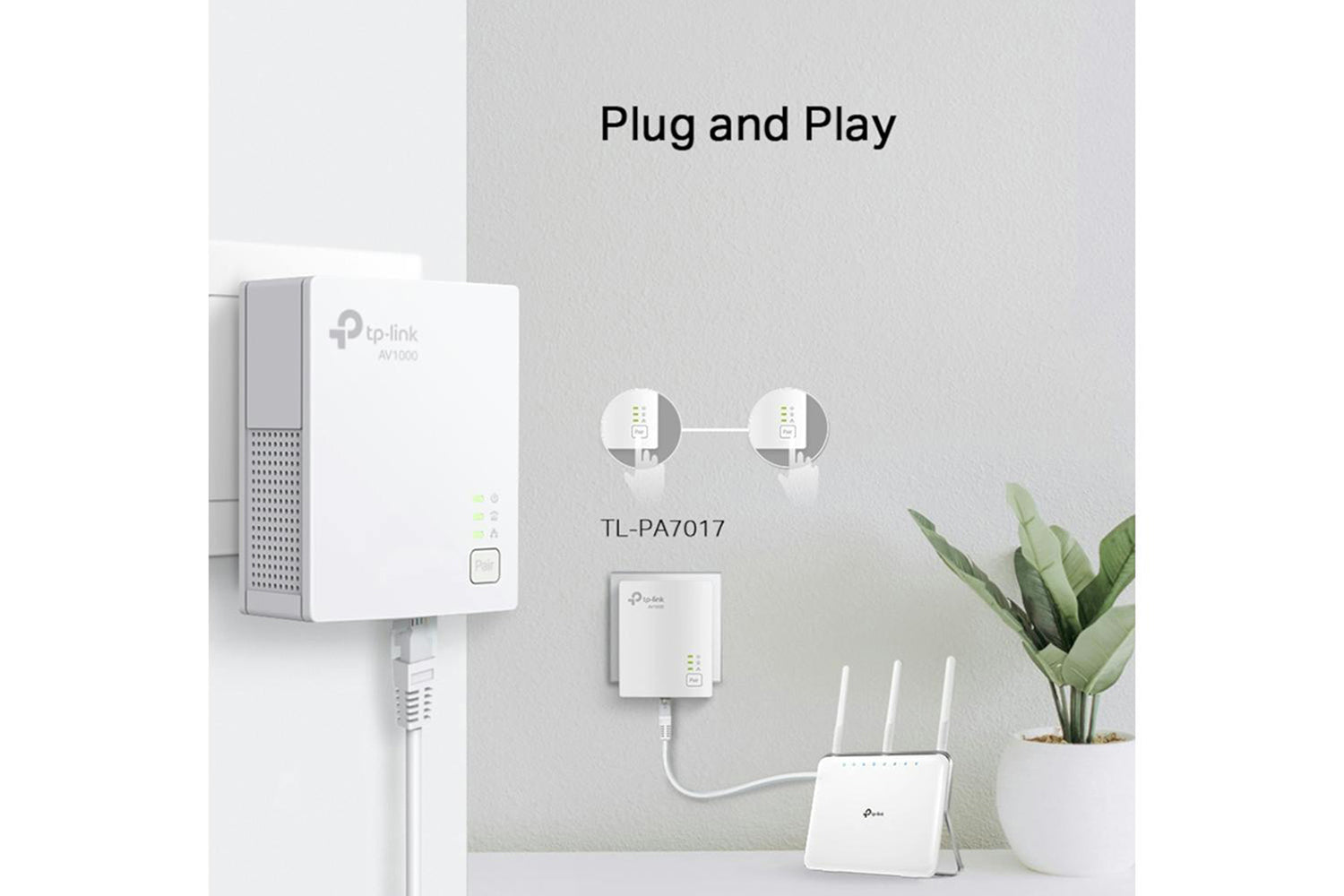

Plug and Play, No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!
Reduce Power Consumption by Up to 85%
A new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to Power-Saving mode reducing its energy consumption by up to 85%.
System Requirements
- Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac, Linux
Compatible
- Compatible with any powerline adapters /extenders and routers
Hardware Features
- Plug Type: US
- Interface: Gigabit Ethernet Port
- Button: Pair/Reset button
- Range: Up to 300 meters/1000 feet over existing electrical wiring
Standards And Protocols
- HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3,
- IEEE 802.3u, IEEE 802.3ab
Power Consumption
- Maximum: 2.7W (220V/50Hz)
- Typical: 2.3W (220V/50Hz)
- Standby: 0.5W (220V/50Hz)
Software Features
- Modulation Technology: OFDM (PLC)
- System Requirements: Windows 2000/XP/2003/Vista/7/8/8.1/10, Mac, Linux
Encryption
- Powerline Security: 128-bit AES Encryption
Environment
- Operating Temperature: 0°C~40°C (32°F ~104°F)
- Storage Temperature: -40°C~70°C (-40°F ~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Product Features:
- 300 meters over electrical circuit
- Pair and reset button
- Plug and play
- LED Indicator - Power, Powerline, Ethernet
- Operating Temperature 0°C~40°C (32°F ~104°F)
- Power saving mode
Specifications
-
Brand
- TP-Link
General
-
Product Type
- Powerline Starter Kit
-
Product Colour
- White
-
Product Category
- Computing
Certifications
-
Approved Certificates
- CE
- RoHS
Power
-
Power Source
- Main
Dimensions
-
Width
- 52 mm
-
Depth
- 28 mm
-
Height
- 65 mm
Included Accessories
-
Accessories
- Ethernet Cable × 2
Networking Features
-
Additional Features
- Pair and Reset button
-
Connectivity Technology
- Wired
-
Interface
- Ethernet
Operating & Storage Conditions
-
Humidity
- 10%~90% non-condensing
-
Temperature - Max
- -40~70(-40°F ~158°F) °C
-
Temperature - Min
- 0~40(32°F ~104°) °C
USB Wi-Fi Adapaters Features
-
LED Indicator
- PWR
- PLC
- ETH
Extender Features
-
Data Transfer Rate
- 1000 Mbps
