Description
Better Life With Ultra-Fast Wi-Fi Extender Using Existing Electrical System
AV1000 Gigabit Passthrough Powerline ac Wi-Fi Kit
Easily Extend Fast, Reliable Wifi To Every Room
The powerline adapter TL-WPA7617 transforms your home’s existing electrical circuit into a ultra-fast-speed network, and brings wired and wireless networks to anywhere there is a power outlet. No need for new wires or drilling. Network passes through walls and floors. Compatible with any WiFi routers or other powerline products. Expand coverage by adding more extenders. Note: Powerline products must be deployed in sets of two or more and be connected to the same electrical circuit.

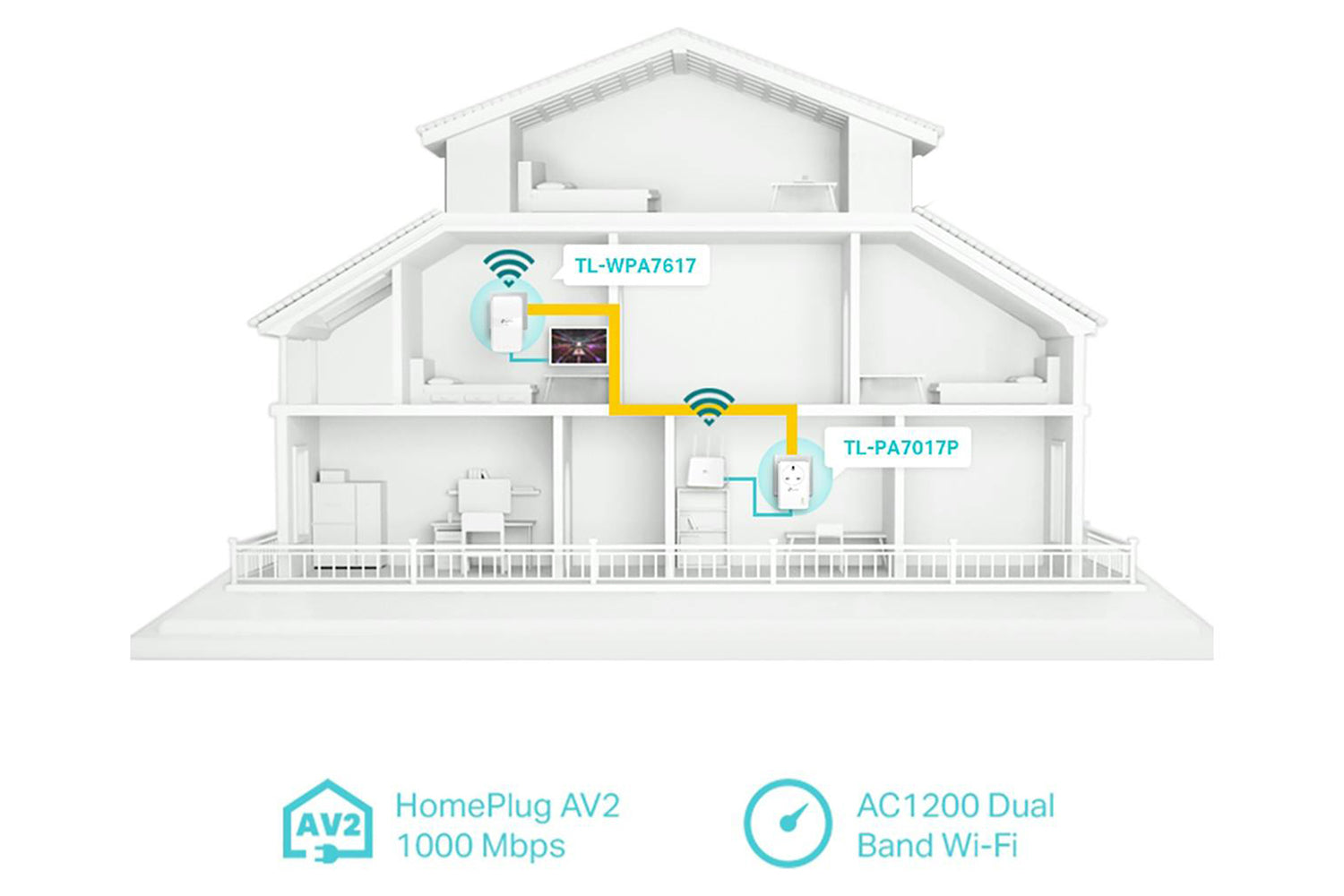

Av1000 Speeds And 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7617 ensures stable and high-speed WiFi, and also wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

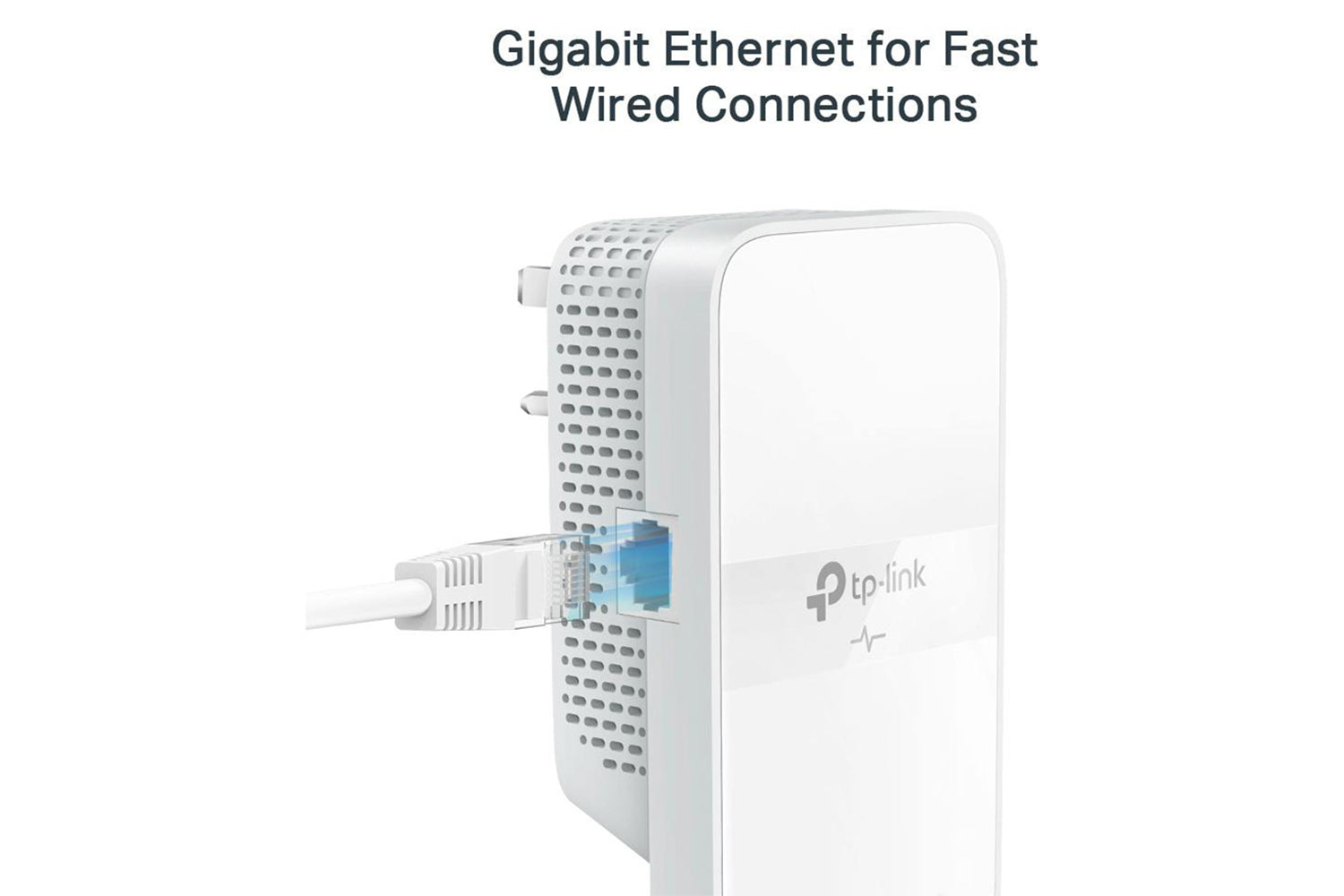

Gigabit Ethernet For Reliable Connections
One Gigabit Ethernet port provides warp-speed wired connections for 4K HD streaming, lag-free gaming, and more. Two Ethernet cables are included in the box. PC, Game Console, Smart TV, Laptop.
Ac 1200 Wifi For Ultra-Fast Internet Connections
AC1200 dual band WiFi (867 Mbps on 5GHz & 300 Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home.

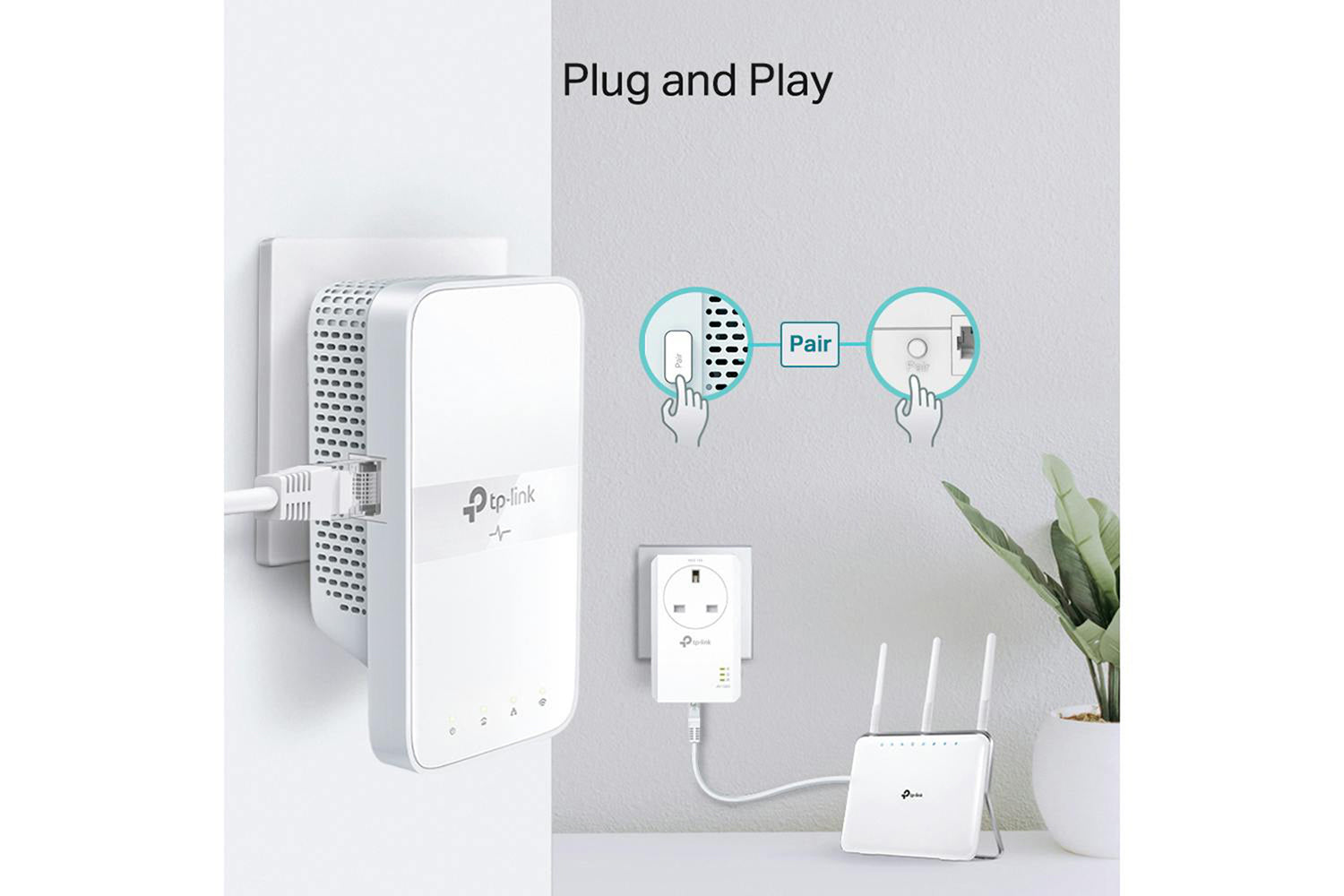

Plug And Play, No Configuration Required
Ditch the complicated setup process for good. Get started with powerline in just two steps. Step1 : connect the existing powerline adapter to your router. Step2 : plug in TL-WPA7617 wherever you need wired and wireless internet service.

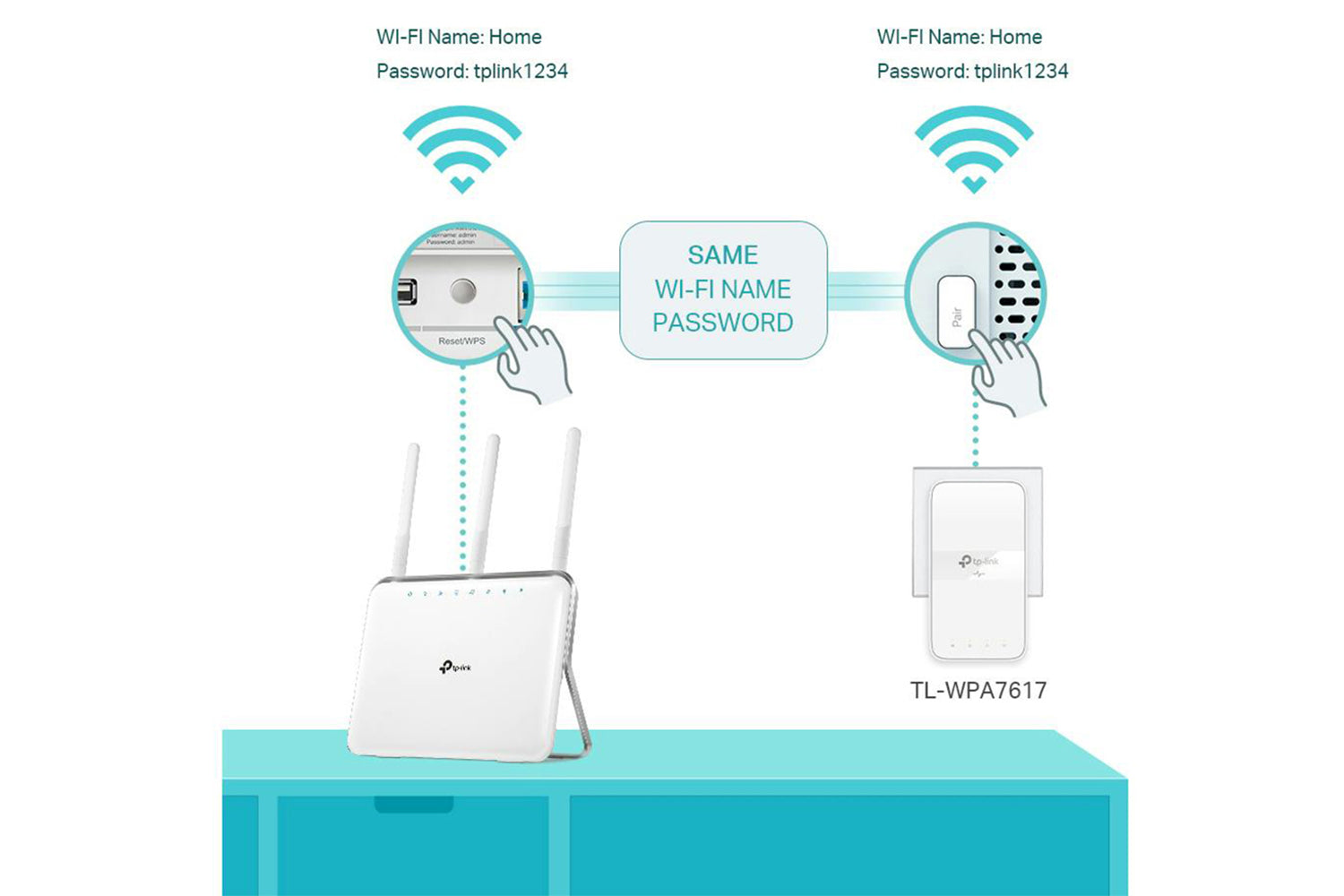

One-Touch Wi-Fi Configuration
Instantly copies the wireless network name (SSID) and password from your router by pressing the WiFi Clone button. Besides, any changes made to the WiFi settings of any powerline adapter will be automatically applied across the entire Powerline network. Aut-Sync Wi-Fi Settings.
Powerline Management On Your Smartphone
Manage your powerline Wi-Fi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network. View real-time powerline speed. LED control (also controlled by LED On/Off button). Guest network.

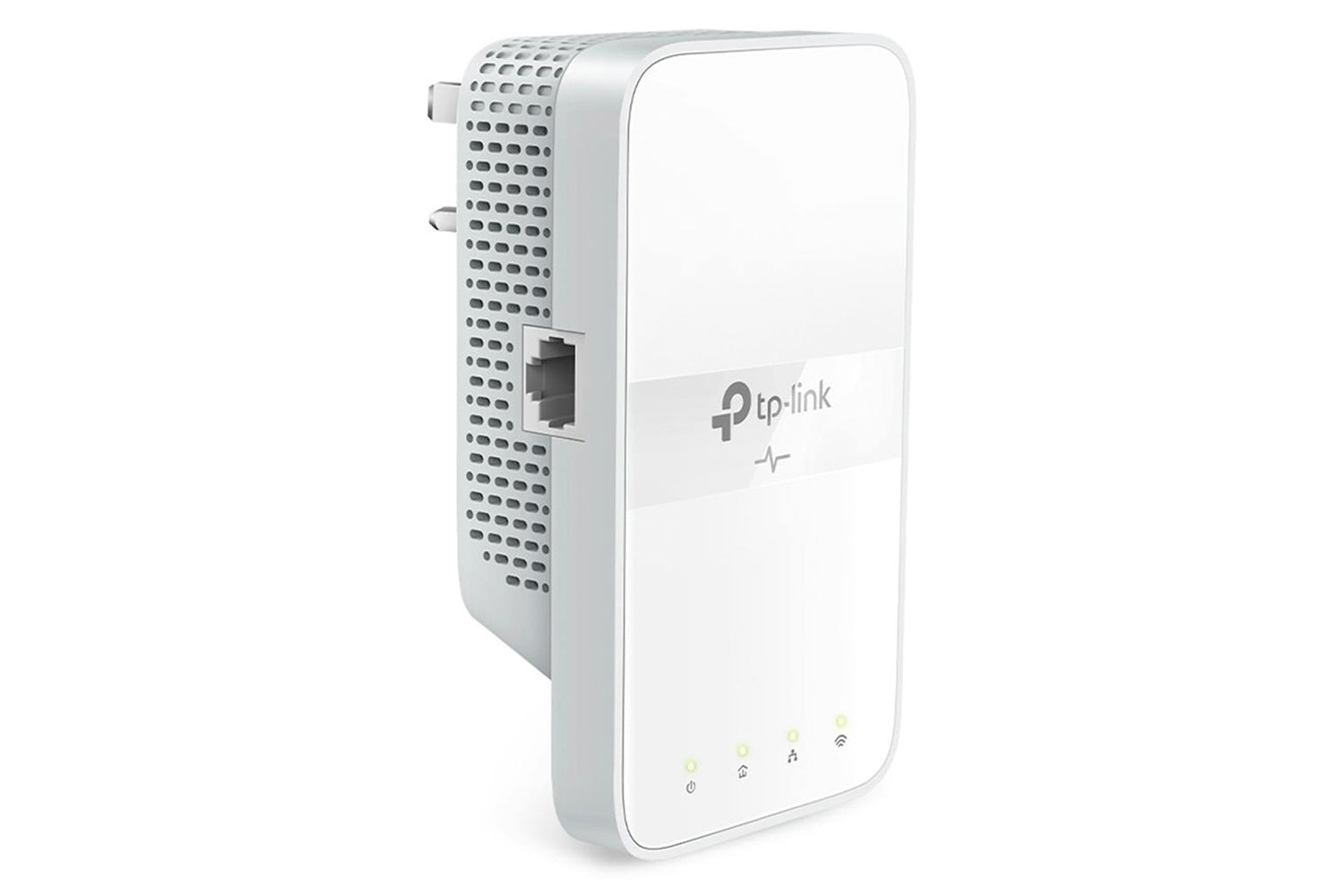

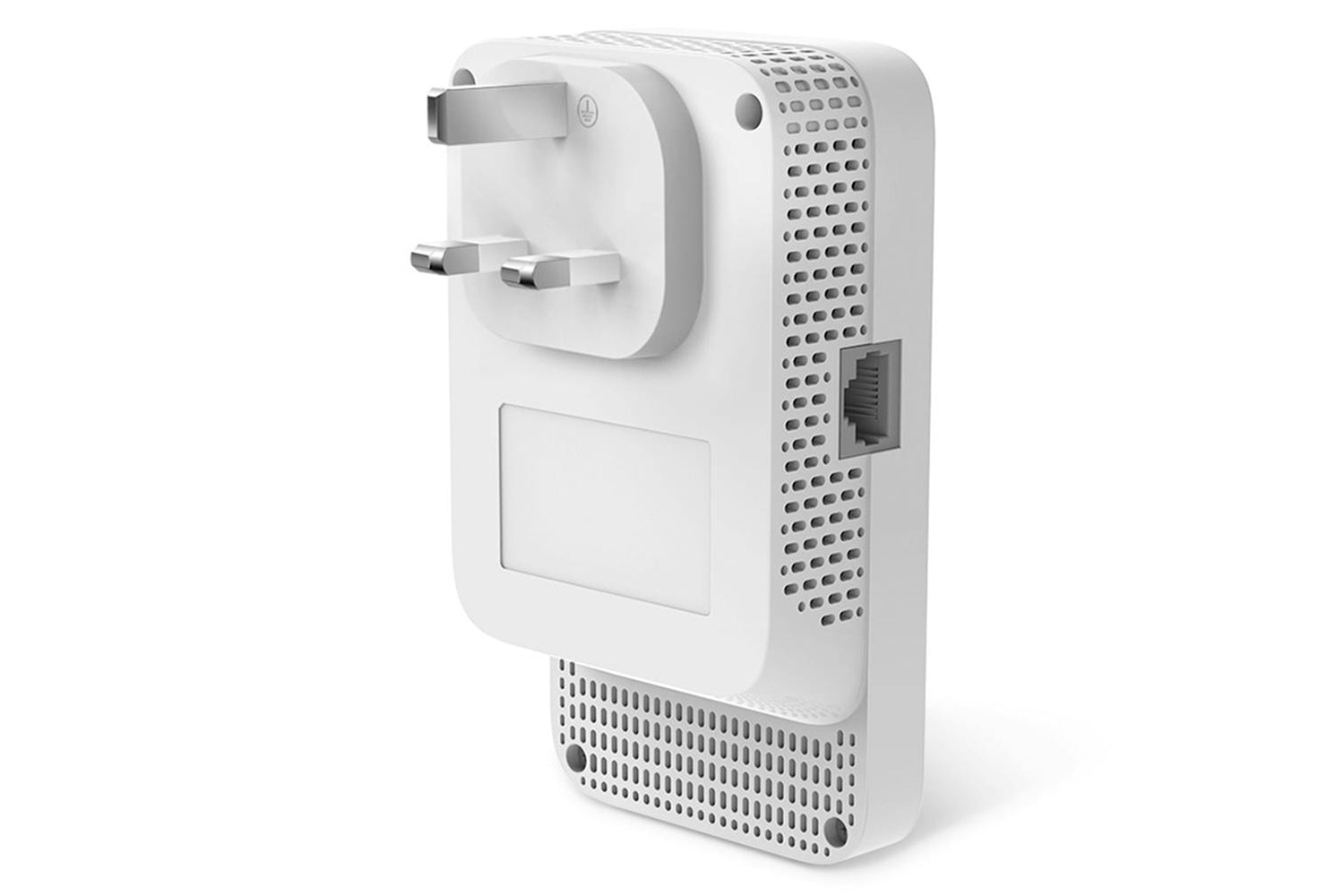

Appearance
Note:
*1. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
*2. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
*3. Maximum Powerline signal rates are the physical rates derived from HomeplugAV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and Powerline being located in a separate circuit.
Technical Features:
- Plug type: EU
- Standards and Protocols: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
- Interface: TL-WPA7617: 1 Ethernet Port
- Button: Pair, Reset, Wi-Fi Clone, LED On/Off
- Power consumption: Tl-WPA7617: maximum: 11W, typical: 6.5W
- LED indicator: Power, powerline, ethernet, wi-fi
- Range: Up to 300 meters/1000 feet over existing electrical wiring
- Compatibility: Compatible with all homeplug Av & Av2 standard powerline adapters
- Transmission speeds: Powerline: up to 1000 Mbps, ethernet: 10/100/1000 Mbps
- Wireless speeds: Up to 1200 Mbps
- Wireless security: Wireless: WPA-PSK / WPA2-PSK, WEP encrptions
- Management : Tpplc: scan the qr code to download tp-link tpplc app. or download new tpplc utility on pcs: www.tp-link.com.
- Modulation technology: OFDM (plc)
- Encryption : Powerline: 128-bit aes encryption
Specifications
General
-
Brand
- TP-Link
-
Product Category
- Internet Extenders
-
Product Type
- Wi-Fi Extender
-
Bundle Deals
- N
Certifications
-
Approved Certificates
- CE
- RoHS
Platform
-
Compatibility
- HomePlug AV & AV2 standard powerline adapters
Modems & Router Features
-
LED Indicator
- Yes
-
Other Security Features
- WPA-PSK / WPA2-PSK
- WEP Encrptions
Networking Features
-
Connectivity Technology
- Wireless & Wired
-
Interface
- Ethernet
-
Wireless Speed
- Up to 1200 Mbps
Operating & Storage Conditions
-
Humidity
- 10%~90%
-
Temperature - Max
- 40 °C
-
Temperature - Min
- 0 °C
USB Wi-Fi Adapaters Features
-
Encryption
- 128-bit AES
-
LED Indicator
- Power
- Powerline
- Ethernet
Extender Features
-
Data Transfer Rate
- 1000 Mbps
Dimensions
-
Width
- 70 mm
-
Depth
- 35 mm
-
Height
- 124 mm
