Expand Dual Band WiFi Everywhere

AC1200 Mesh WiFi Extender

Why Get a Mesh WiFi Extender?

Can’t get WiFi in your bedroom, balcony, bathroom?

Lose connection while walking around the house?

Thick walls and floors weaken your WiFi signal?

Get tired of too many network cables?

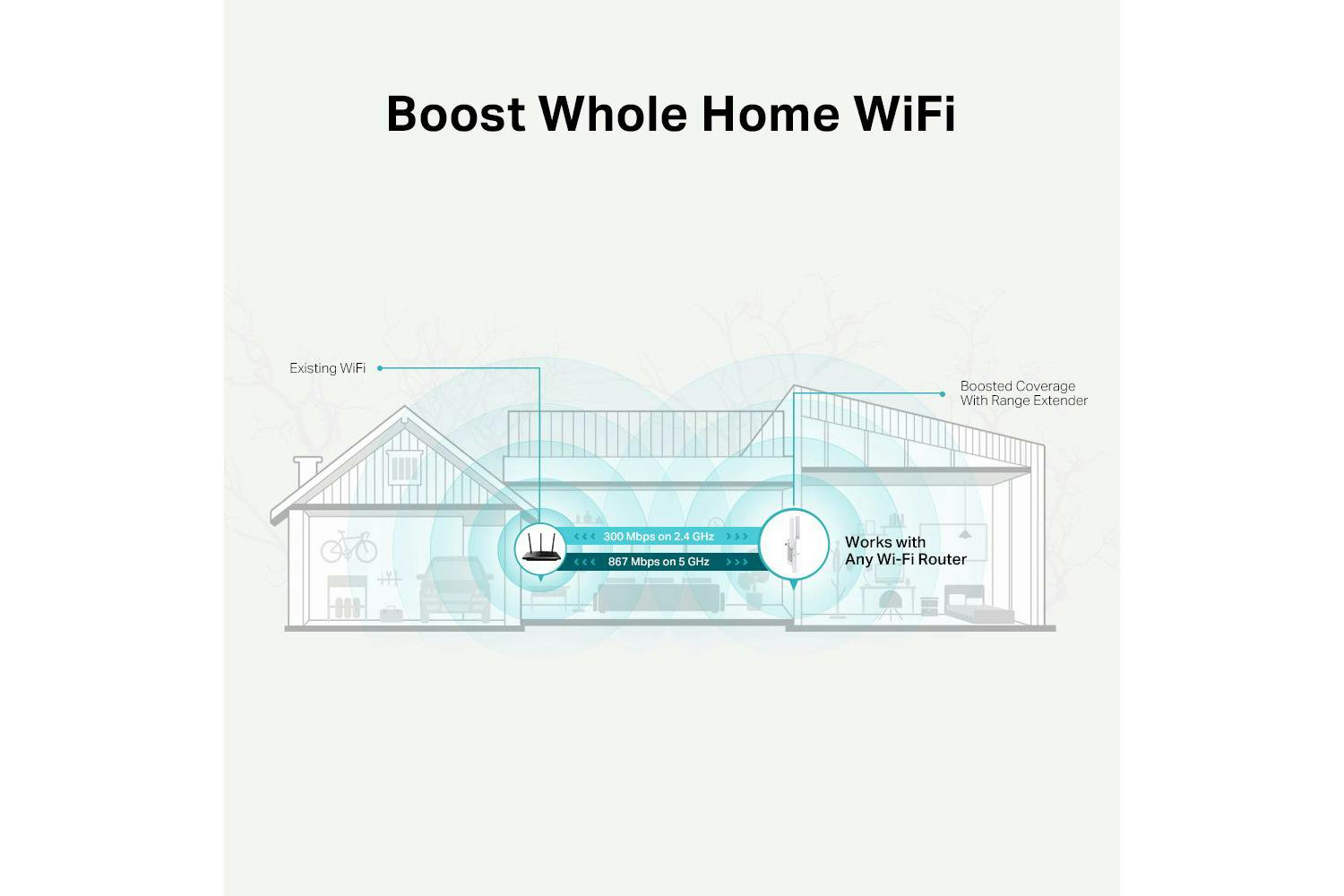

Boost whole Home WiFi with your Existing Router

A single router has limited WiFi coverage and always causes WiFi dead zones. RE315 wirelessly connects to your existing router and expands its WiFi signal into areas it can’t reach on its own. Enjoy your stable network experience wherever you are at home.

WiFi keeps Strongest for Unlimited Moving

With TP-Link Mesh Technology, it’s easy to form a Mesh network with a single WiFi name for seamless whole home coverage. Just connect RE315 to a OneMeshTM router. Always enjoy the strongest WiFi when you’re walking around with no need to search around for a stable connection.

Learn more about onemesh: https://www.tp-link.com/us/onemesh/

Check out the video:

Traditional Router with Extender

Check out the video:

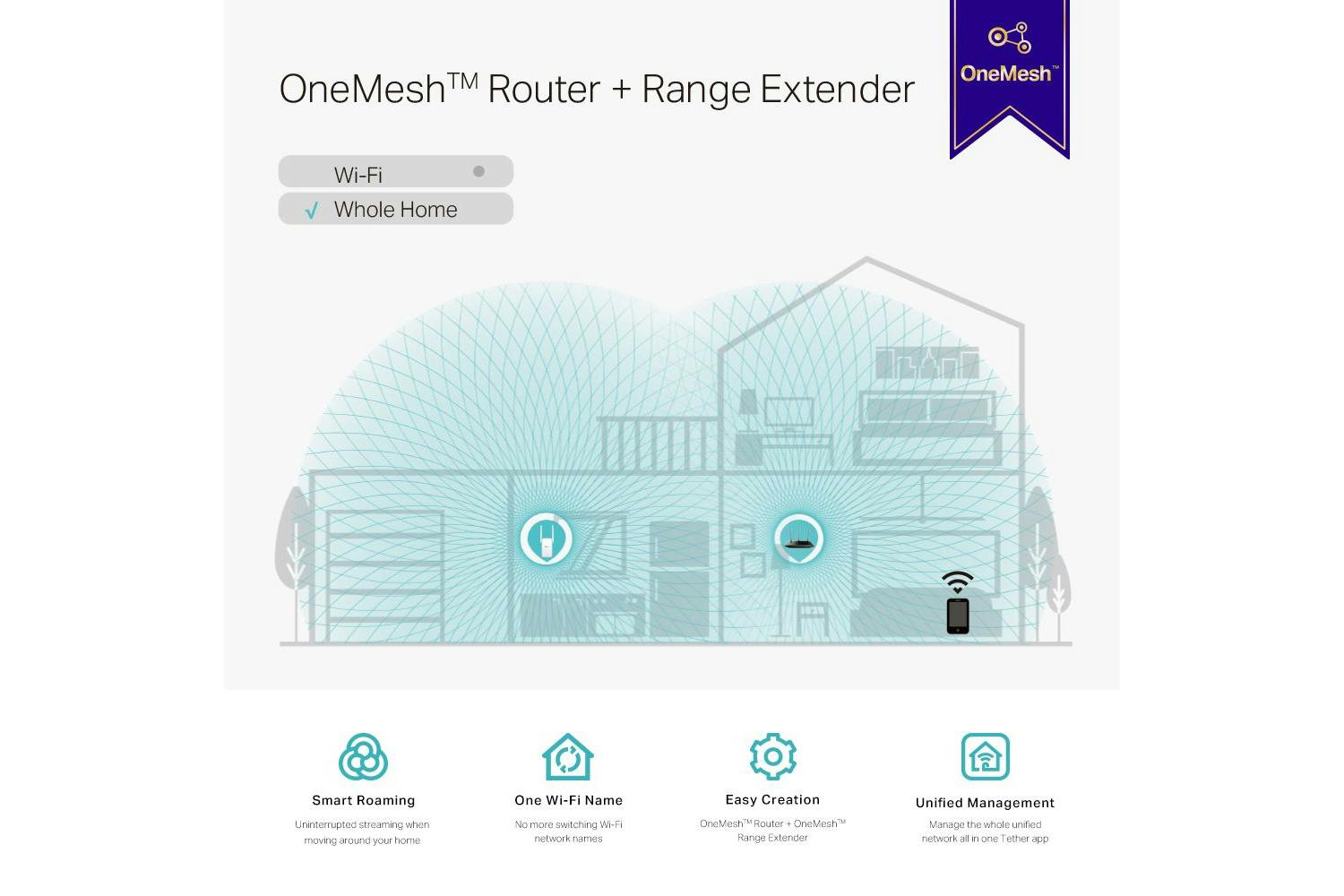

OneMesh Router + Range Extender

Enjoy a Mesh Network with Your Existing Router

Want a Mesh network? Hesitate on whether to replace your existing router and buy a Mesh set? TP-Link OneMesh resolves your dilemma.

Your Existing Router Like Archer C7 (V5.0 or above)

Update your existing TP-Link router’s firmware to OneMesh version—no need to replace it.

RE315

Connect the RE315 to the router.

Whole Home Mesh WiFi

Enjoy the Mesh network

Check whether your existing router supports OneMesh: https://www.tp-link.com/us/onemesh/product-list/

Faster Dual Band WiFi Up to 1200 Mbps

RE315 delivers dual band (2.4 GHz and 5 GHz) to transmit WiFi signals, doubling the performance of each band. It enables you to keep more devices connected at the same time with its 300 Mbps 2.4 GHz and 867 Mbps 5 GHz dual bands. Use the 2.4 GHz band to send email and browse the web and the 5 GHz band for gaming and HD streaming.†

Adaptive Path Selection: Keeps Itself Working at Top Speed

Adaptive Path Selection keeps your network running at optimal speeds by automatically choosing the fastest connection path to the router. Always keep your devices fast and stable—ideal for network environments crowded with many devices and applications.

High Speed Mode: Maximized Speed with Dedicated Backhaul

Uses one dedicated WiFi band as backhaul and another dedicated WiFi band as an access point to maximize the bandwidth on the extended WiFi.

Built-In Access Point Mode

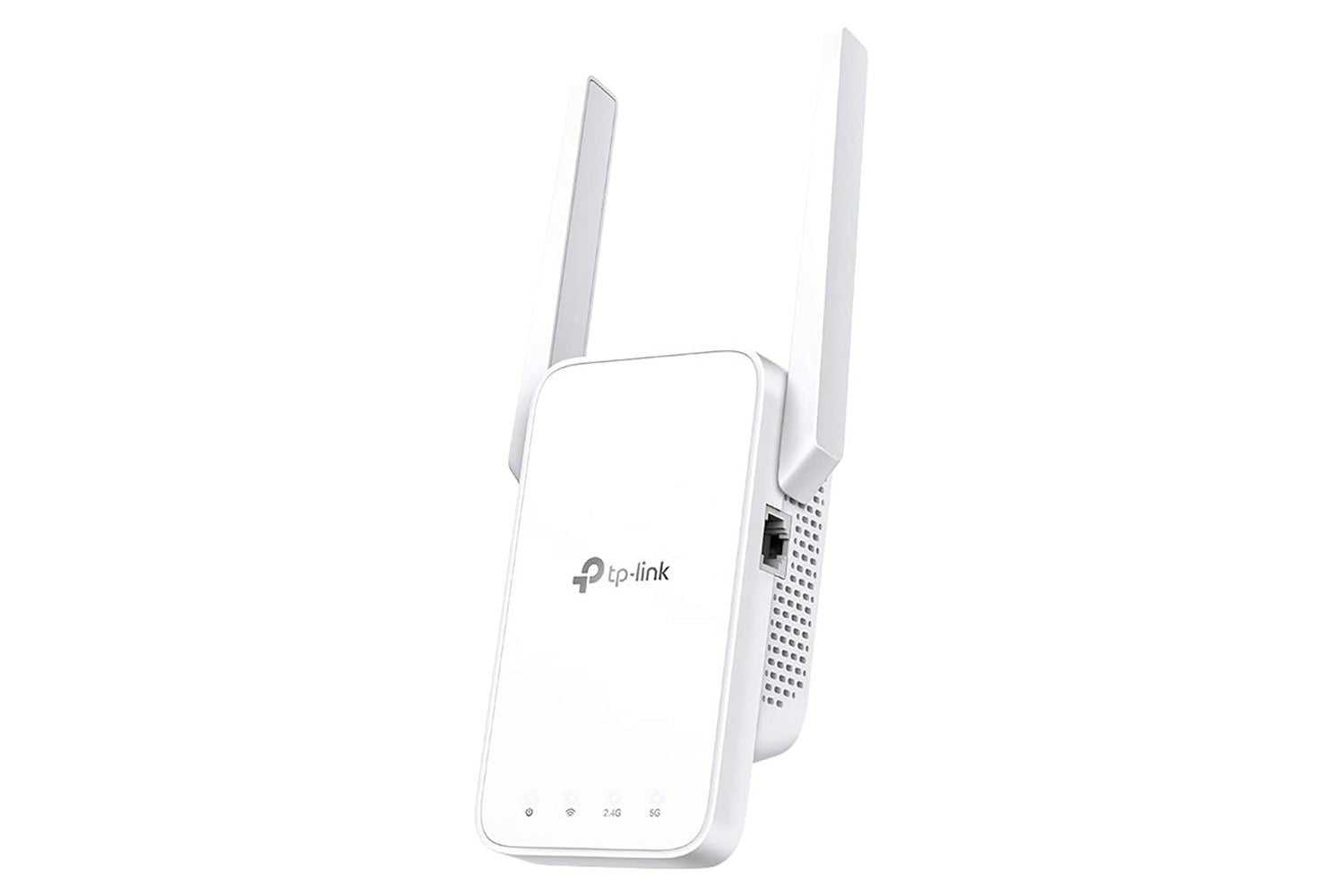

RE315 is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port and easily turn your wired internet connection into a 2×2 MIMO dual band wireless access point.

Secure One-Touch Connection for Easy Setup

Step 1: Simply press the WPS button on your router and, within 2 minutes, the WPS button on RE315 will connect to the network.Step 2: Once connected, place RE315 at the best location—without reconfiguration.

Find the Best Location with the Smart Signal Indicator

The smart signal indicator lets you see signal strength from the existing router at a glance. Easily to find the best place to position your range extender to extend your WiFi.

Control at your Fingertips

Set up and manage your WiFi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

Technical Specifications:

• Interface: 1 x 10/100m ethernet port (RJ45)
• Power consumption: 9.5W (max power consumption)
• Wireless standards: Ieee 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
• Frequency : 2.4Ghz & 5GHz(11ac)
• Wireless modes: Range extender/access point
• Wireless functions: Enable/Disable wireless radio, wireless statistics
• Wireless security: 64/128-Bit WEP, WPA/WPA-PSK2/WPA2-PSK2 encryptions
• Transmission power: 2.4 GHz ≤20dBm, 5 GHz ≤30dBm
• System requirements: Microsoft windows 98se, NT, 2000, XP, vista or windows 7, 8, 8.1, 10, mac os, Netware, Unix or Linux internet explorer 11, firefox 12.0, chrome 20.0, safari 4.0, or other java-enabled browser

Reception Sensitivity:

• 5 GHz: 11A 6Mbps: -94dBm, 11a 54Mbps: -77dBm
• 11Ac HT20 mcs0: -94dbm, 11AC HT20 mcs8: -71dBm
• 11Ac HT40 mcs0: -92dBm, 11ac HT40 mcs9: -66dBm
• 11Ac HT80 mcs0: -87Dbm, 11ac ht80 mcs9: -62dBm
• 2.4 GHz: 11G 54mbps: -78dBm, 11n ht20 mcs7: -76dBm
• 11N HT40 MCS7: -74dBm

Notes:

1.† maximum wireless signal rates are the physical rates derived from IEEE standard 802.11 specifications. actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.

2.‡ smart roaming is designed for devices that support the 802.11k/v standard.

3.§ the product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated.

Product Features:

• Eliminate weak signal areas with whole home wifi coverage
• 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) dual-band wifi connection ensures more stable wireless experience.†
• Creates a mesh network by connecting to a tp-link onemesh router for seamless whole-home coverage.‡
• Adaptive path selection – connects to the fastest connection path to the router automatically and runs at top-speed
• High speed mode – maximizes speed by using one wifi band as dedicated backhaul, ideal for HD streaming and gaming
• AP mode – create a new Wi-Fi access point to enhance your wired network with wi-fi capability
• Smart signal indicator - helps to fi­nd the best location for optimal wi-fi coverage by showing the signal strength
• Push the WPS button to easily connect to the router and you can uniformly manage from the tether app or web UI
• Works with any Wi-Fi router or wireless access point.§
• Smart Roaming‡: Uninterrupted streaming when moving around your home
• One WiFi Name: No more switching WiFi network names
• Easy Creation: OneMesh Router + OneMesh Range Extender
• Unified Management: Manage the whole unified network all in one Tether app
