Smeg 90cm Decorative Wall Mount Hood | KV694R | Black

KV694R

Description

keyboard_arrow_down
Design

The 90 cm vertical hood in Dolce Stil Novo aesthetics is equipped with a reduced depth that ensures maximum freedom of movement in the kitchen. With an elegant black glass surface interspersed with copper inserts and backlit touch controls, it matches perfectly with other appliances in the Dolce Stil Novo aesthetic.

Suction

The Dolce Stil Novo vertical hood is equipped with three suction speeds as well as an intensive speed, which reaches 820 m³ / h while maintaining a noise level between 47 and 70 dB. In addition, it is also possible to install the hood with an extraction outlet on the rear wall.

Check out the video:
Lights

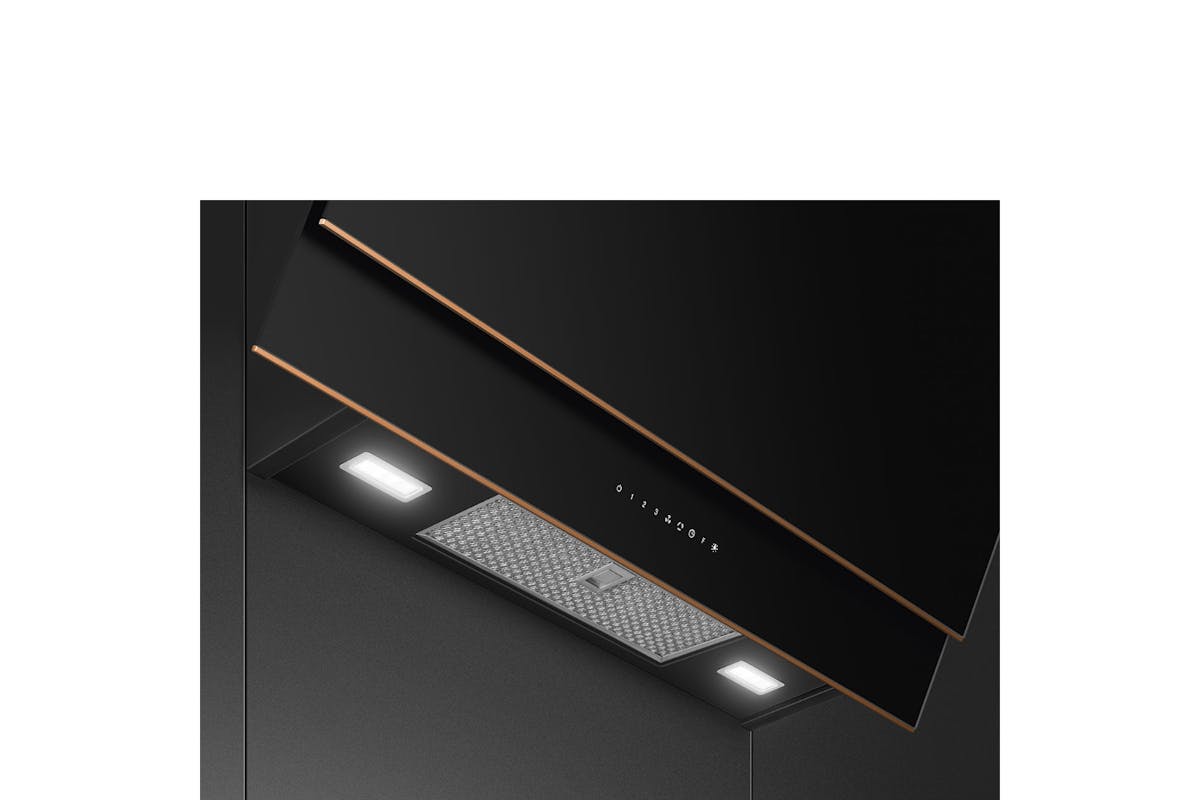

The Dolce Stil Novo vertical hood is equipped with LED lights. The light can be switched on independently of the suction fan and thus allow to illuminate the work surface. The intensity of the light is adjustable using the dimmering function, it is also possible to adjust the gradient of the light temperature from cold white to warm white.

Check out the video:
Smart Connection

Thanks to the Auto-Vent 2.0 system it is possible to connect the hob to the hood. So all that remains is to concentrate on what you are cooking and the hood will automatically activate and adjust the suction power from time to time thanks to a special function algorithm. Furthermore, it will be possible in any case to control the hood directly from the hob via a specific dedicated touch control.

Check out the video:
Filters Cleaning

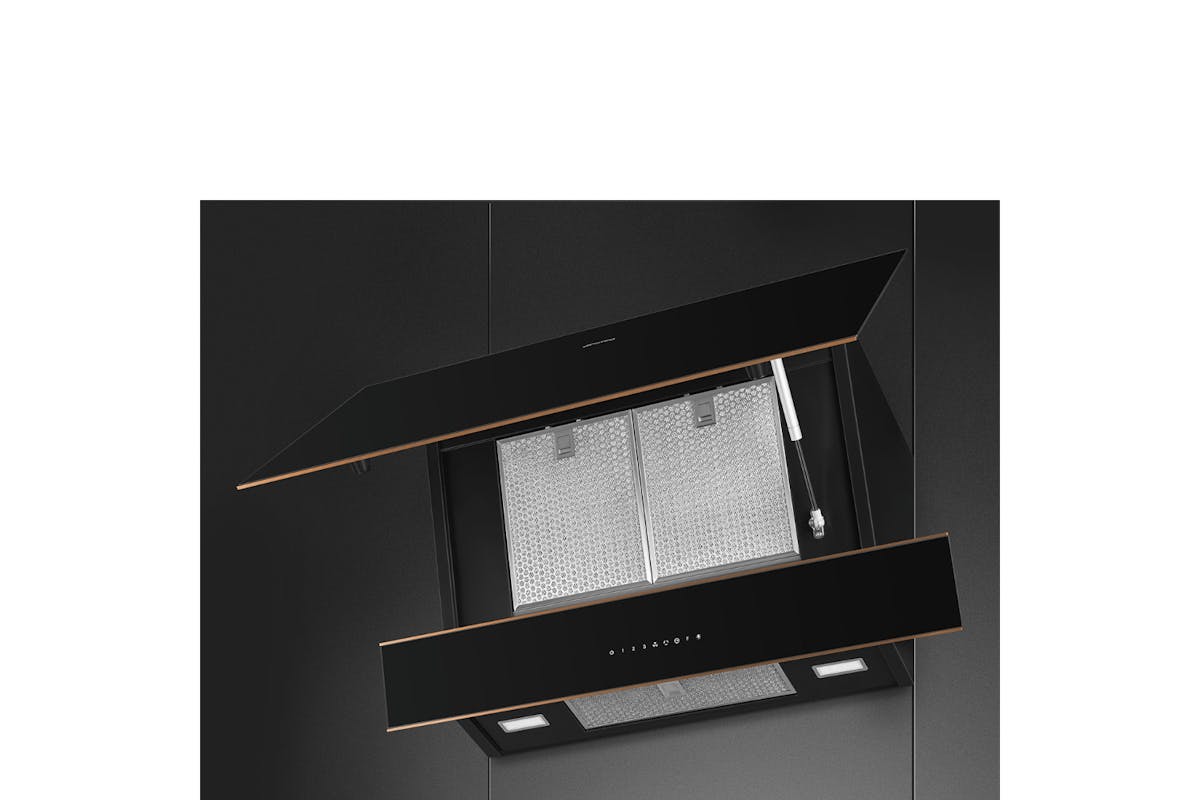

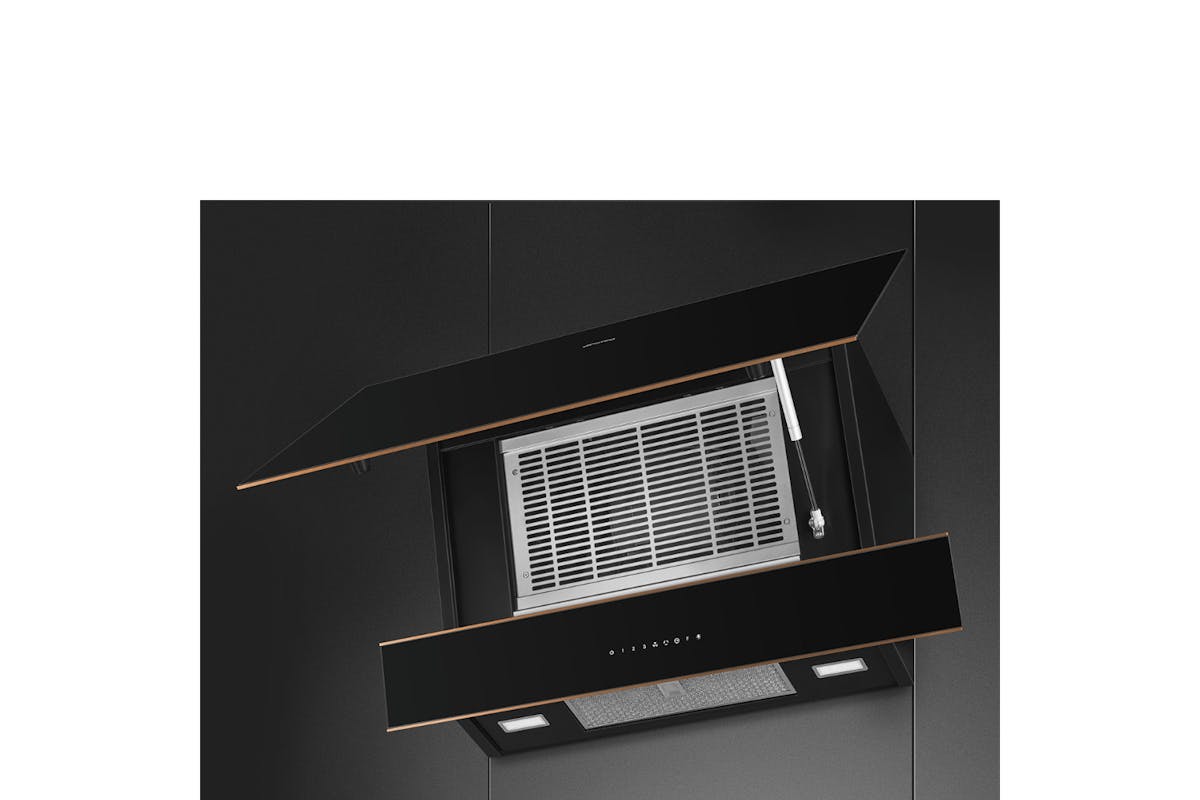

The Dolce Stil Novo vertical hood is equipped with stainless steel grease filters that purify the air from cooking fats and activated carbon filters that guarantee perfect odor elimination. By means of a light signal, the hood will signal when it is necessary to replace the filters.

Clean Air

The 24h air exchange function makes the hood work for 10 minutes every hour at very low speed and therefore without noise for a total of 24 hours in order to purify the air of the house, with low energy impact.

Peripheral Extraction

The extraction of the hood is concentrated on the peripheral area, so as to allow a bigger extraction surface and offer a better level of silence, limiting the vibrations of the filters.

Intensitive Function

The intensive function allows to operate the hood at maximum power, to speed up the elimination of the most persistent odors and to have a purified environment.

Adjustable Light Intensity

With the Dimmering function it is possible to raise or lower the intensity of the hood light by holding down the light button.

Charcoal Filters

Fundamental components of the filter hood, the activated carbon filters guarantee the absorption of fats and vapors and a perfect elimination of odors.

Product Features:
  • Electrical connection rating: 279 W
  • Frequency (Hz): 50-60 Hz
  • Voltage: 220-240 V
  • Power supply cable length: 1500 mm
  • Control setting: Touch control back-lighted White
  • Time-setting options: Automatic switch-off
  • No. of speeds: 3
  • Light color temperature range: 2700° - 4000° °K

Specifications

keyboard_arrow_down

  • Brand
    • Smeg

Warranty

  • Warranty
    • 24 months

Dimensions

  • Weight
    • 20 kg
  • Width
    • 895 mm
  • Depth
    • 439 mm
  • Height
    • 459 mm

Hood Features

  • Surface Material
    • Glass
  • Fan Speeds
    • 3
  • Max. Air Movement
    • 621 m3/h
  • Filter Type
    • Grease
    • Charcoal
  • Filter Numbers
    • 2
  • Filter Material
    • Stainless Steel
  • Fan Control
    • Electronic
  • Light Control
    • Electronic
  • Light Numbers
    • 2
  • Light Type
    • LED
  • Hood Type
    • Wall Mounted

General

  • Product Type
    • Range Hood
  • Product Colour
    • Black
  • Product Category
    • Home Appliances

Cooker and Range Hoods Filter Spec

  • Colour
    • Black
  • Brand Name
    • Smeg
  • Width
    • 895 mm
  • Depth
    • 439 mm
  • Max Extraction
    • 777 m3/h
  • Energy Rating (Cooker & Range)
    • A+
  • Range Hood Type
    • Wall Mounted
