Description
ECO Motor: The Heart of Every Cooker Hood
The heart and soul of every cooker hood is the motor. Some Miele cooker hoods feature ECO motors which work up to 70 % more economically than conventional motors. They are also very quiet but still as powerful as the motors in other Miele cooker hoods.
Stainless Steel Grease Filters (10-Layer): Aesthetically Pleasing and Highly Functional
Miele cooker hoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discoloration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
Miele Cleancover: Convenience and Safety in Detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
Silence: Performance and Convenience as Standard
Efficient and very quiet. The motor, chimney and cooker hood canopy are equipped with special insulation for effective sound-proofing. You can have a normal conversation even with high air throughput.

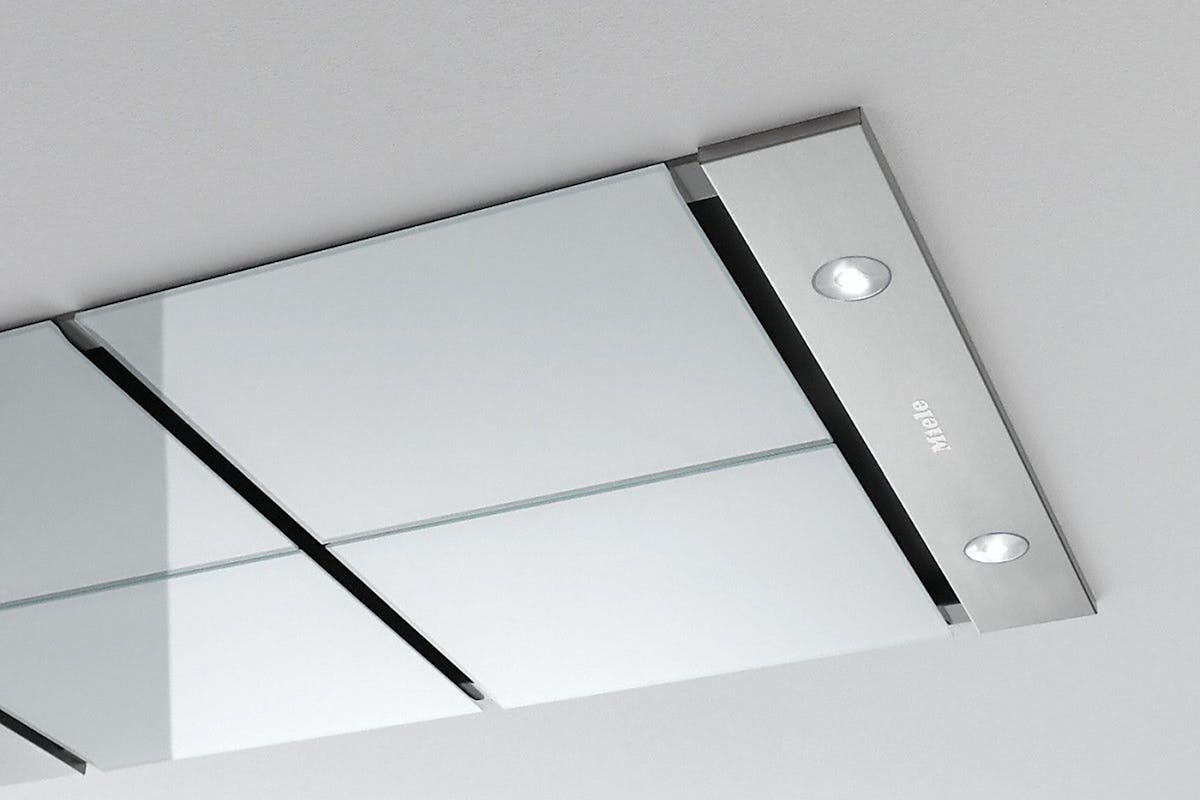

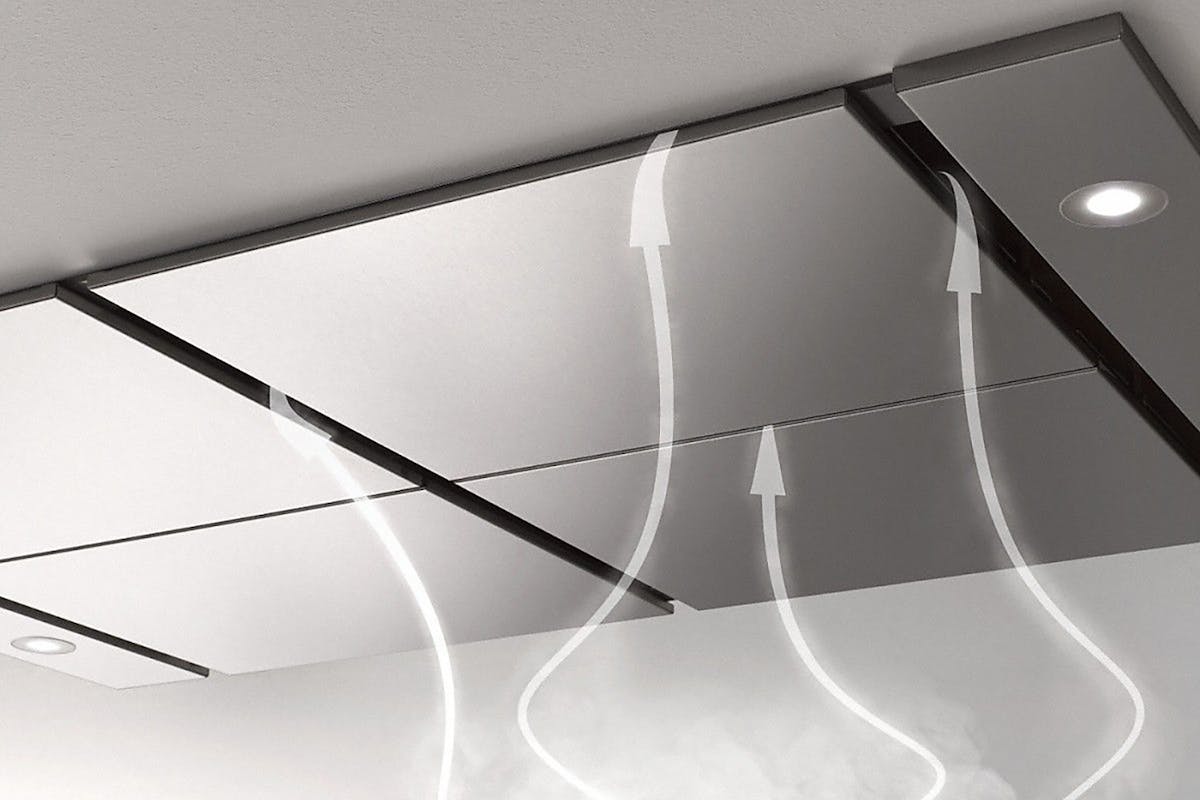

Edge Extraction: Decorative Individual Panels to Conceal the Filters
In cooker hoods with edge extraction panels, the commercial-looking metal grease filters are hidden behind a decorative cover. The cooking vapours are drawn in at the outer edges.
Active Airclean Filter: A Completely Odour-Free Kitchen
To remove odours with a Miele recirculation cooker hood, you can use an active charcoal filter. This disposable filter has to be replaced on a regular basis.
Safety Switch-Off: Always on the Safe Side
The cooker hood will switch off automatically after 10 hours. This ensures maximum safety even in the event of operating errors.
Run-on Function: Automatic Fan Run-on
The automatic fan run-on ensures the full extraction of steam and odours still in the air after cooking. The cooker hood can be set to switch off automatically after 5 or 15 minutes.
Filter Indicator: Countdown Time Conveniently in View
If the grease or active charcoal filter of your Miele cooker hood is saturated, it is indicated by a lit-up red LED. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.
Operating Modes:
- Type of air guide: Convertible
- Recirculation conversion kit (order separately): DUU 2900
- Decor elements in glass (order separately): DRP 2900
User Convenience:
- Light-touch controls
- Power levels (excluding booster levels): 3
- Programmable booster level switch-off
- Run-on time: 5 / 15 min
- Grease filter saturation indicator programmable
- Active charcoal filter saturation indicator programmable
- Silence package
Cleaning Convenience:
- Easy-to-clean canopy interior: CleanCover
Efficiency and Sustainability:
- Annual energy consumption in kWh/year: 36.1
- ECO package
Filter System:
- Number of dishwasher safe stainless steel grease filters: 4
Lighting:
- Number x W: 4 x 3 W
- Light intensity in Lx: 200
- Colour temperature in K: 3500
Fan:
- Dual-action fan
- ECO motor (DC motor)
Air Throughput with Max. Duct Diameter in Extraction Mode (not for External Version):
- Air throughput in level 1 (m³/h): 220
- Air throughput in level 2 (m³/h): 300
- Air throughput in level 3 (m³/h): 450
- Air throughput in booster level 1 (m³/h): 740
- Sound power in level 1 (dB(A) re 1 pW): 42
- Sound power in level 2 (dB(A) re 1 pW): 48
- Sound power in level 3 (dB(A) re 1 pW): 57
- Sound power in booster level 1 (dB(A) re1pW): 69
- Sound pressure in level 1 (dB(A) re 20 µPa): 24
- Sound pressure in level 2 (dB(A) re 20 µPa): 31
- Sound pressure in level 3 (dB(A) re 20 µPa): 40
- Sound pressure in booster level 1 (dB(A) re20µPa): 52
Air Throughput in Recirculation Mode:
- Air throughput in level 1 (m³/h): 140
- Air throughput in level 2 (m³/h): 210
- Air throughput in level 3 (m³/h): 330
- Air throughput in booster level 1 (m³/h): 480
- Sound power in level 1 (dB(A) re 1 pW): 53
- Sound power in level 2 (dB(A) re 1 pW): 59
- Sound power in level 3 (dB(A) re 1 pW): 66
- Sound power in booster level 1 (dB(A) re1pW): 73
- Sound pressure in level 1 (dB(A) re 20 µPa): 35
- Sound pressure in level 2 (dB(A) re 20 µPa): 41
- Sound pressure in level 3 (dB(A) re 20 µPa): 49
- Sound power in booster level 1 (dB(A) re1pW): 56
Technical Data:
- Overall height for extraction mode and external mode cooker hoods in mm: 310 - 310
- Overall height for recirculation mode cooker hoods in mm: 310 - 310
- Minimum height above electric hobs in mm: 550
- Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm: 650
- Hard-wired connection
- Total rated load in kW: 0.14
- Voltage in V: 230
- Fuse rating in A: 10
- Frequency in Hz: 50
- Number of phases: 1
Installation:
- Extraction ducting connection at top
- Extraction ducting connection on side
- Extraction ducting connection at top, rear, and side
- Diameter of extraction ducting connection in mm: 150
Included:
- Non-return flap
- Remote control
Product Features:
- Multi-zone edge extraction
- Safety switch-off
- Elegant design - harmonious in the kitchen environment
- Convenient operation – remote control
- Powerful - 740m3/h on the booster setting
- Energy-efficient and quiet - powerful ECO motor
- Variable: Edge extraction panels made of glass or stainless steel
Specifications
-
Brand
- Miele
Warranty
-
Warranty
- 24 months
Dimensions
-
Weight
- 24 kg
-
Width
- 1100 mm
-
Depth
- 700 mm
-
Height
- 322 mm
Hood Features
-
Surface Material
- Stainless Steel/Glass
-
Ventilation Included
- Ducted
- Recirculated
-
Fan Speeds
- 3
-
Max. Air Movement
- 450 m3/h
-
Max. Decibel Rating
- 57 dB
-
Filter Type
- Charcoal
-
Filter Numbers
- 4
-
Filter Material
- Stainless Steel
- Grease
-
Fan Control
- Electronic
- Remote
-
Light Control
- Remote
- Electronic
-
Light Numbers
- 4
-
Light Type
- LED
-
Hood Type
- Ceiling
General
-
Product Type
- Ceiling Hood
-
Product Colour
- Stainless Steel
-
Product Category
- Home Appliances
Miele Cooker hoods
-
Design
- Ceiling Hoods
-
Operating mode
- Extraction Mode
- Recirculation Mode
- Convertible
Cooker and Range Hoods Filter Spec
-
Colour
- Stainless Steel
-
Brand Name
- Miele
-
Width
- 1100 mm
-
Depth
- 700 mm
-
Max Extraction
- 450 m3/h
-
Venting Type
- Ducting or Recirculation
-
Energy Rating (Cooker & Range)
- A+
-
Range Hood Type
- Ceiling
