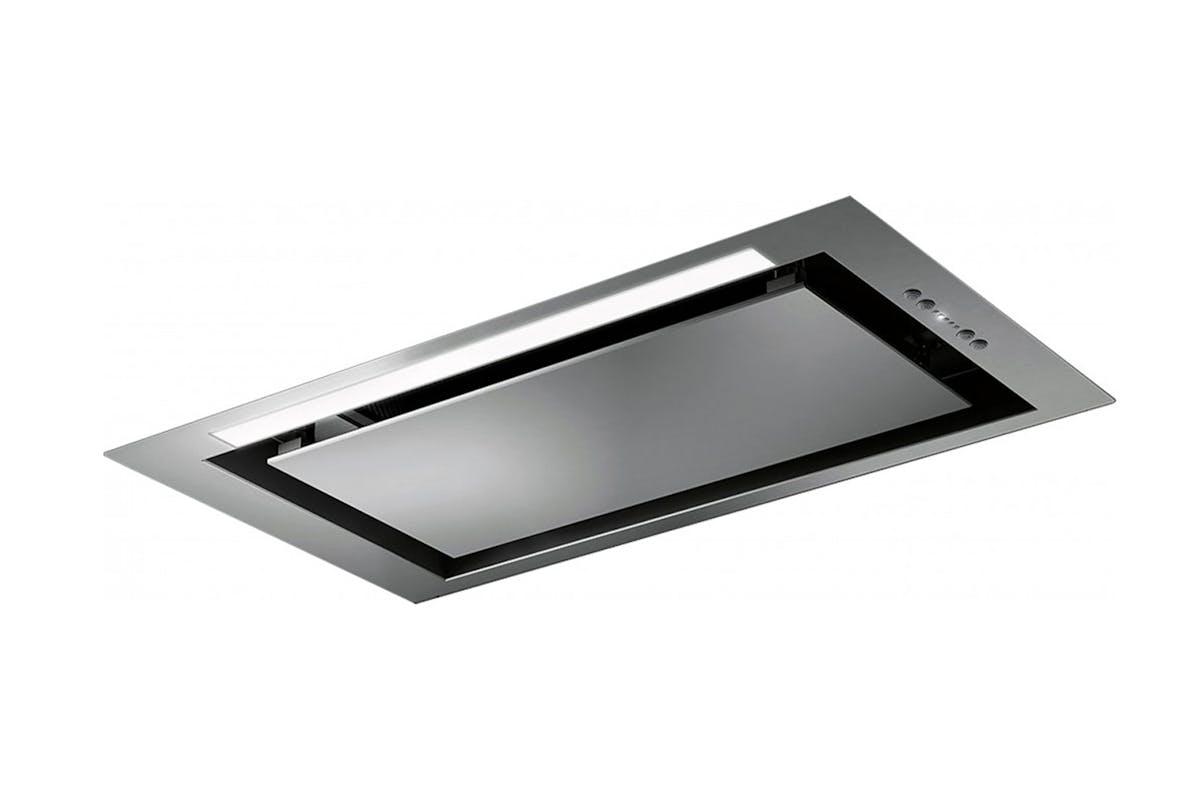

Elica 90cm Hidden Integrated Chimney Hood | HIDDENIX/A/90

HIDDENIX/A/90
  • Elica 90cm Hidden Integrated Chimney Hood | HIDDENIX/A/90-1
  • Elica 90cm Hidden Integrated Chimney Hood | HIDDENIX/A/90-2
  • Elica 90cm Hidden Integrated Chimney Hood | HIDDENIX/A/90-3
  • Elica 90cm Hidden Integrated Chimney Hood | HIDDENIX/A/90-4
  • Elica 90cm Hidden Integrated Chimney Hood | HIDDENIX/A/90-1
  • Elica 90cm Hidden Integrated Chimney Hood | HIDDENIX/A/90-2
  • Elica 90cm Hidden Integrated Chimney Hood | HIDDENIX/A/90-3
  • Elica 90cm Hidden Integrated Chimney Hood | HIDDENIX/A/90-4

Description

keyboard_arrow_down

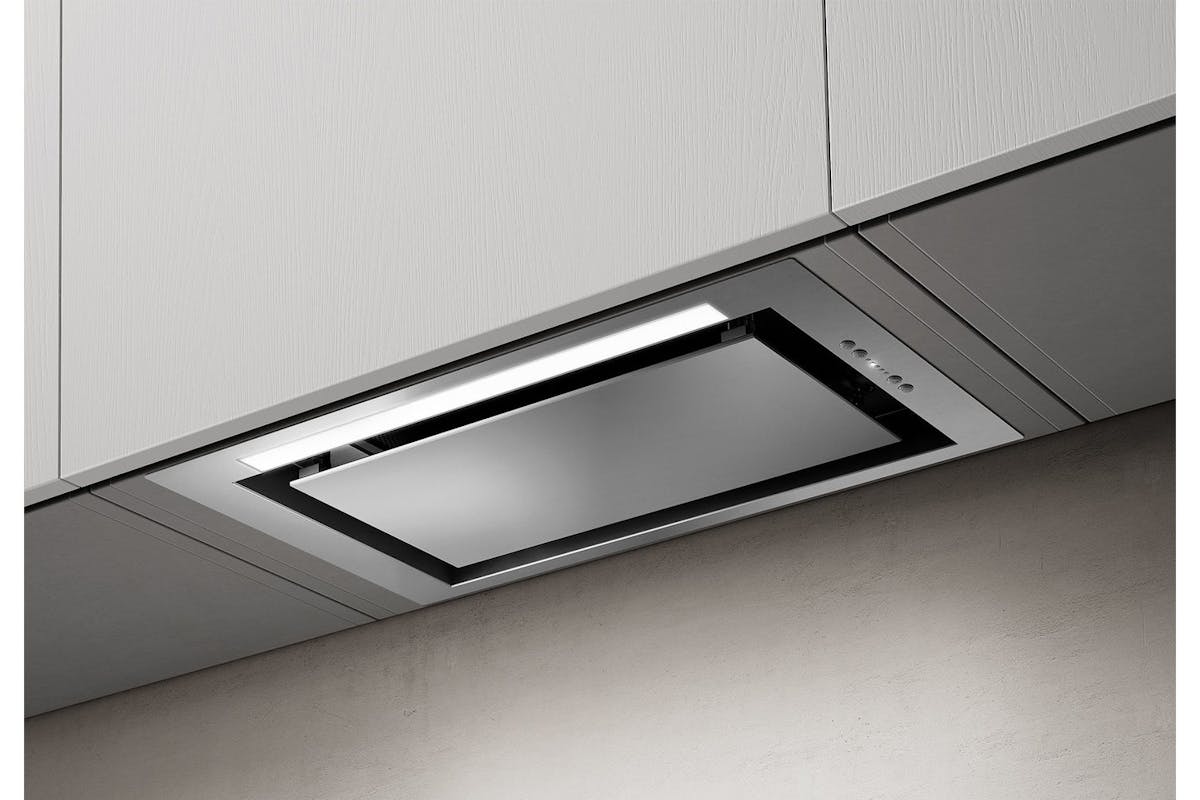

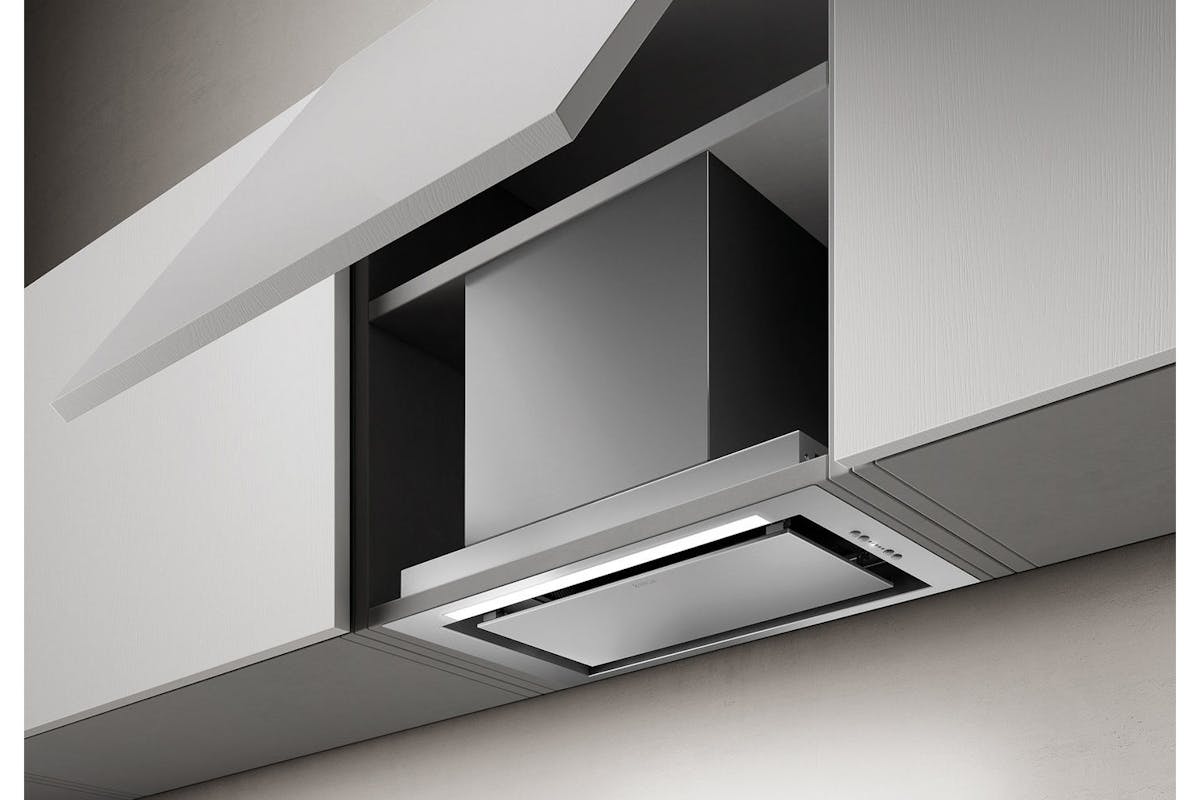

Hidden is the concealed extractor hood of Elica offering new design solutions in kitchens with a minimalist style. Hidden offers excellent performance, with extraction up to 475 cubic metres. It is available in the stainless steel and stainless steel/white glass finishes, with LED diffused lighting and touch controls. With Hidden, total efficiency is elegantly enclosed in the cabinet.

Performance

Excellent performance for models equipped with this plus. High fume capturing capacity with an aspiration range between 600 and 700m³/h. With a noise level between 60-65db(A) at maximum speed.

Total Integration

The total look trend is becoming increasingly popular in kitchens now, guaranteeing a uniform, linear design with respect to the space. The Total Integration products have been designed to be seamlessly integrated into the kitchen whilst maintaining harmony with the surroundings.

Super Easy Installation

With the exclusive Elica system, installation can be done in total safety in just a few steps, safeguarding the look of the product and the space in which it is positioned. After the hood is automatically locked in position, the fastening points can be finely adjusted to preserve the linear design of the kitchen and ensure perfect integration of the hood in the room. A simple, hard-wearing and safe solution.

Long Life Filter

To ensure the best performance and long-term duration of your hood, the traditional filters must be replaced every 3-6 months. To simplify the maintenance operations, Elica has designed the innovative, regenerable Long Life odour filter which lasts up to three years. Just wash it with hot water and neutral soap or in the dishwasher at 65° and dry it in the oven at 100° for ten minutes every two months to keeping it looking good as new. The level of efficiency is about 60%.

Multi-D Capture

If you like a challenge when cooking and need highly efficient extraction capabilities, Elica has developed the Multi-d capture solution. The extraction is divided over multiple areas to guarantee the best fume capture capability. The fluid dynamic system allows you to increase the extraction speed by suitably sizing the surfaces through which the air passes. This guarantees a high cooking fume-capture efficiency through an increase in the negative pressure along the outside of the product.

Easy Maintenance

Keeping your hood clean not only ensures maximum hygiene in the kitchen but also long life for the product. The Elica models are designed with materials and finishes for instant maintenance operations. All the components, such as the grease and odour filters, can be easily accessed and removed so they can be washed or rapidly replaced.

Smart Installation

Elica thinks of every aspect of the product, taking into great consideration even the installation phase of a hood, be it wall-mounted or recessed, or an aspiration hob. Assembly and connection operations are simple and intuitive.

Product Features:
  • Version: Duct out
  • Lighting: Strip LED 1x7 W 3500 K
  • Controls: 3s+B electronic push button
  • Min-max airflow: 300-800 m³/h
  • Min-max noise level: 51-67 db(A)
  • Total absorption: 277 W
  • Duct size: 150 mm

Specifications

keyboard_arrow_down

  • Brand
    • Elica

Warranty

  • Warranty
    • 24 months

Hood Features

  • Surface Material
    • Stainless Steel
  • Fan Speeds
    • 3
  • Max. Air Movement
    • 800 m3/h
  • Max. Decibel Rating
    • 67 dB
  • Filter Type
    • Grease
  • Filter Numbers
    • 2
  • Filter Material
    • Aluminium
  • Fan Control
    • Push Button
  • Light Control
    • Push Button
  • Light Numbers
    • 1
  • Light Type
    • LED
  • Hood Type
    • Integrated

General

  • Product Type
    • Chimney Hood
  • Product Colour
    • Stainless Steel
  • Product Category
    • Home Appliances

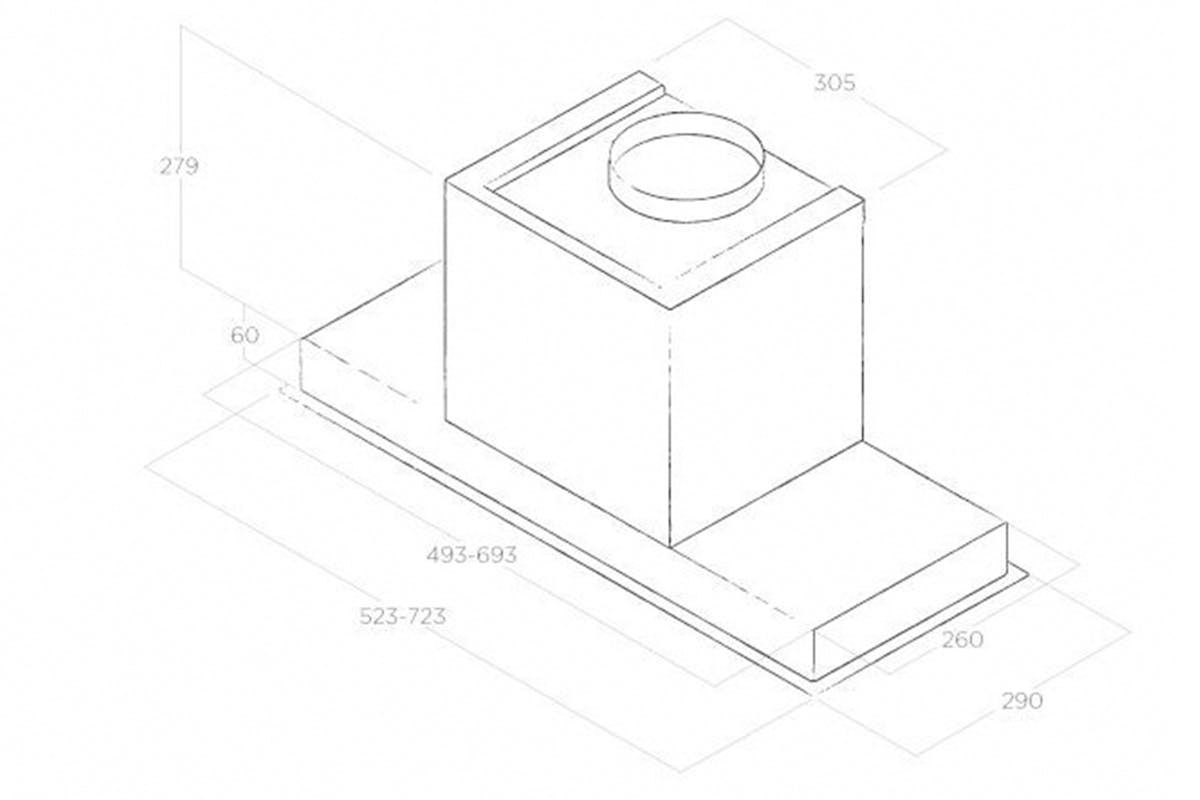

Dimensions

  • Width
    • 723 mm
  • Depth
    • 282 mm
  • Height
    • 339 mm

Cooker and Range Hoods Filter Spec

  • Colour
    • Stainless Steel
  • Brand Name
    • Elica
  • Width
    • 723 mm
  • Depth
    • 282 mm
  • Max Extraction
    • 800 m3/h
  • Venting Type
    • Ducting
  • Energy Rating (Cooker & Range)
    • A
  • Range Hood Type
    • Chimney
