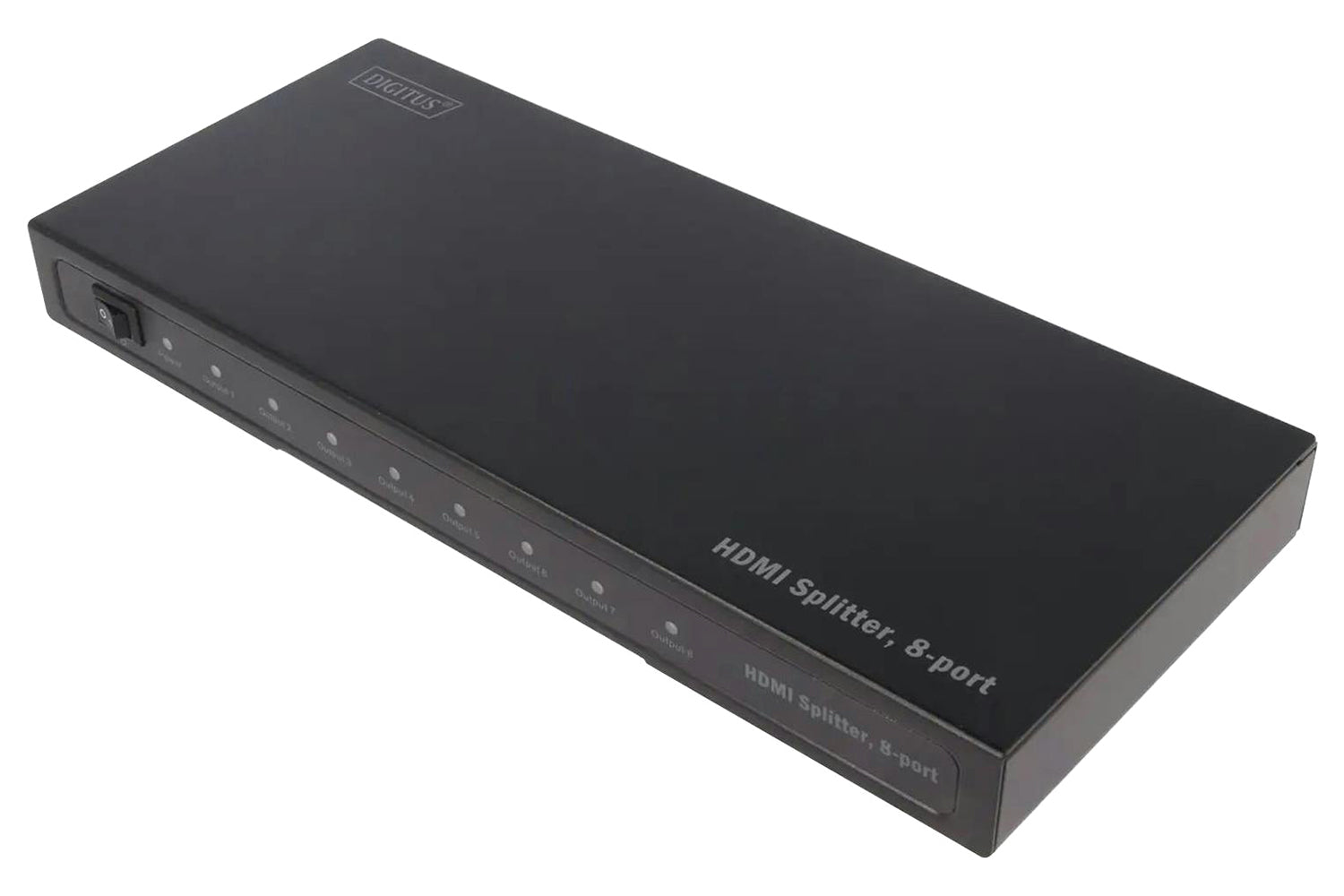

The Digitus 8-Port HDMI Splitter allows you to distribute video signals to up to eight playback devices (TVs, displays, monitors, projectors, etc.). It supports video resolutions of up to 1080p (Full HD). It provides the ideal solution for professional applications, such as video wall presentations or product launches (offices/business spaces, trade fair exhibits, display windows, waiting rooms, restaurants/cafés, etc.). The splitter can be cascaded to one level and up to eight additional HDMI 8-Port Splitters can be connected in order to display the signal on a maximum of 64 playback devices.

Splitting of HDMI Video Signals to up to Eight Output Devices (TVs, Monitors, Displays)

• Splitting of HDMI video signals to up to eight playback devices
• Video resolution: 1920 x 1200, 1080p
• Supports Standard HDMI
• Supports HDCP
• Supports compressed audio formats, for example, DTS Digital, Dolby Digital (including DTS-HD and Dolby TrueHD)
• Cascadable (one level) to up to 64 HDMI ports

Product Features:

• Status LEDs (connection status)
• External power supply unit (5V/3A)
• Supports deep color: 12 bits per channel
• Supports uncompressed audio formats (LPCM, etc.)
• Bandwidth of 225 MHz/2.25 Gbps per channel (6.75 Gbps across all channels)
• Supports all 3D formats, including 1080p 24 Hz, 720p 60 Hz/50 Hz
• Video resolution: 1920 x 1080. suitable for 480i, 576i, 1080i, 480p, 576p, 720p, 1080p.
• HDTV resolution max.: 1920 x 1200 Pixel, 60Hz
• HDTV standard: Full HD
• Signal input: HDMI
