Description
The Super-Quiet Hood
The quieter your hood, the more you can focus on preparing your meals, or enjoying your kitchen conversations. That’s why our especially silent feature keeps noise levels to a minimum. It’s perfect for eat-in kitchens and open-plan areas – you'll hardly even know the hood is working.
Our Grease Filter Creates a Consistently Fresh Ambience Before, During and After Cooking
Ducted and recirculation hoods require metal grease filters to filter grease and other solid particles out of the extracted air. To keep these filters operating at maximum efficiency, clean them about once a month either by hand or in the dishwasher.
Ultra-Efficient Hood Control

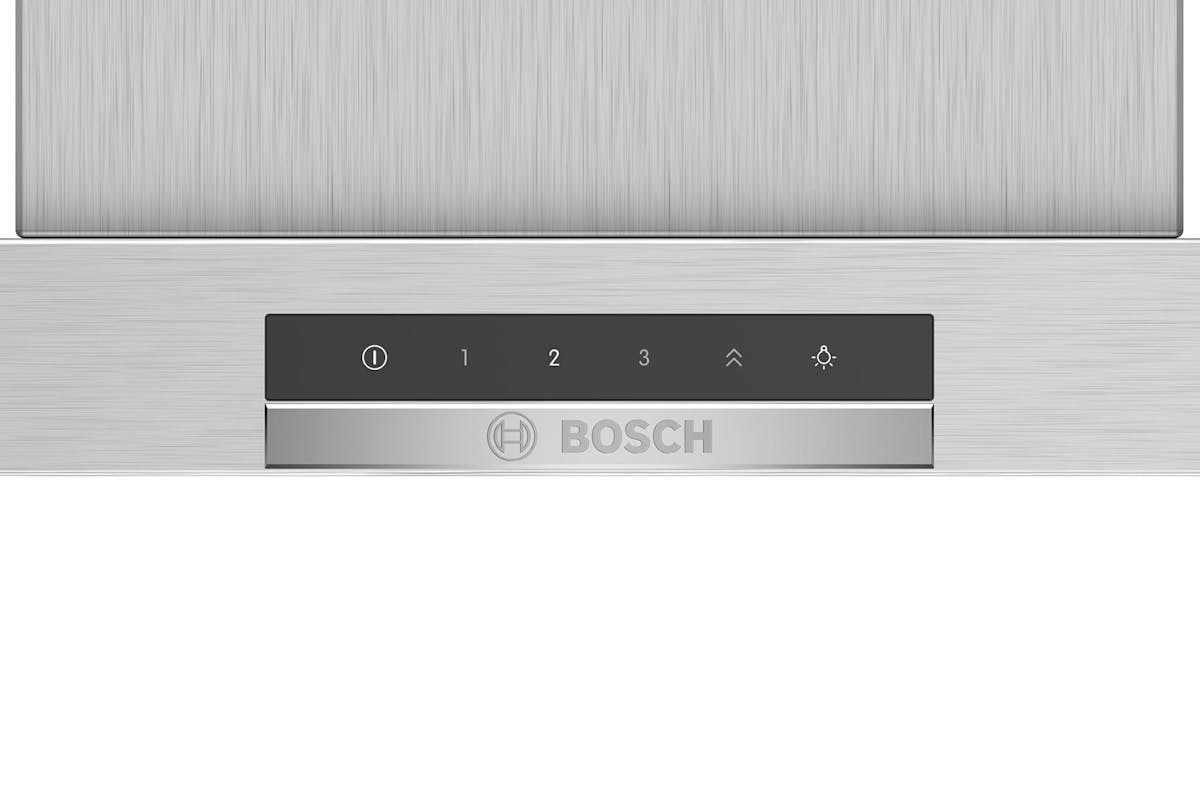

With the new, easy-to-read TouchSelect control, you can directly select from different power levels and high-power settings. There’s also a touch panel for conveniently switching the lights on and off.The Optimum Air Volume for Kitchens of All Sizes
No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be exchanged 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the cooker hood must be appropriate to the room volume.

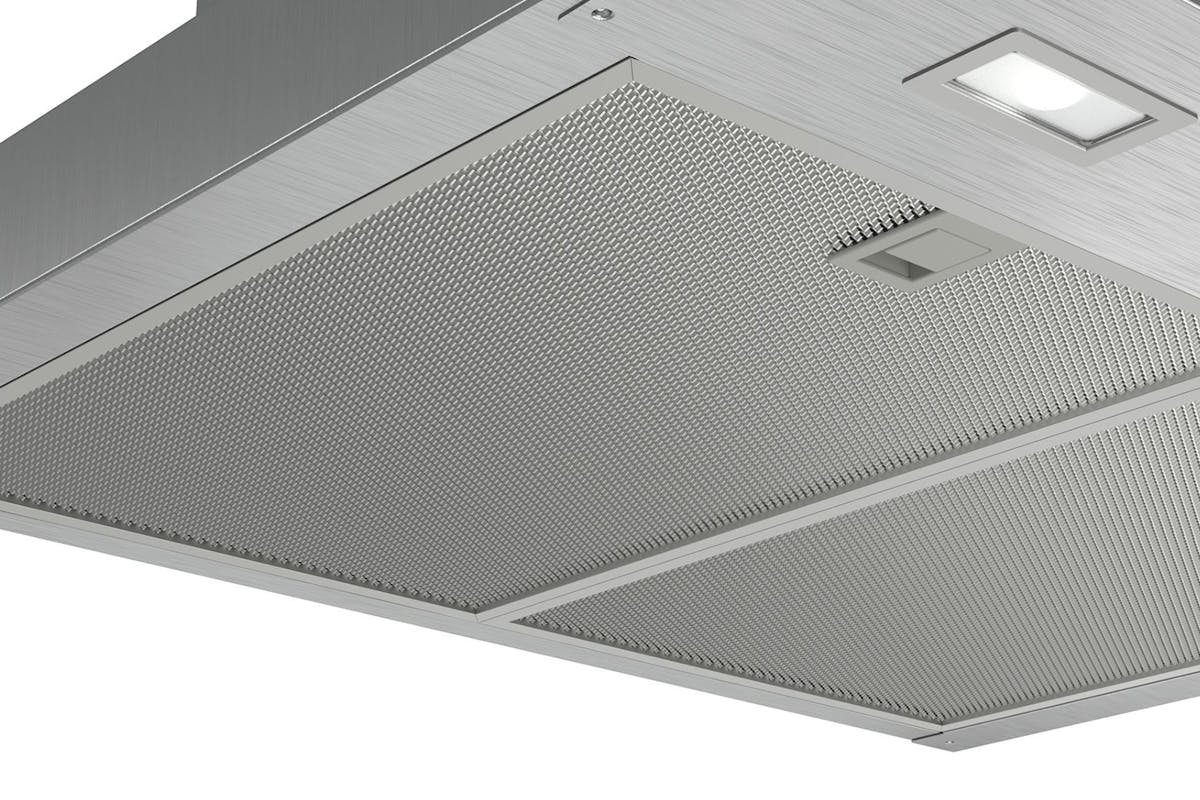

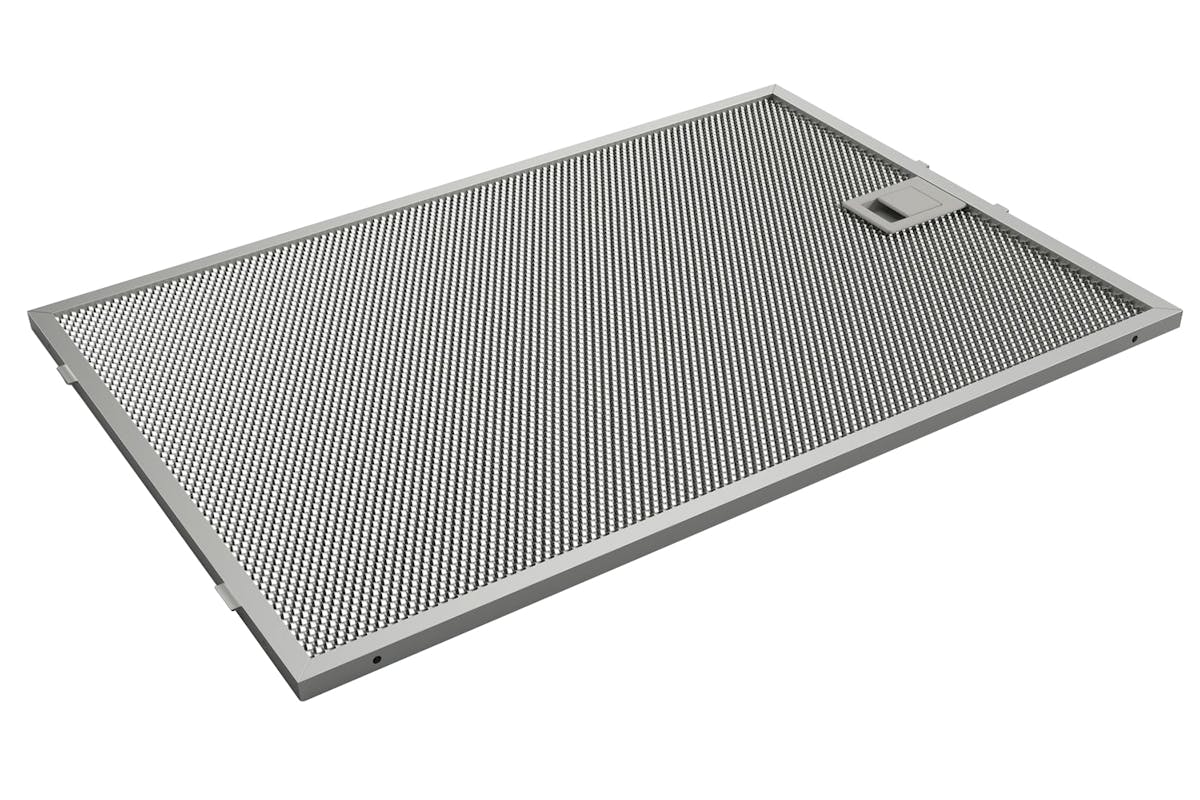

Metal Grease Filter
Ducted and recirculation hoods require metal grease filters to filter grease and other solid particles out of the extracted air. To keep these filters operating at maximum efficiency, clean them about once a month either by hand or in the dishwasher.
LED Illumination: The energy-saving lighting provides bright and clear lighting for the hob area.
Technical Specification:
- Operating mode: Convertible
- Total power of the motors: 215 w
- Type of control setting devices: Ledtouch control
- Max. air extraction: 368 m³/h
- Boost position air extraction: 605 m³/h
- Sound power at max. speed (2010/30/EC): 60 dB
- Sound power boost (2010/30/EC): 69 dB
- Max. air recirculation: 337 m³/h
- Boost position output recirculating: 441 m³/h
- Sound power at max. speed (recirculation): 70 dB
- Sound power boost (recirculation): 74 dB
- Grease filter material: Washable aluminium
- Total annual energy consumption: 48.1 kWh/annum
- Height without worktop/build under: 635-965/635-1075 mm
- Minimum distance above an electric hob: 550 mm
- Minimum distance above a gas hob: 650 mm
- Length electrical supply cord: 130 cm
- Appliance height exhaust air max: 965 mm
- Appliance height exhaust air min: 635 mm
- Appliance height recirculating max: 1,075 mm
- Appliance height recirculating min: 635 mm
- Boost position
- Total luminance: 242 lux
- Colour temperature: Neutral (3.500 k)
- Average illumination of the lighting system on the cooking surface e_middle(2009/125/EC): 242 lux
- Diameter of air outlet: 120 / 150 mm
Key Performance Features:
- Energy efficiency class: B (at a range of energy efficiency classes from a+++ to d)
- Noise max. normal level: 60 dB*
- Extraction rate according to en 61591 ø 15 cm: Max. normal use 368 m³/h, intensive 605 m³/h
Performance/Technical Information:
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or cleanair recirculating kit (accessory) needed
- Max. extraction rate: 605 m3/h
- Noise level according to en 60704-3 and en 60704-2-13 exhaust air: Max. normal use: 60 db(a) re 1 pwintensive: 69 db(a) re 1 pw
- Light intensity: 242 lux
- Electrical cable length 1.3 m
- Diameter pipe ø 150 mm (ø 120 mm enclosed)

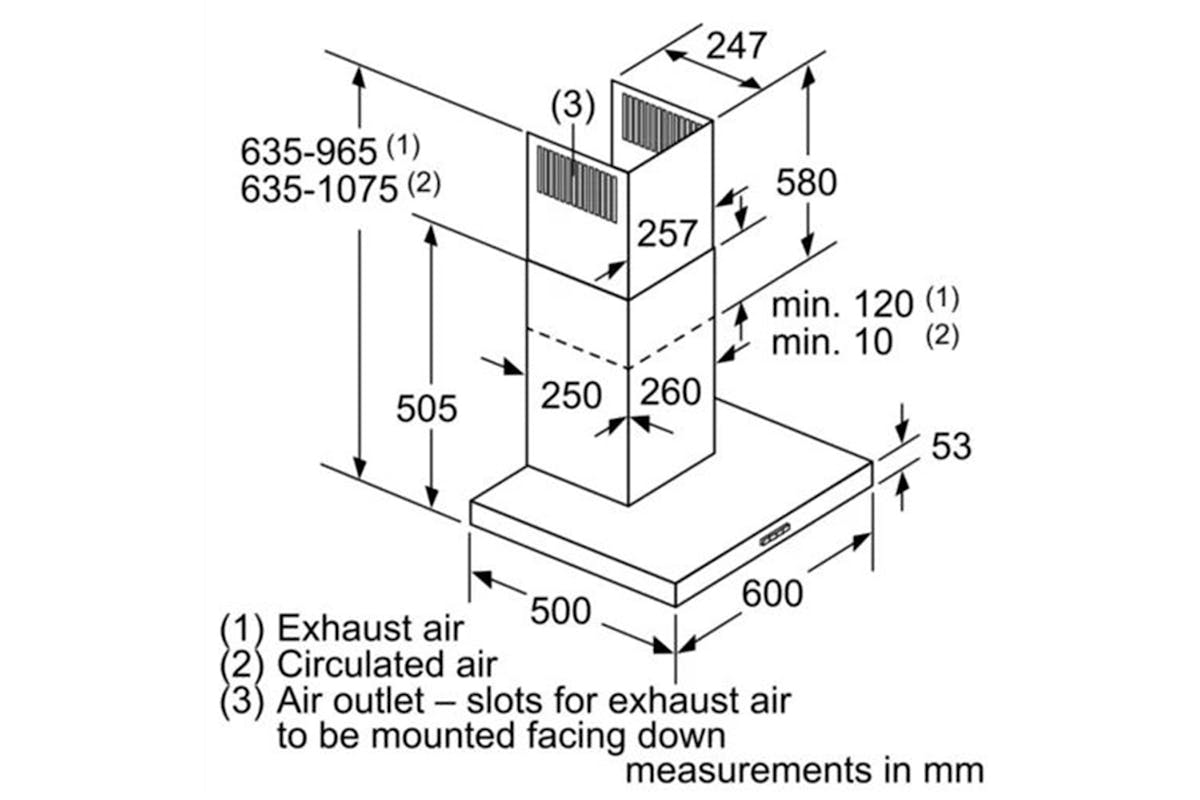

- Dimensions exhaust air (HxWxD): 635-965 x 600 x 500 mm
- Dimensions recirculating (HxWxD): 635-1075 x 600 x 500 mm
- With the clean air plus recirculation kit (available as optional accessory) your appliances reaches: Extraction rate in recirculation mode - max. normal use: 337 m³/h, intensive: 441 m³/h, noise level in recirculation mode - max. normal use: 70 dB(A) re 1 pW, intensive: 74 dB(A) re 1 pW
- Dimensions recirculating with cleanair module (hxwxd): 833-1163 x 600 x 500 mm - mounting with telescopic chimney, 703 x 600 x 500 mm - mounting with outer chimney
- Average energy consumption: 48.1 kWh/year*
- Grease filtering efficiency class: B*
Optional Accessories:
- Recirculating kit dwz0dx0a0
- * in accordance with the EU-regulation no 65/2014
Product Features:
- Especially silent: Maximum hood performance, minimum noise
- Grease filtration level: Filters out over 85% of the grease from kitchen air
- Touchselect control: Quickly select hood settings via touch
- Intensive speed setting: Removes strong kitchen odours quickly and effectively
- Touch control with electronic display
- Colour temperature: 3500 k
- 2 metal grease filter cassettes
- Designed for wall mounted installation
- Automatic intensive revert (6mins)
- 2 x 1.5w led light
Specifications
-
Brand
- Bosch
Dimensions
-
Weight
- 11.8 kg
-
Width
- 600 mm
-
Depth
- 500 mm
-
Height
- 1022 mm
Hood Features
-
Ventilation Included
- Ducted
- Recirculated
-
Fan Speeds
- 3
-
Max. Air Movement
- 605 m3/h
-
Max. Decibel Rating
- 60 dB
-
Filter Type
- Grease
- Cassette
-
Filter Numbers
- 2
-
Filter Material
- Aluminium
- Metal
-
Fan Control
- Touch control
-
Light Control
- Touch
-
Light Numbers
- 2
-
Light Type
- LED
-
Hood Type
- Wall Mounted
General
-
Product Type
- Cooker Hood
-
Product Colour
- Stainless Steel
-
Product Category
- Home Appliances
Cooker and Range Hoods Filter Spec
-
Colour
- Stainless Steel
-
Brand Name
- Bosch
-
Width
- 600 mm
-
Depth
- 500 mm
-
Max Extraction
- 368 m3/h
-
Venting Type
- Ducting or Recirculation
-
Energy Rating (Cooker & Range)
- B
-
Range Hood Type
- Wall Mounted
